ZINTRA® HARDWARE

4 WAY ADJUSTABLE CABLE KIT

DIMENSIONS 5’ (1524mm)
FINISH Brushed stainless steel
NOTES Kit includes: Steel Cable, 2x leg cables with toggle end, Barrel Fixing, Anchor Bolt & Adjustable 4-way splitter
USED WITH Baffles Connect Cubix, Hive, Prismatic and Turbine Cloud

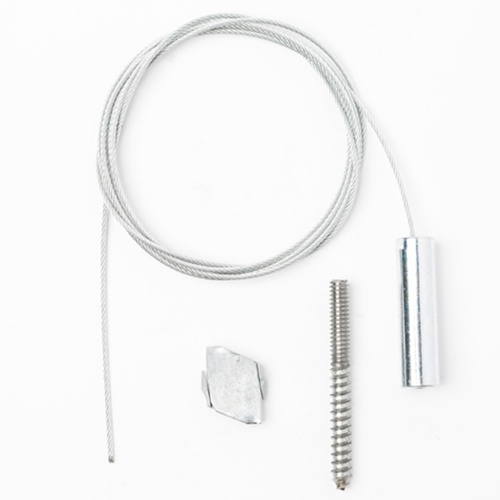

ADJUSTABLE CABLE KIT

DIMENSIONS 5’ (1524mm)
FINISH Silver
NOTES Kit includes: 5’ Steel cable, barrel fixing, anchor bolt and adjustable toggle.
USED WITH Baffles – Individual & Systems, Clouds, Connect & Shapes

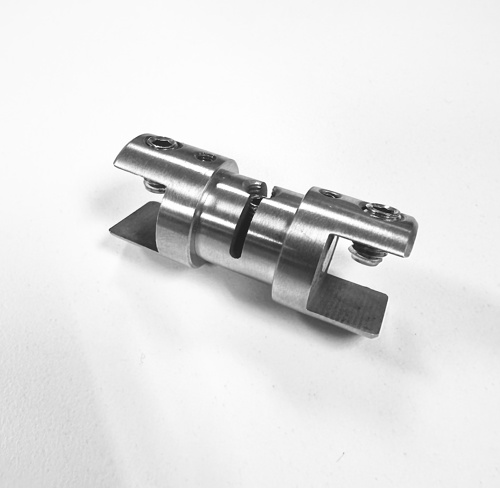

CABLE SIDE GRIPPER DOUBLE

FINISH Brushed Stainless Steel
NOTES Requires Floor to Ceiling Cable Kit (sold separately)
Compatible with Zintra 1/2” (12mm) Sheets only.
USED WITH Floor to Ceiling
CABLE SIDE GRIPPER SINGLE

FINISH Brushed Stainless Steel
NOTES Requires Floor to Ceiling Cable Kit (sold separately)
Compatible with Zintra 1/2” (12mm) Panels only.
USED WITH Floor to Ceiling

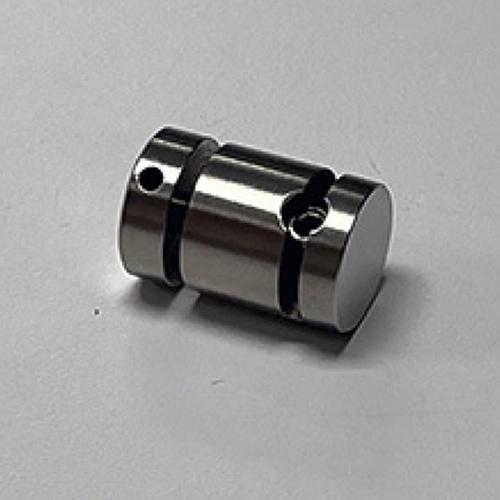

CABLE STANDOFF

FINISH Brushed Stainless Steel
NOTES Requires Floor to Ceiling Cable Kit (sold separately)
Compatible with Zintra ½” (12mm) Sheets only & an extended head is available to suit 1” (24mm) Sheets
Use with Standoff Extendeed Head to hold Zintra 1/2” Sheets
USED WITH Floor to Ceiling
CLAMSHELL CLAMP LARGE

COLOR White
NOTES Compatible with 1” (24mm) Zintra Acoustic Solutions
USED WITH Desk Screen
CLAMSHELL CLAMP SMALL

COLOR White
NOTES Compatible with ½” (12mm) Zintra Acoustic Solutions
USED WITH Desk Screen & Desk Wrap Screen

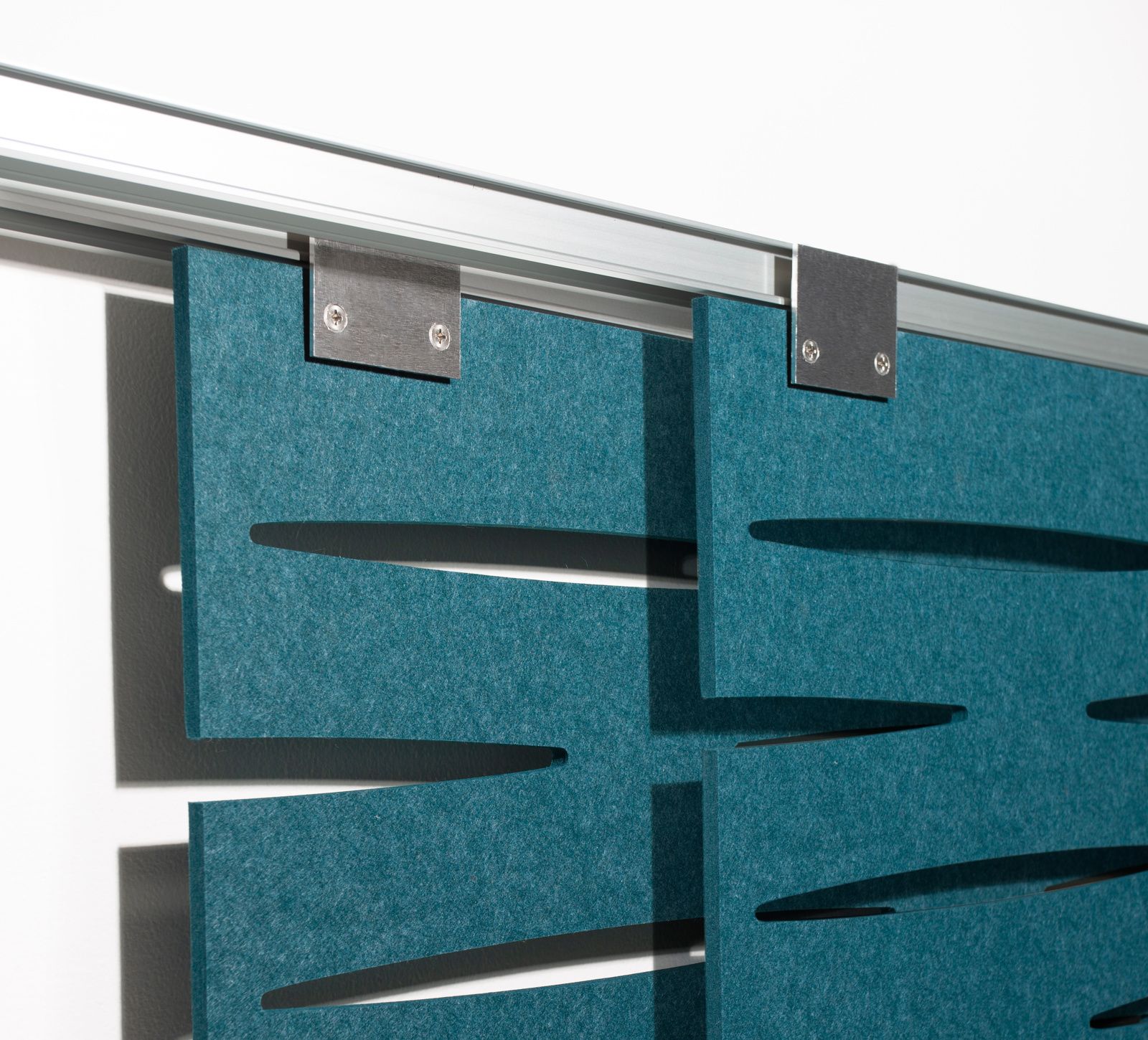

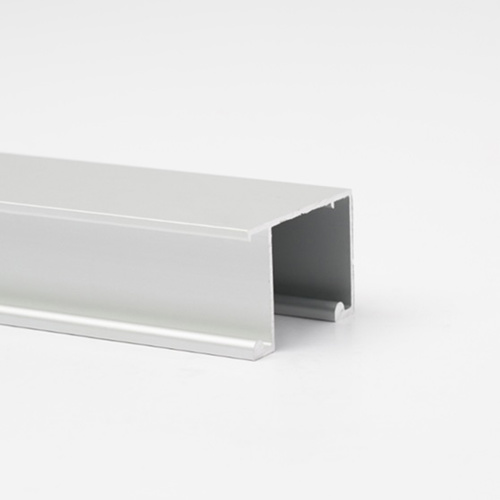

DOUBLE SLIDING TRACK

DIMENSIONS – 1.4” (35 mm) x 2.2” (56mm) x 96” (2438mm)
FINISH Satin Aluminum
USED WITH Sliding Track
FLOOR TO CEILING CABLE KIT

DIMENSIONS 13’1” (4000mm) Cables
FINISH Silver
NOTES Requires Side Gripper Single, Side Gripper Double or Cable Standoff (sold separately)
USED WITH Floor to Ceiling

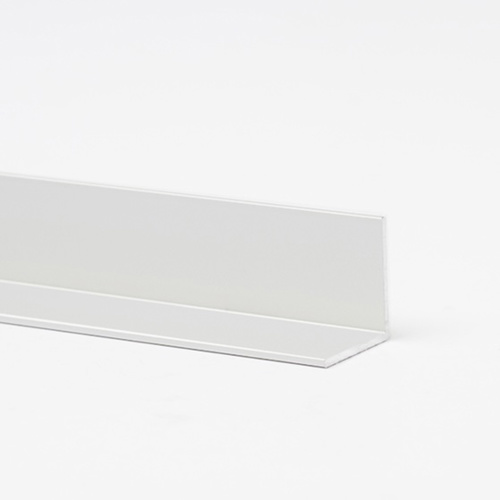

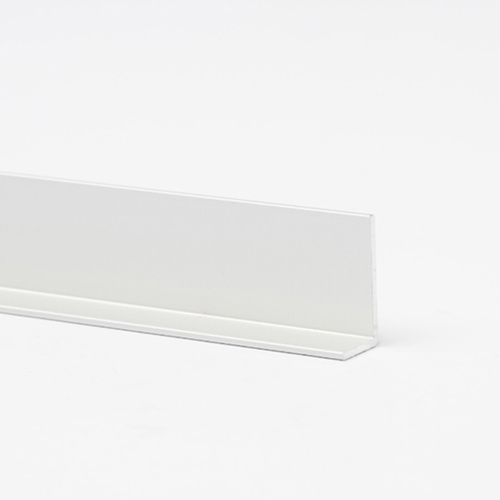

L – BRACKET

FINISH White
NOTES Compatible with 1” (24mm) thick Zintra acoustic solutions
USED WITH Desk Modesty & Desk Wrap Modesty
TWIST CLIP LOOP

FINISH White
NOTES Compatible with 15”/16” ceiling grid
Requires S-Hook (sold separately)
USED WITH Baffle Individual

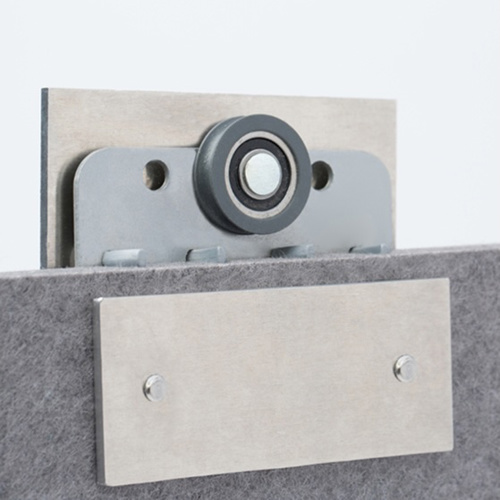

ROLLER KIT

FINISH Stainless Silver
NOTES Minimum of (2) Roller Kit required for panels 48” (1220mm) wide or less. (3) Roller Kit required for panels wider than 48” (1220mm)
Requires Double Sliding Track (sold separately) & kit includes roller and fixing plate
USED WITH Sliding Track

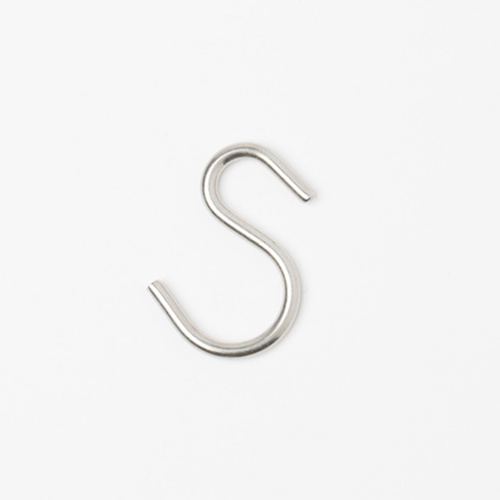

S-HOOK

FINISH Silver
NOTES Requires Twist Clip – Loop or Twist Clip – Swive
USED WITH Individual Baffle – Hook

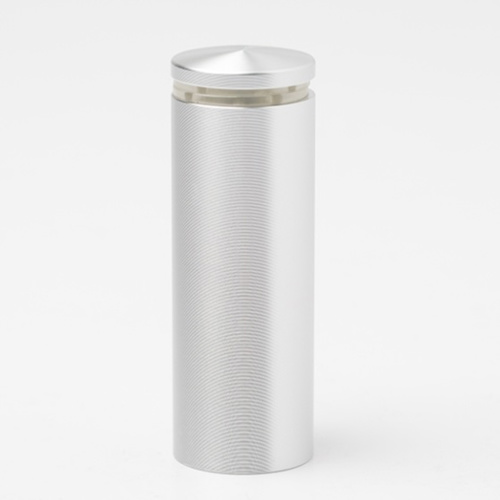

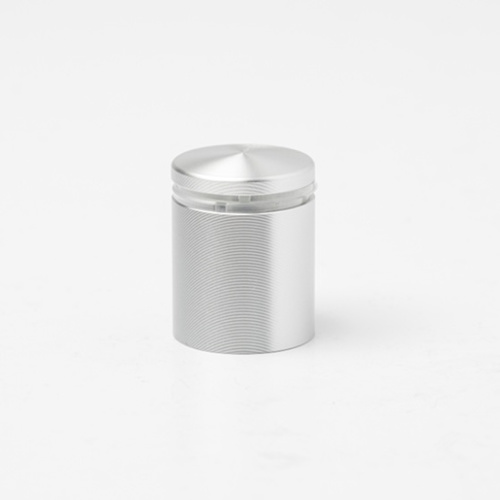

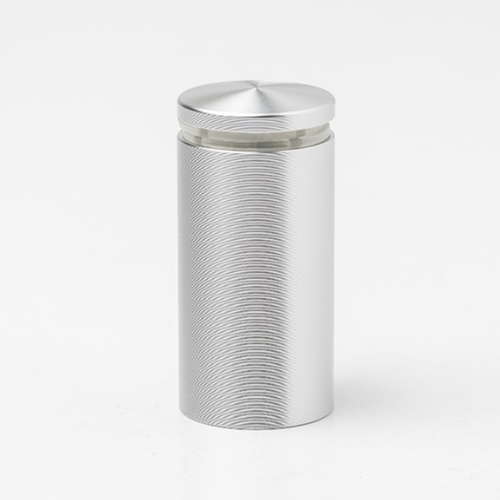

STANDOFF – 1” (25mm)

FINISH Brushed Stainless Steel
NOTES Compatible with Zintra Acoustic Solutions up to 1” (24mm) thick
USED WITH Sheets, Patterns & Etch
STANDOFF - 1.75” (45mm)

FINISH Brushed Stainless Steel
NOTES Compatible with Zintra Acoustic Solutions up to 1” (24mm) thick
USED WITH Sheets, Patterns & Etch
STANDOFF – 2.5” (65mm)

FINISH Brushed Stainless Steel
NOTES Compatible with Zintra Acoustic Solutions up to 1” (24mm) thick
USED WITH Sheets, Patterns & Etch
SQUARE TUBE 1” (25mm) X 1” (25mm)

DIMENSIONS 1” (25mm) x 1” (25mm) x 110” (2795mm)
FINISH Baffles & Blades
TWIST CLIP LOOP

FINISH White
NOTES Compatible with 15”/16” ceiling grids
Requires S-Hook (sold separately)
USED WITH Baffle Individual

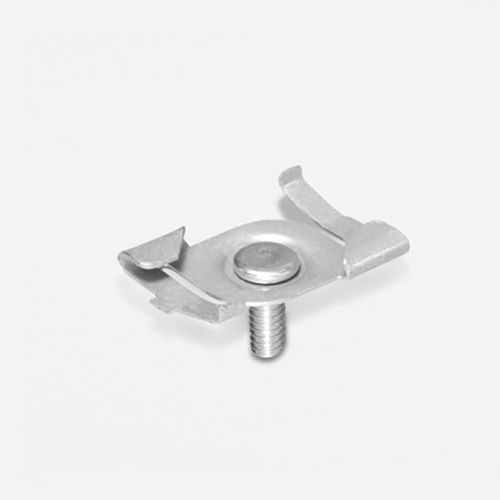

TWIST CLIP THREADED

FINISH Silver
NOTES Compatible with 15”/16” ceiling grids
Requires Adjustable Cable Kit (sold separately)
USED WITH Baffle Systems, Baffles Individual, Clouds & Shapes

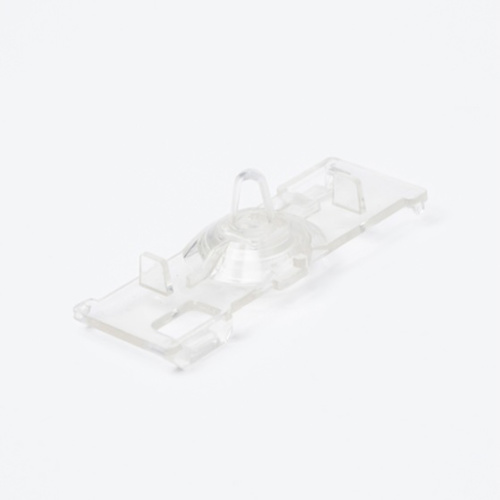

TWIST CLIP SWIVEL

FINISH Clear
NOTES Compatible with 15”/16” ceiling grids
Requires S-Hook (sold separately)
USED WITH Individual Baffle – Hook
U-CHANNEL

DIMENSIONS 0.5” (12mm) x 0.5” (12mm) x 108” (2745mm)
FINISH Satin Aluminum
NOTES Compatible with ½” (12mm) thick Zintra Acoustic Solutions
USED WITH Baffles Individual
Z-CLIPS

DIMENSION 1.5” (38mm) or 72” (1829mm)
FINISH Aluminium mill finish
NOTES Sold as pairs
USED WITH Sheets, Etch & Patterns
