ZINTRA
SHEETS
WHAT ARE ZINTRA® ACOUSTIC ½” SHEETS? Zintra® Acoustic ½” Sheets are the perfect solution for your application where sound reduction as well as aesthetics are required. Zintra’s® wide range of colors and ease of use make it the ideal material for commercial, hospitality, educational and institutional projects.
SPECIFICATIONS
CONTENT: 100% Polyester
ACOUSTIC RATING: 0.45-0.90 NRC
SIZE / THICKNESS
4’ x 9’ x ½” / 1220mm x 2745mm x 12mm
SURFACE FINISH: Matte
WEIGHT: 0.5 lb / ft² / 2.4 kg - 4.8 kg / m²

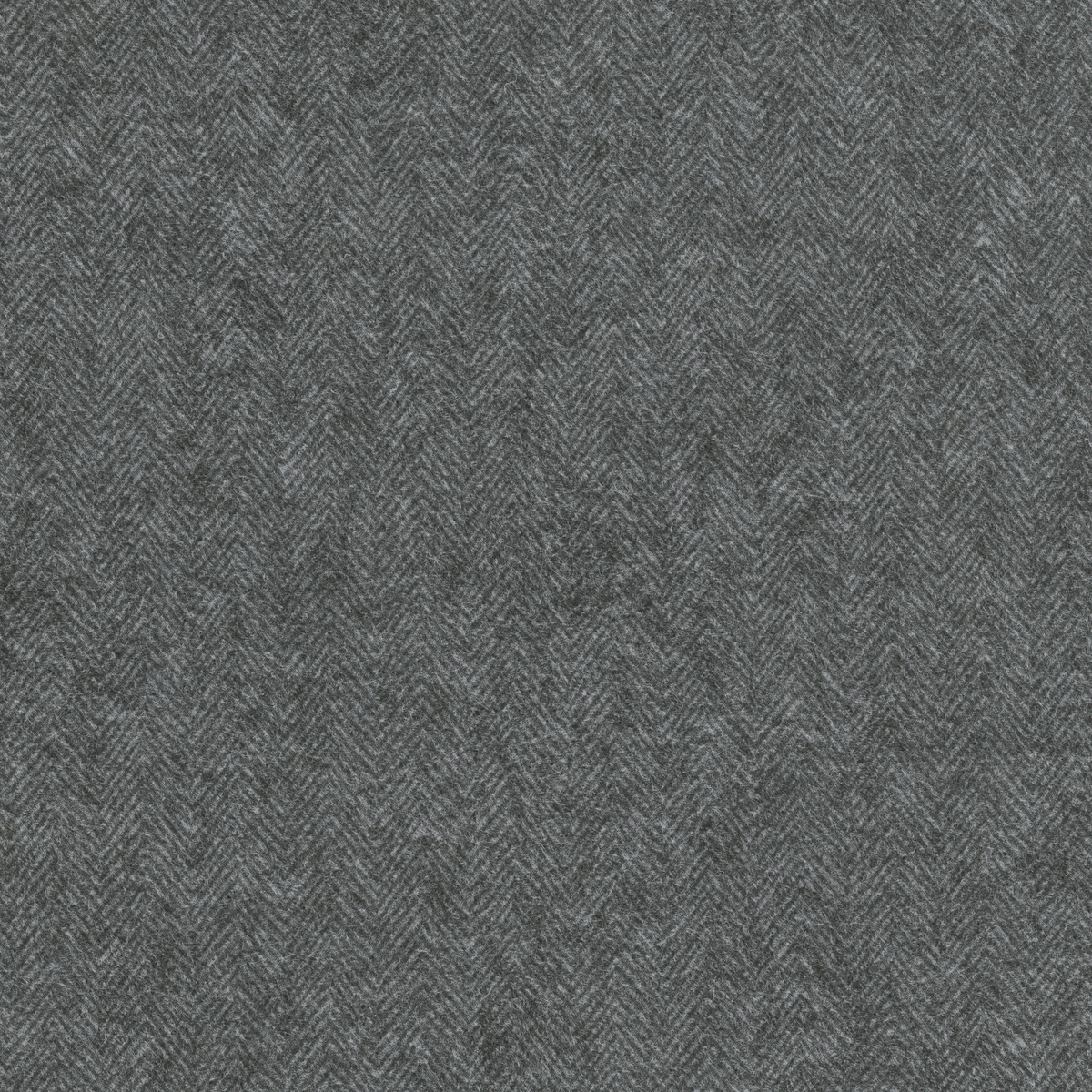

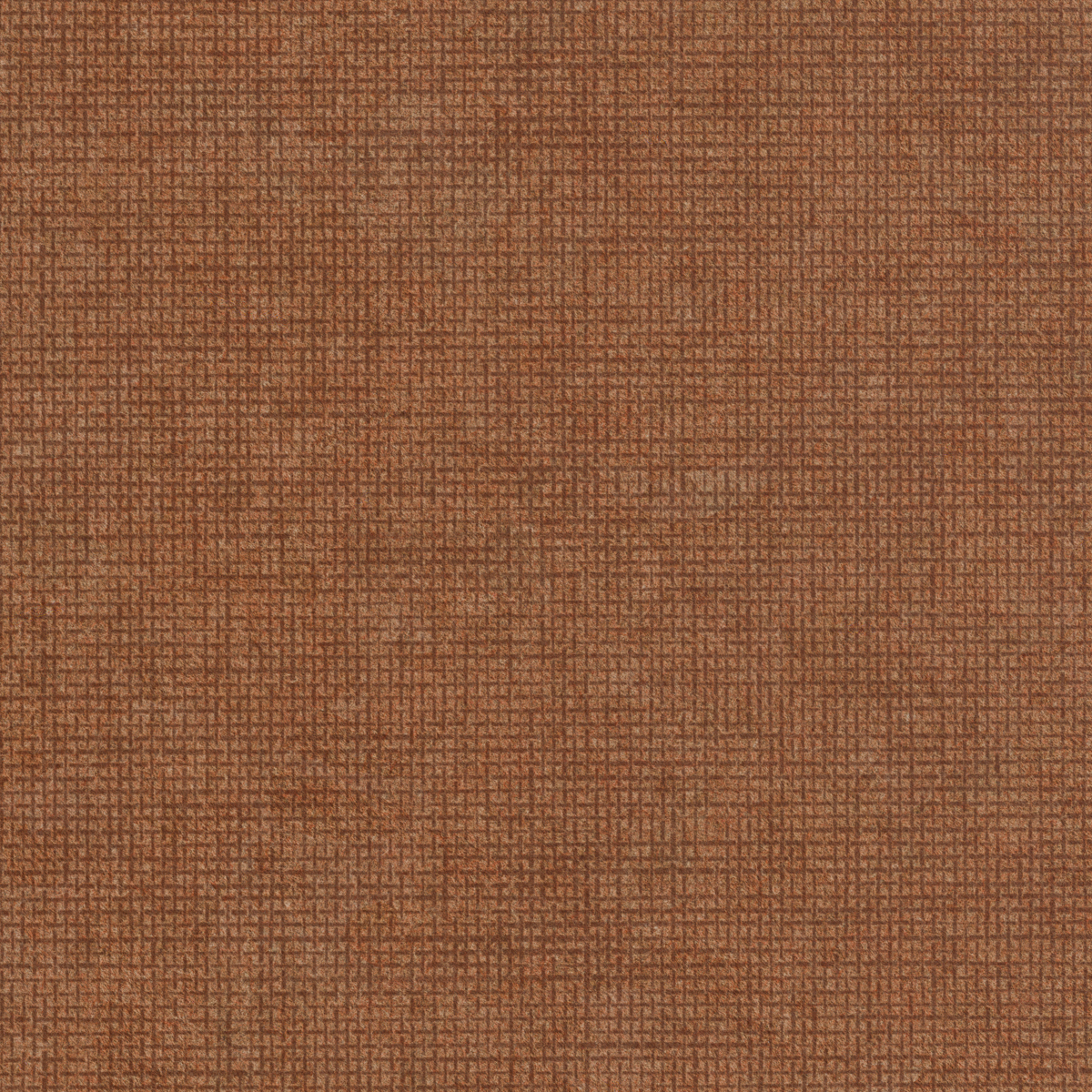

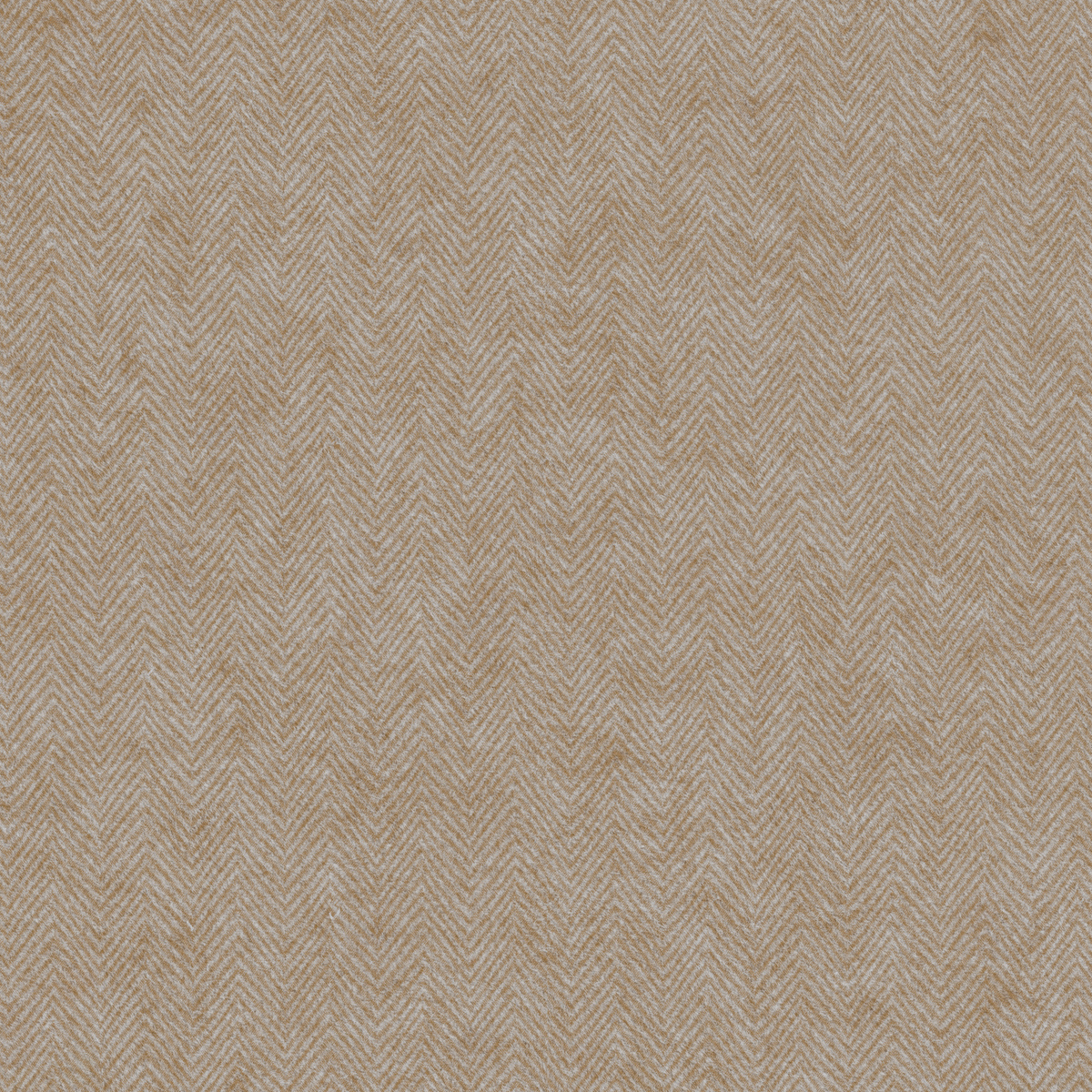

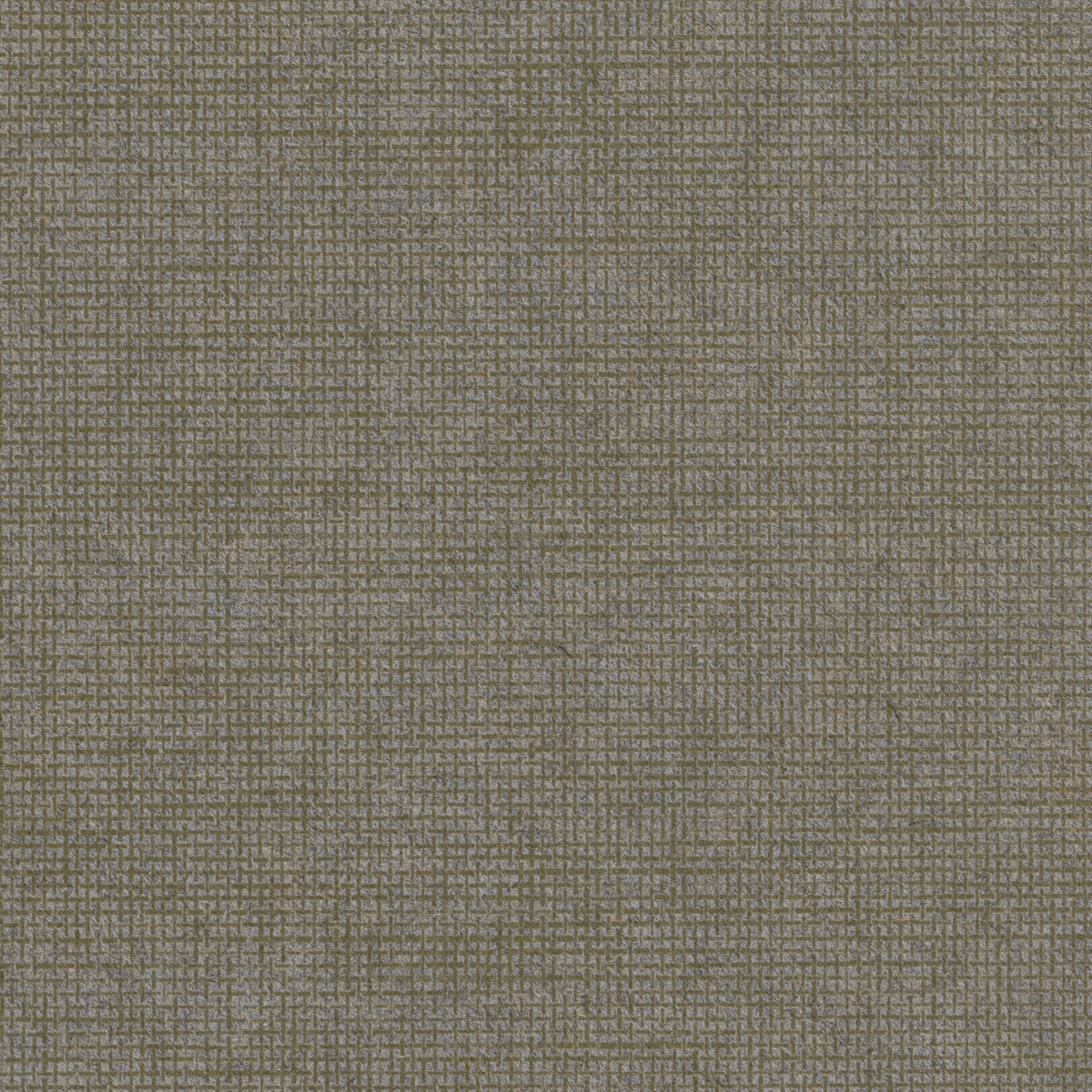

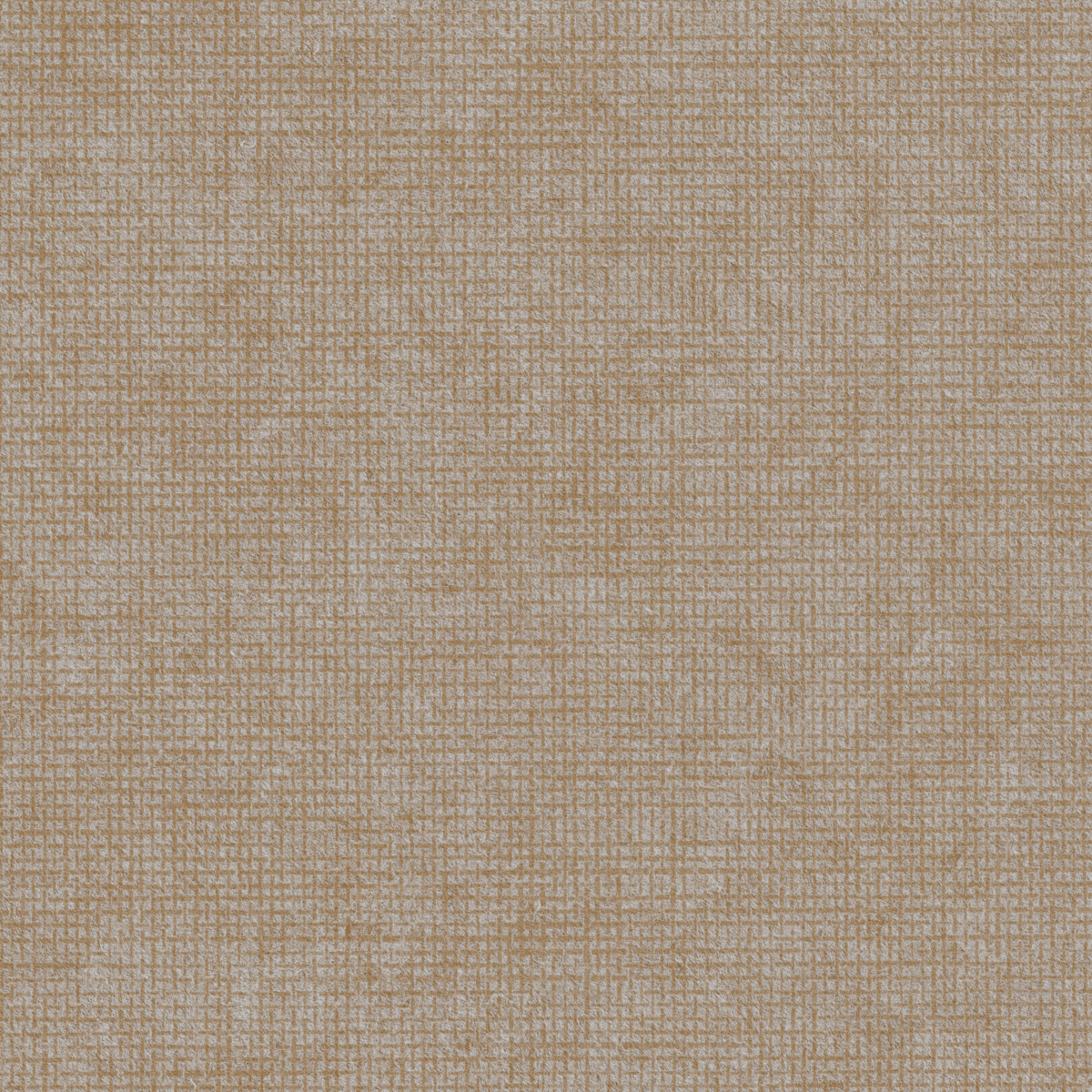

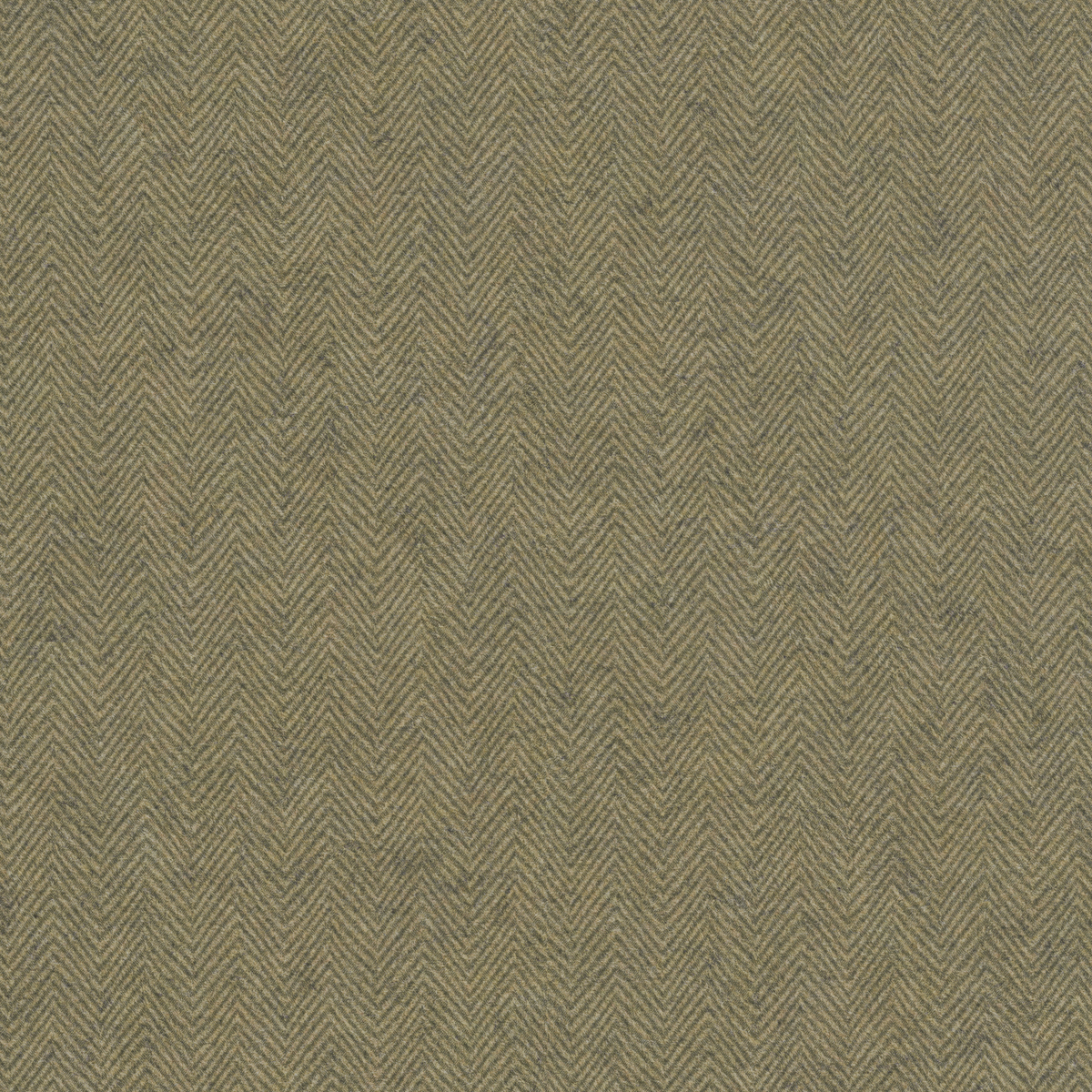

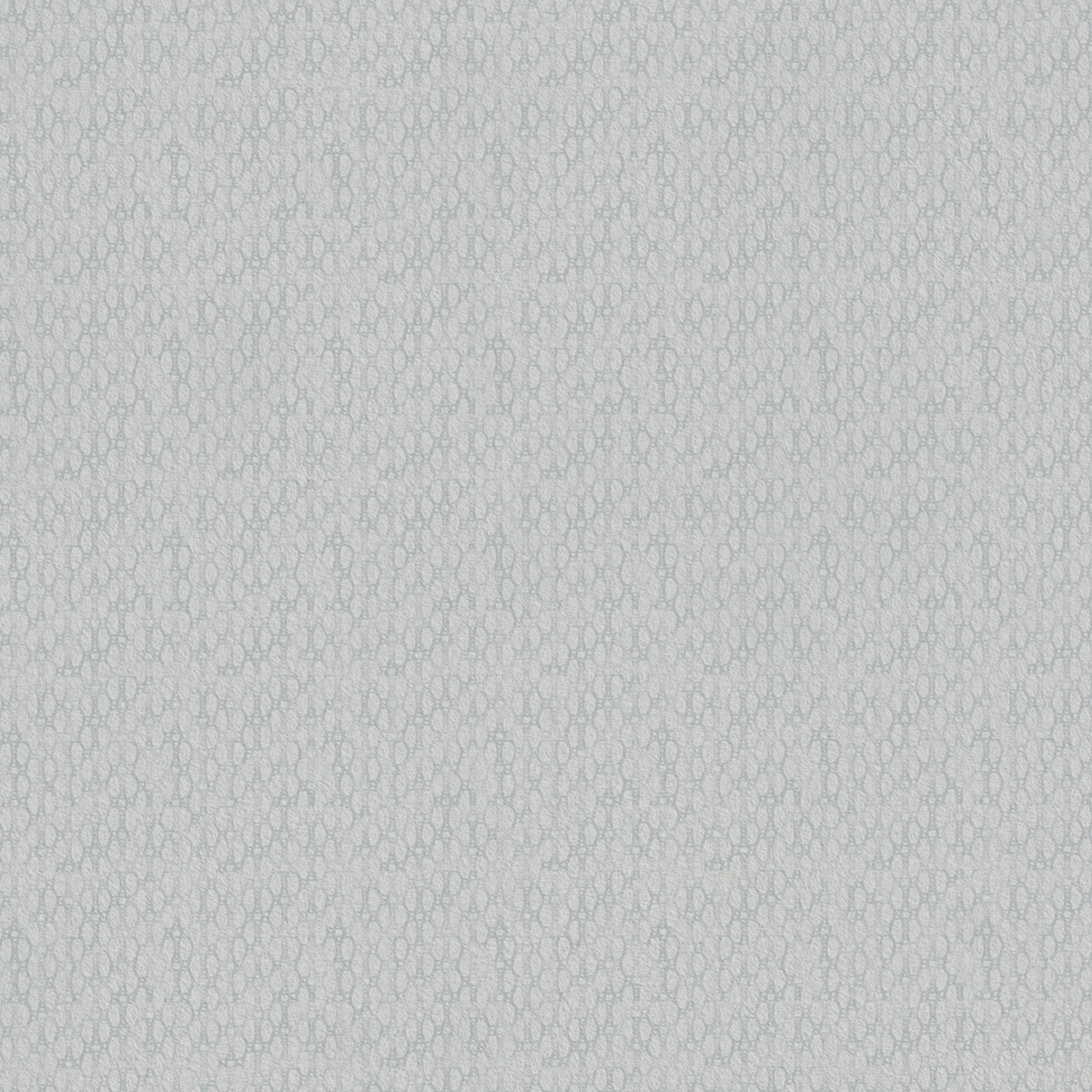

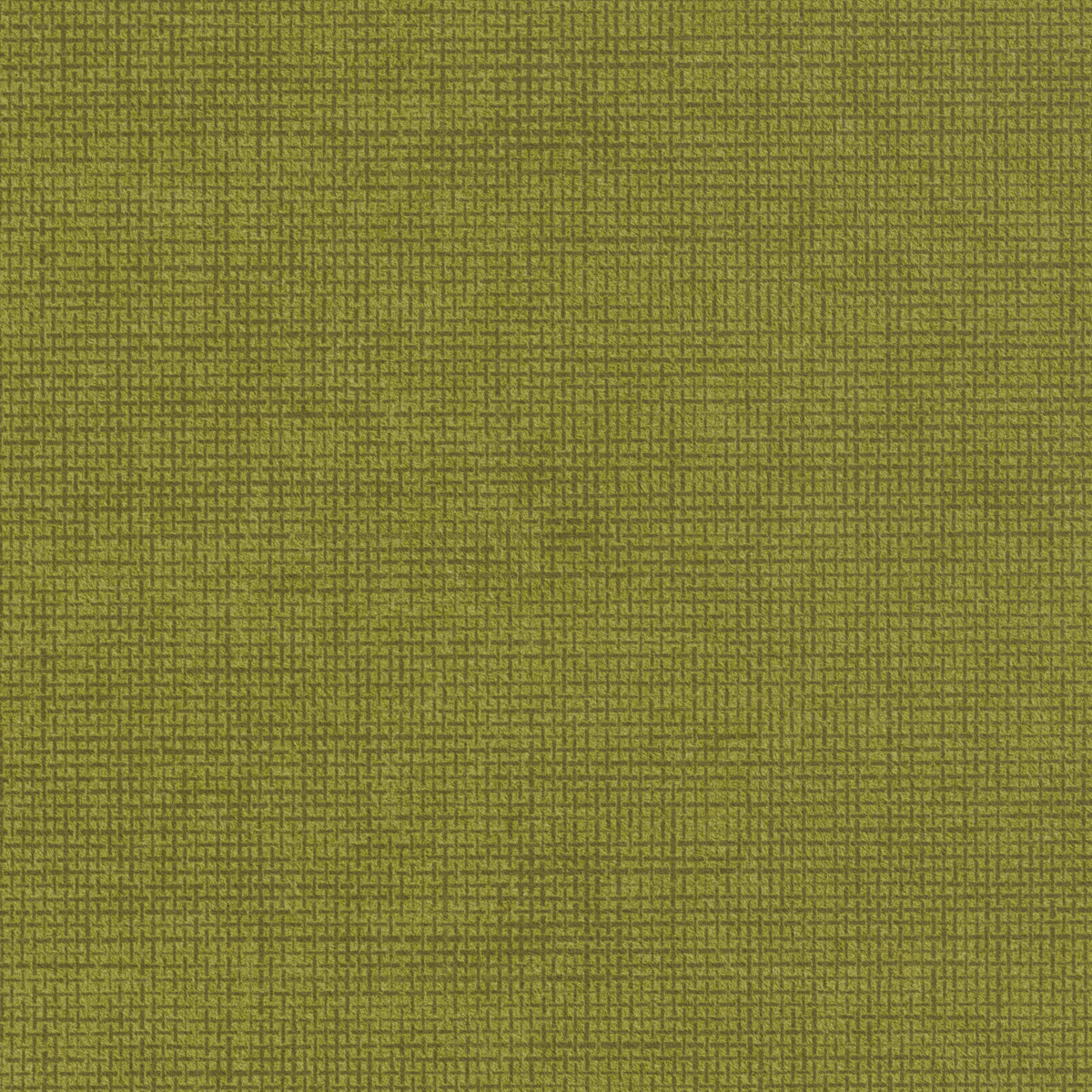

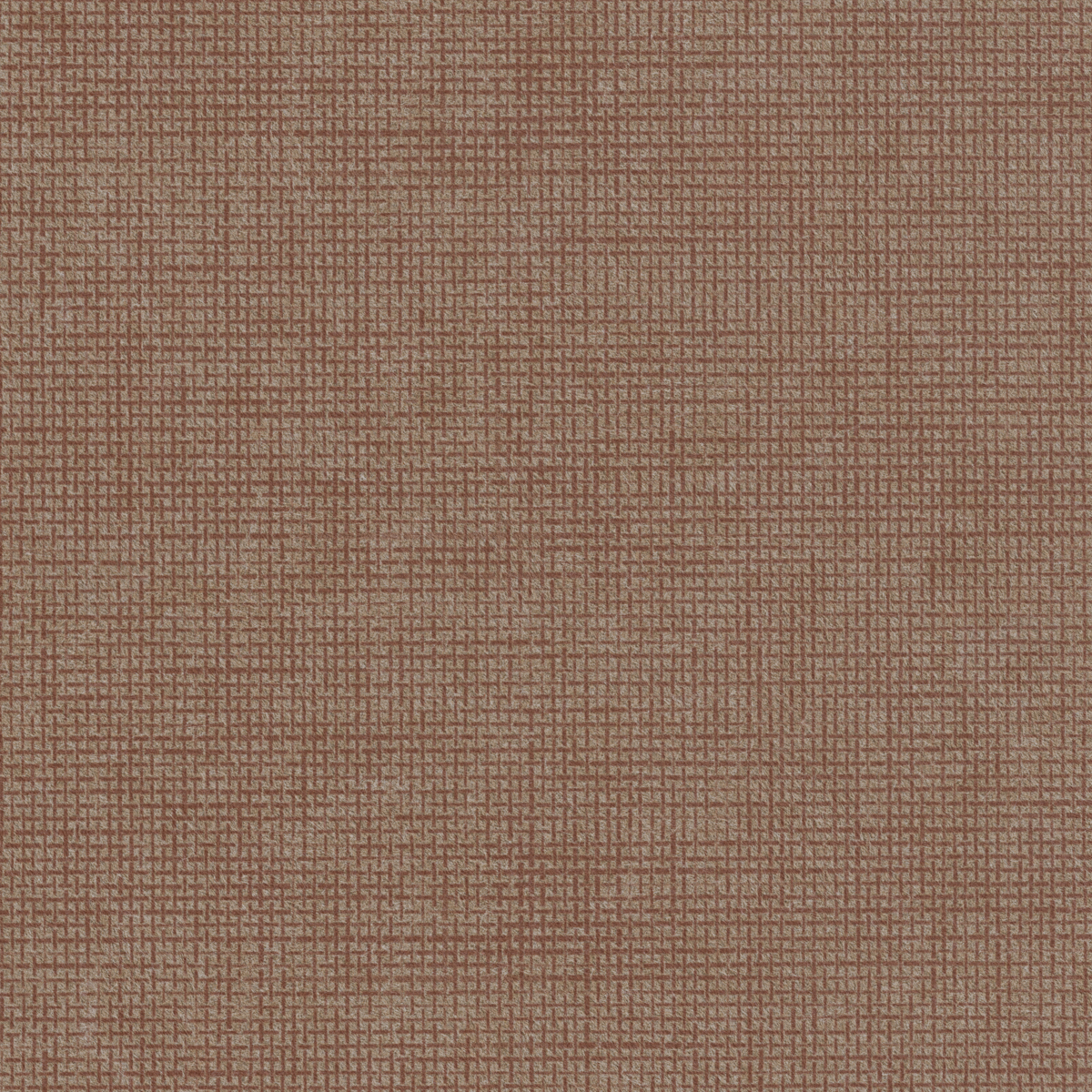

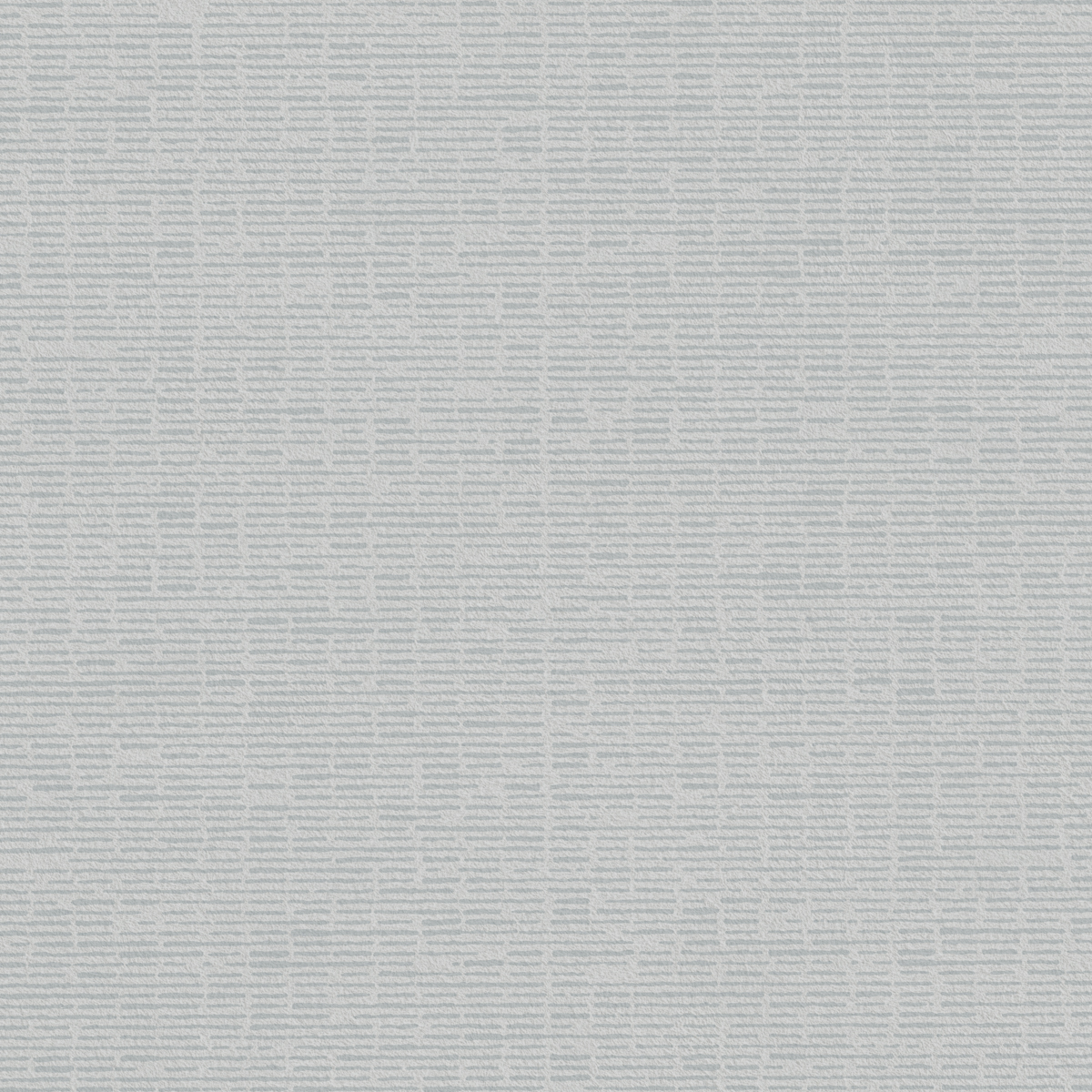

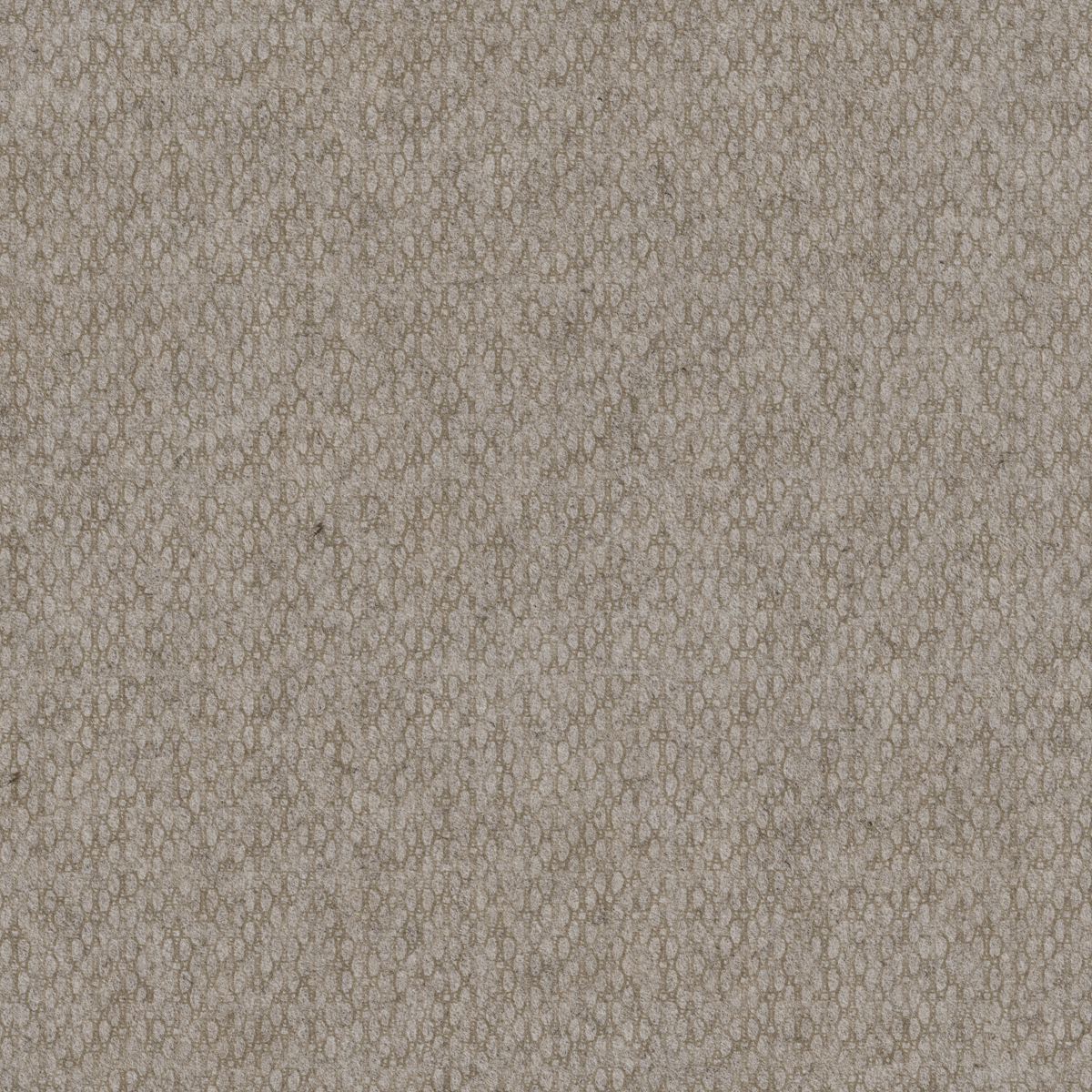

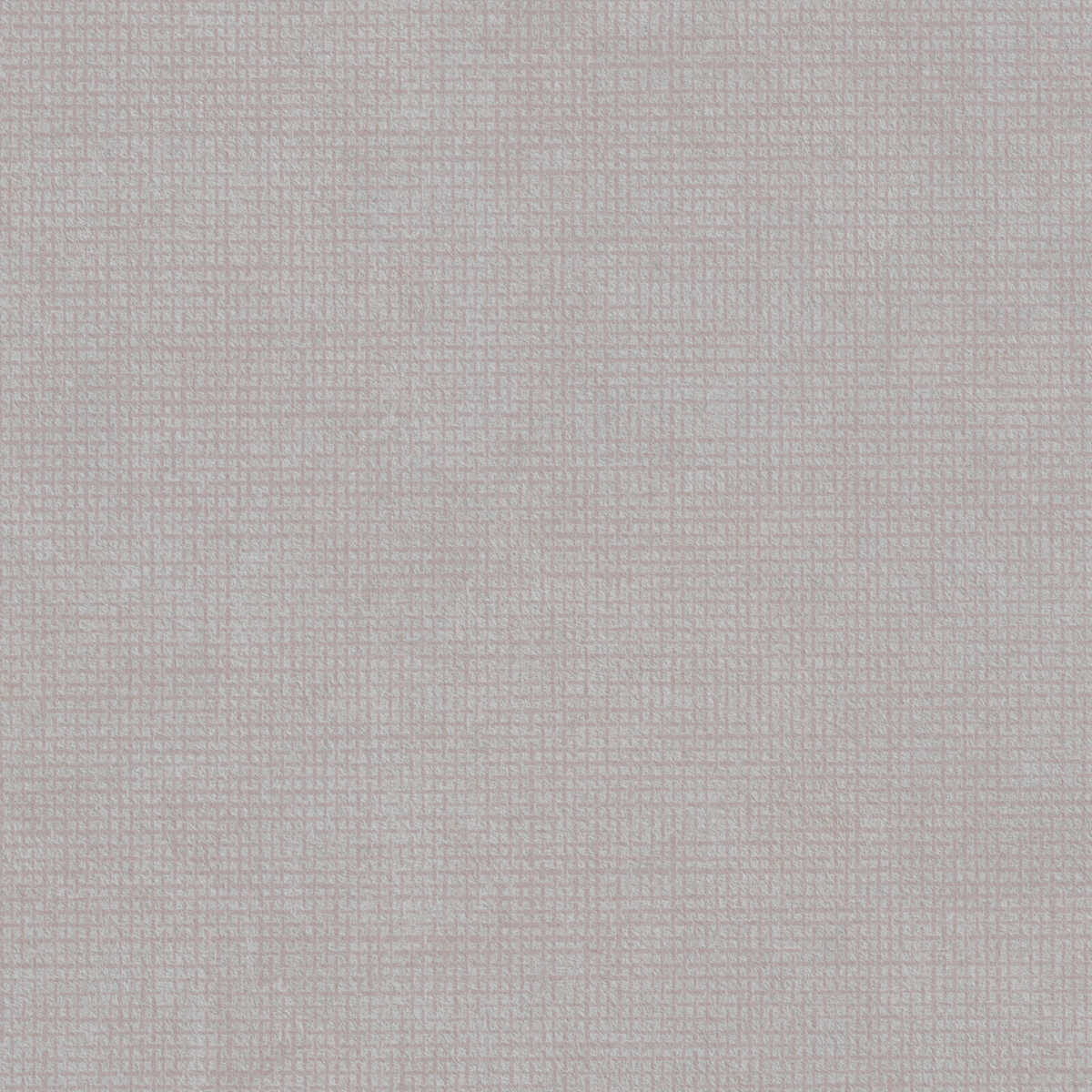

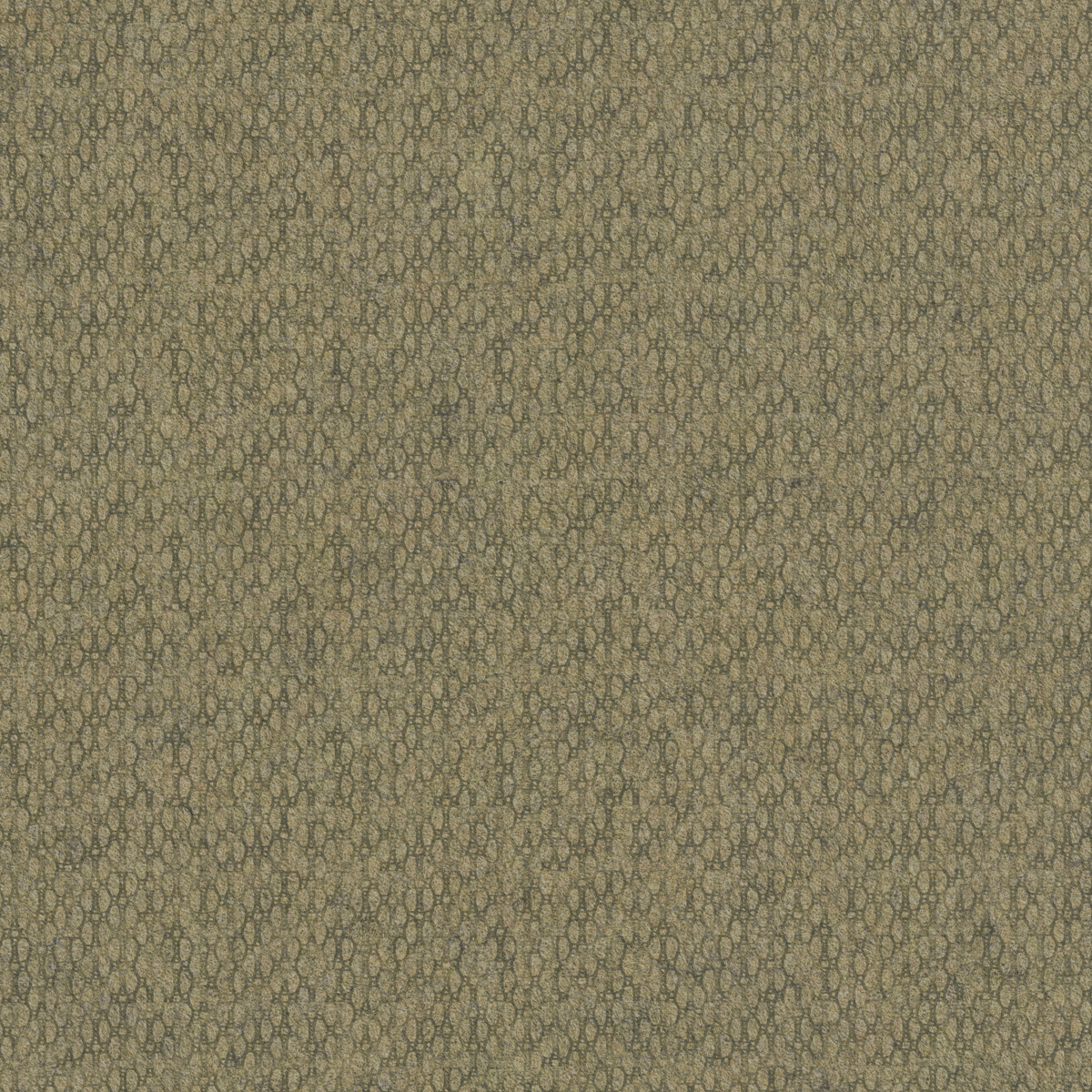

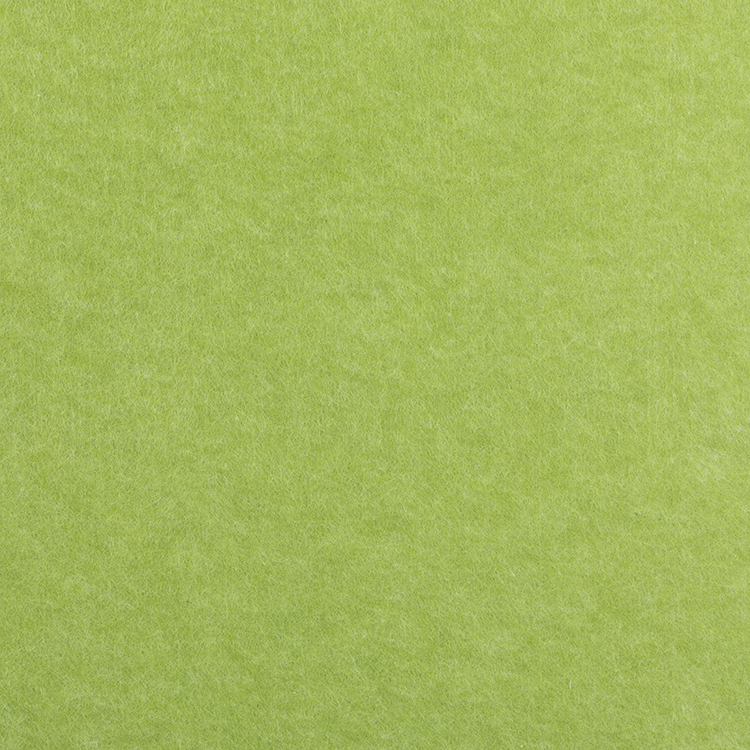

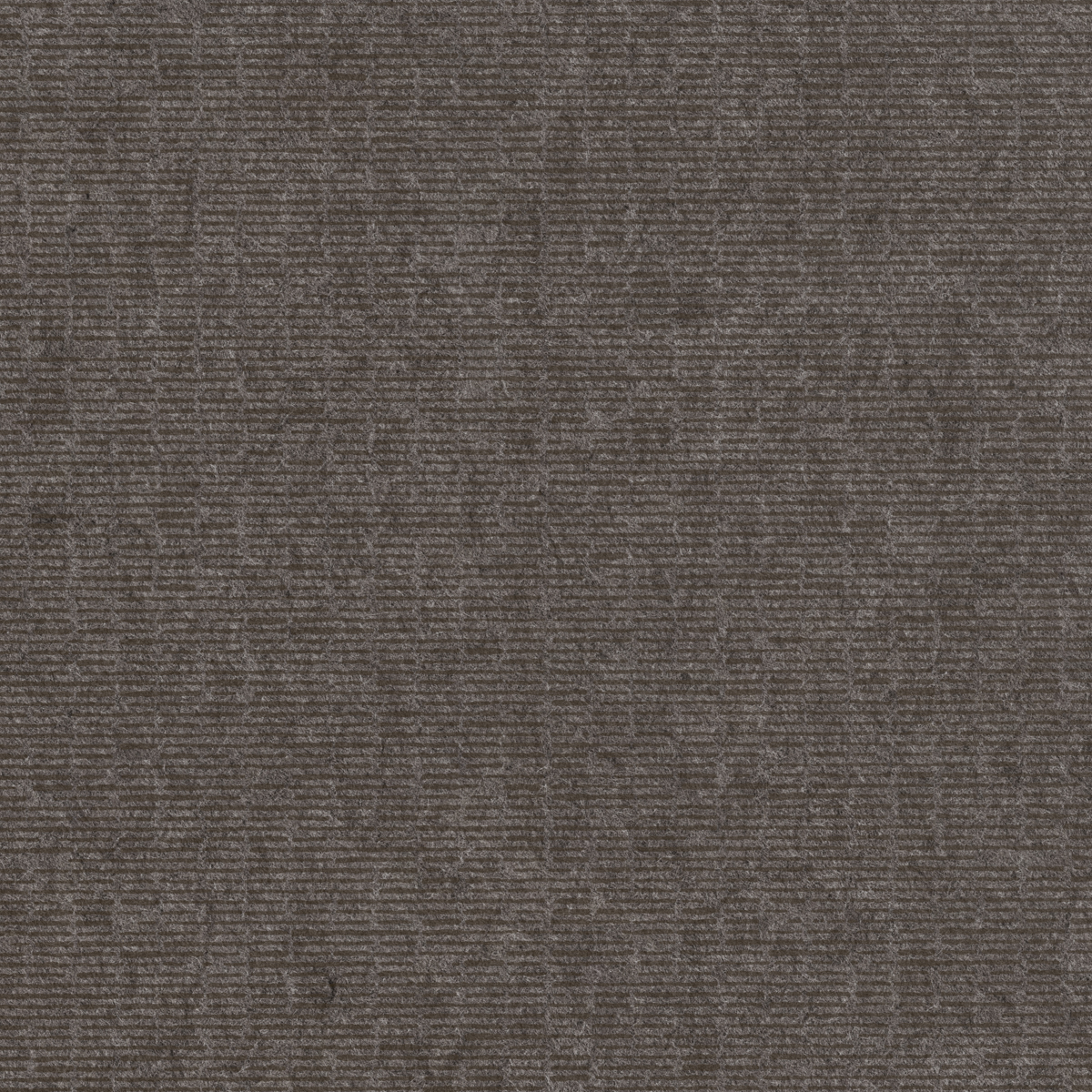

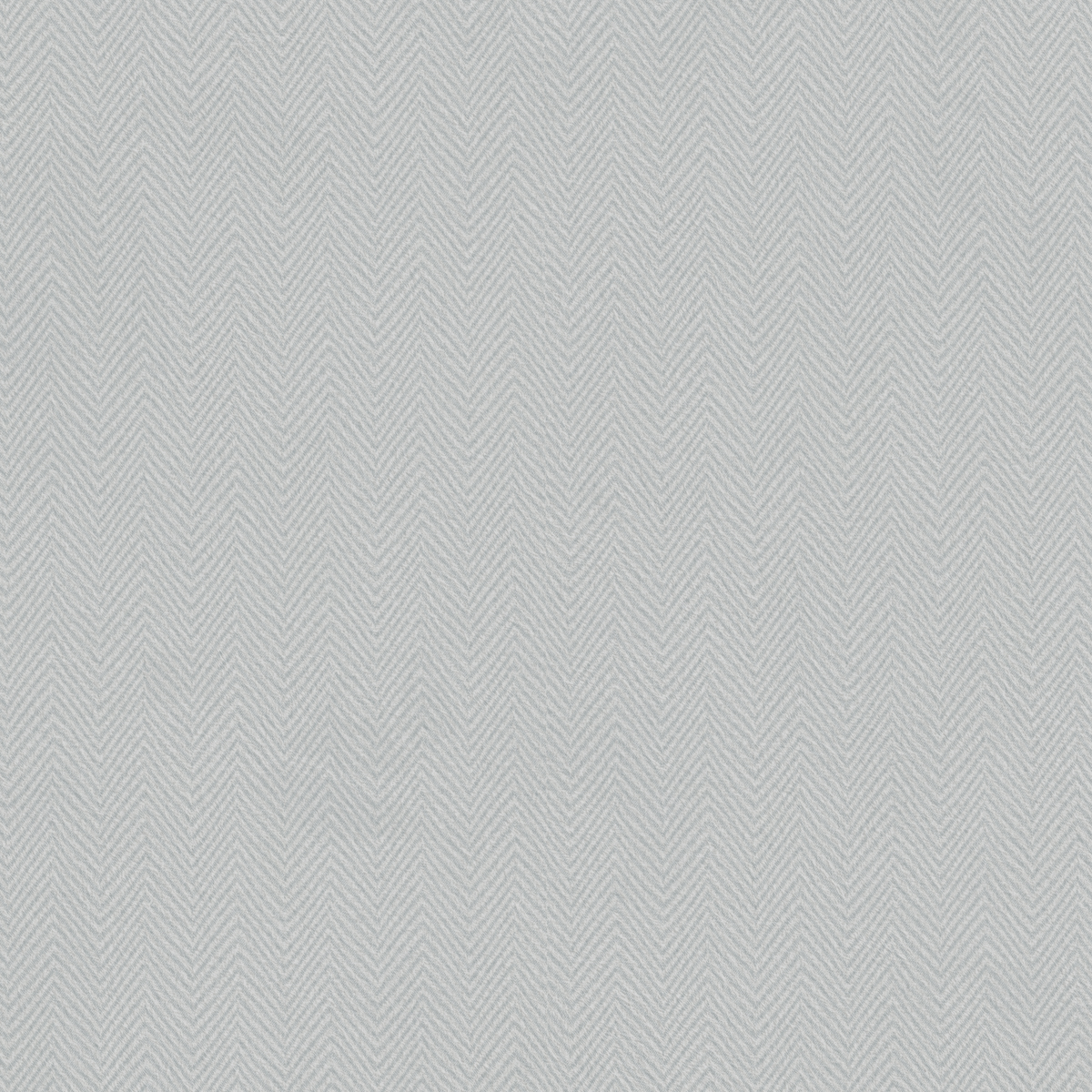

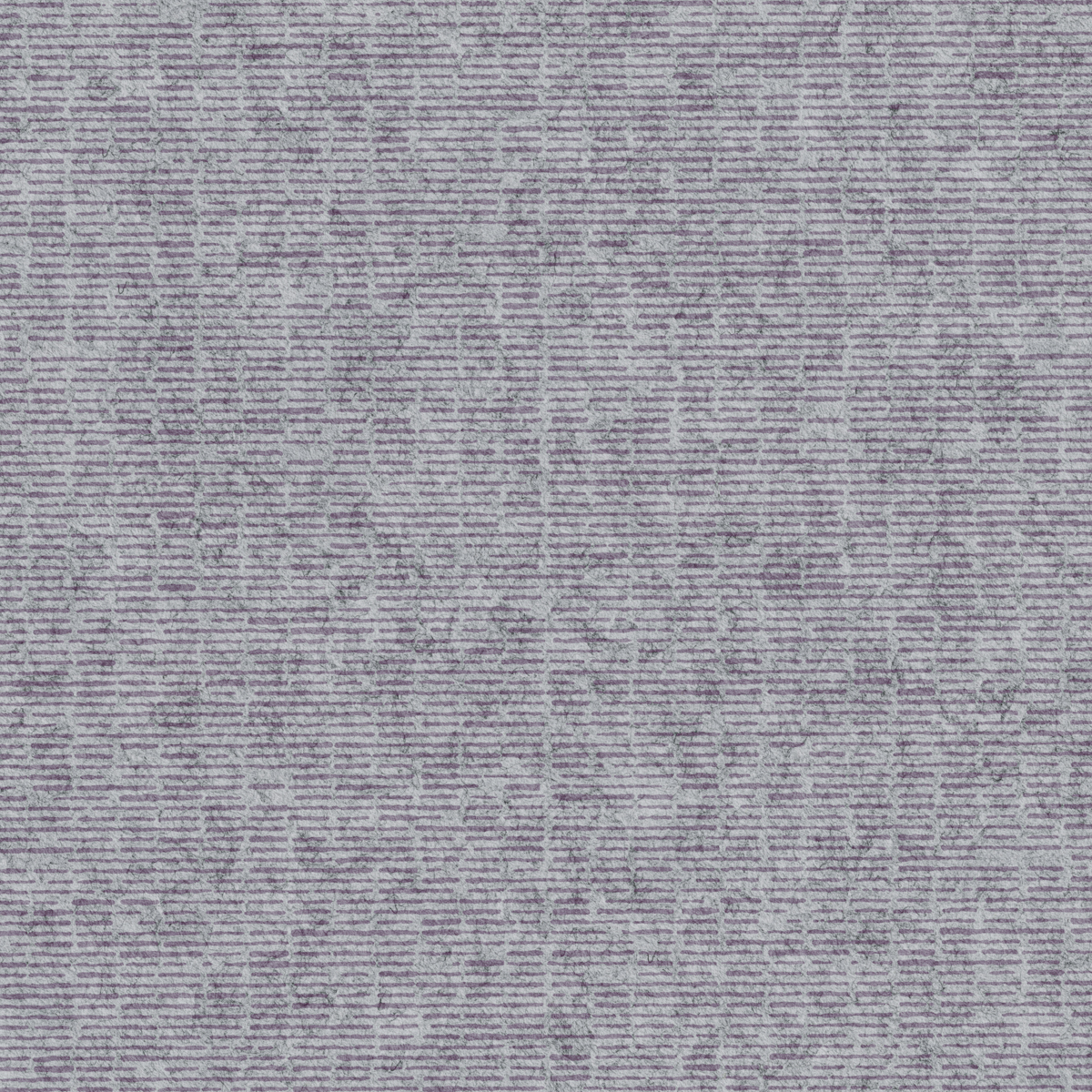

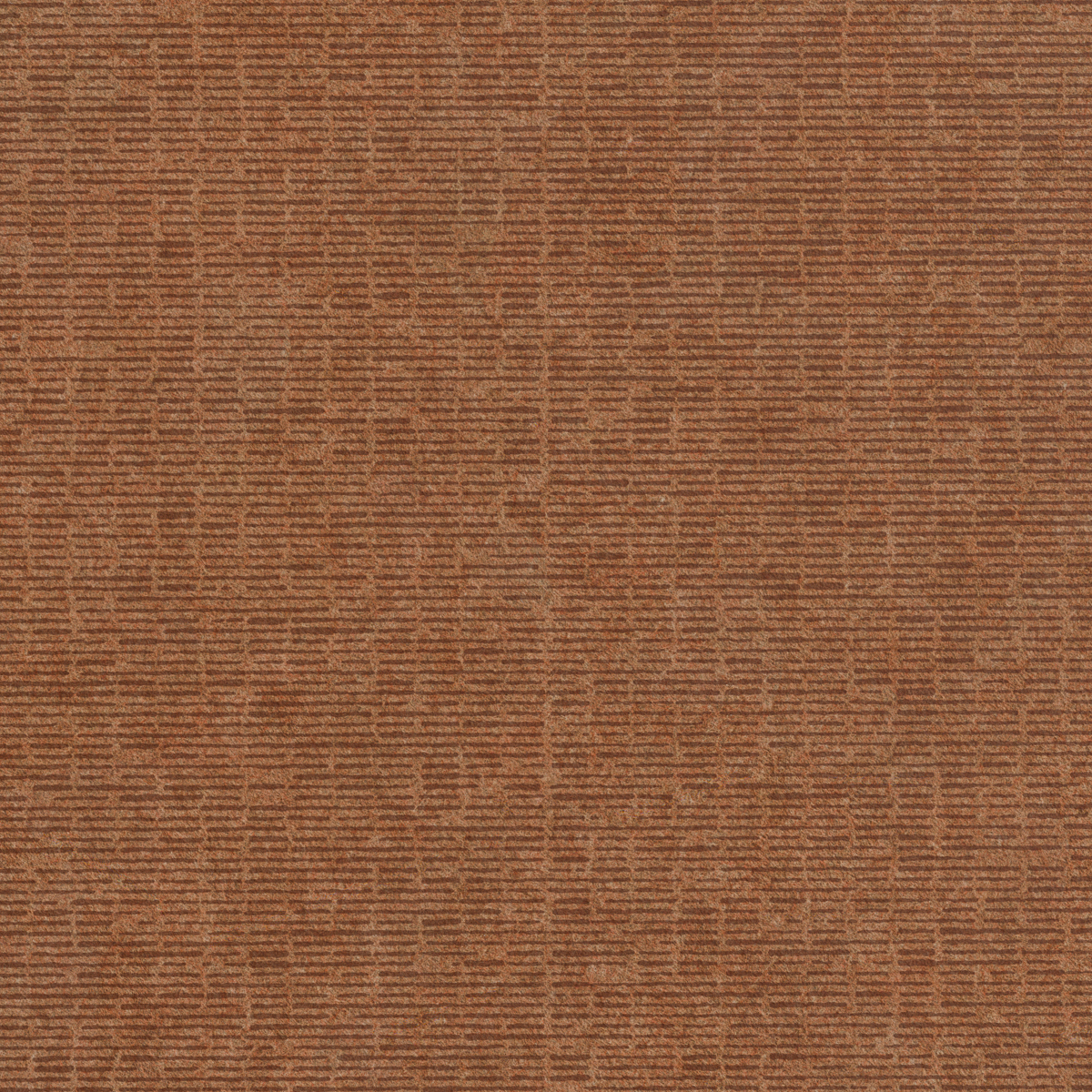

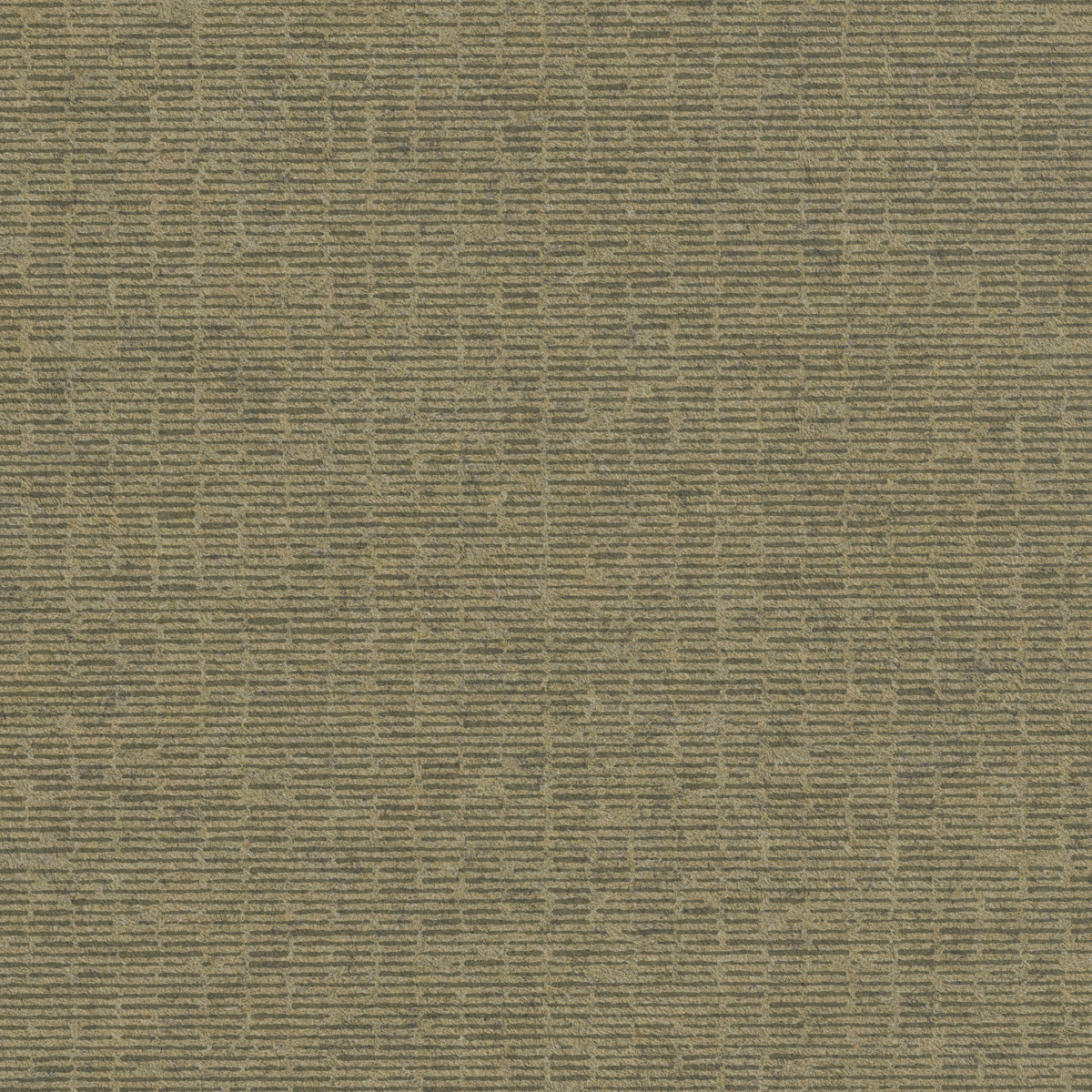

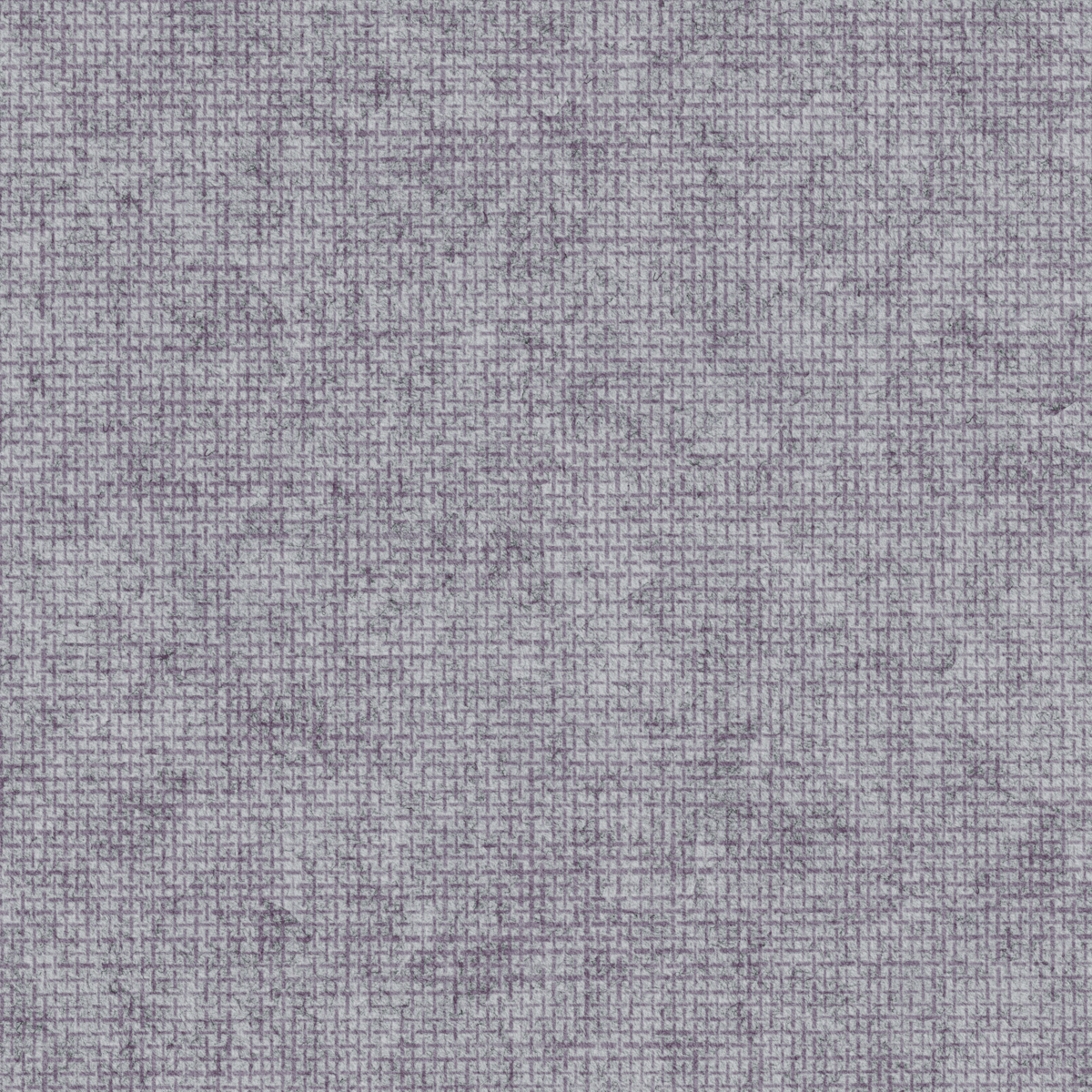

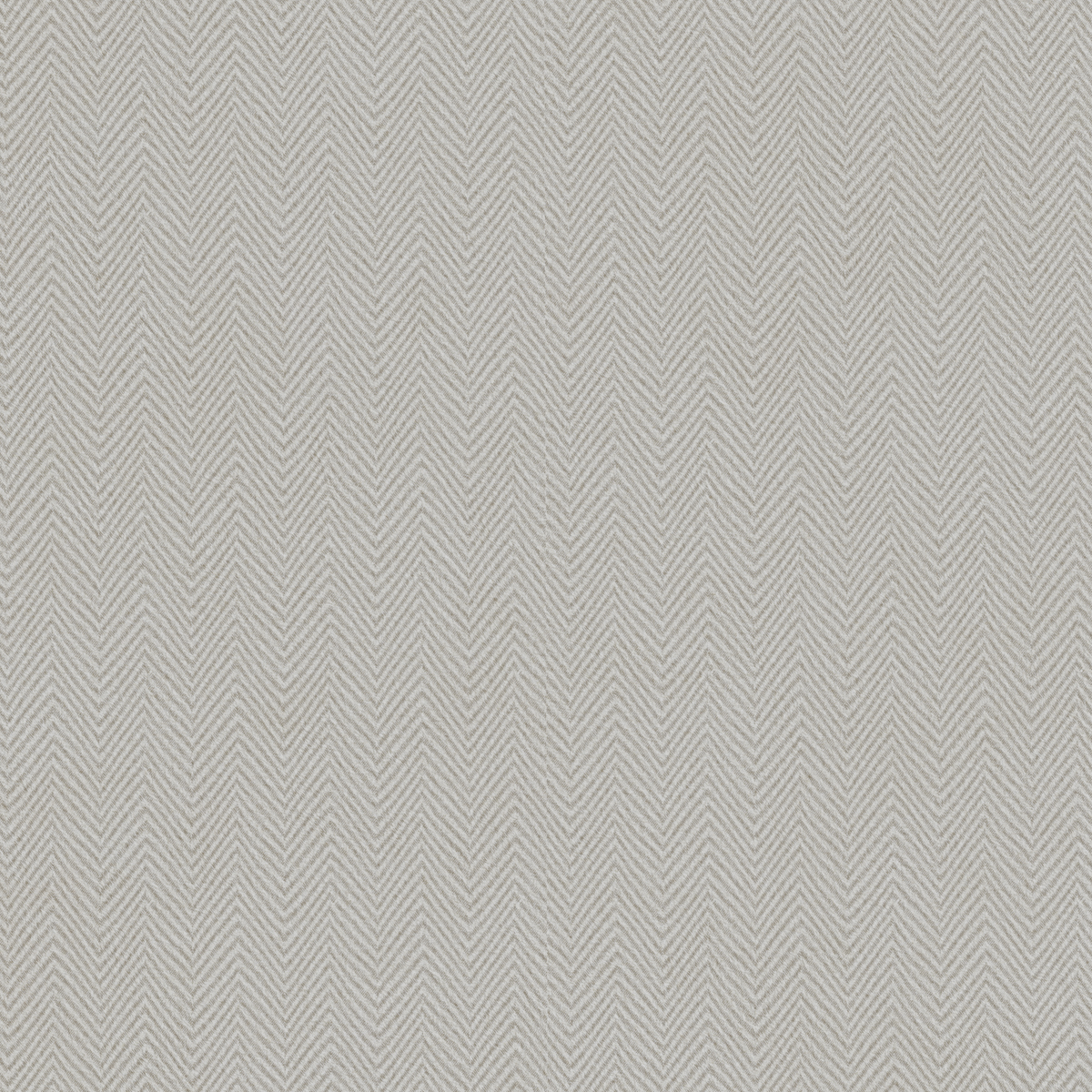

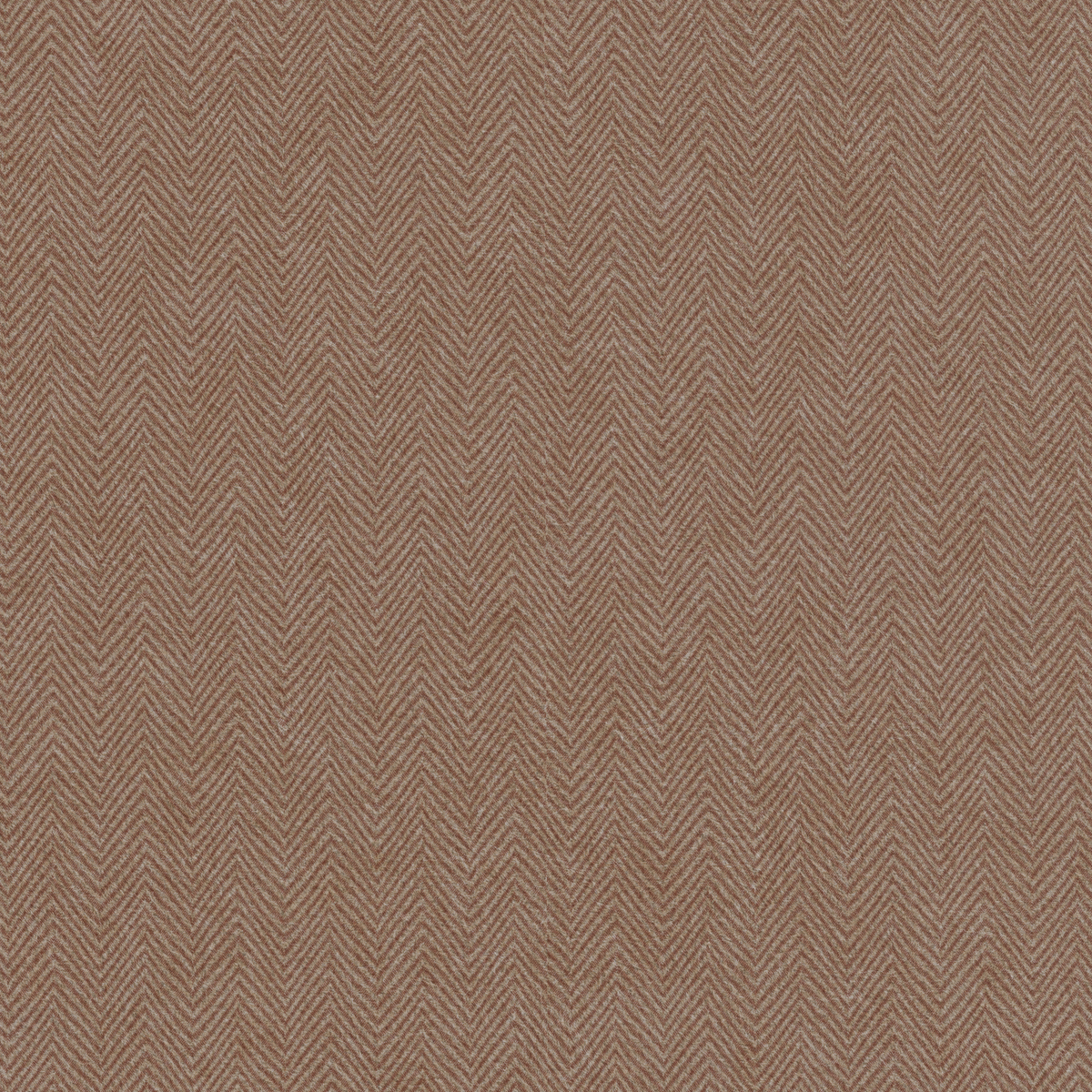

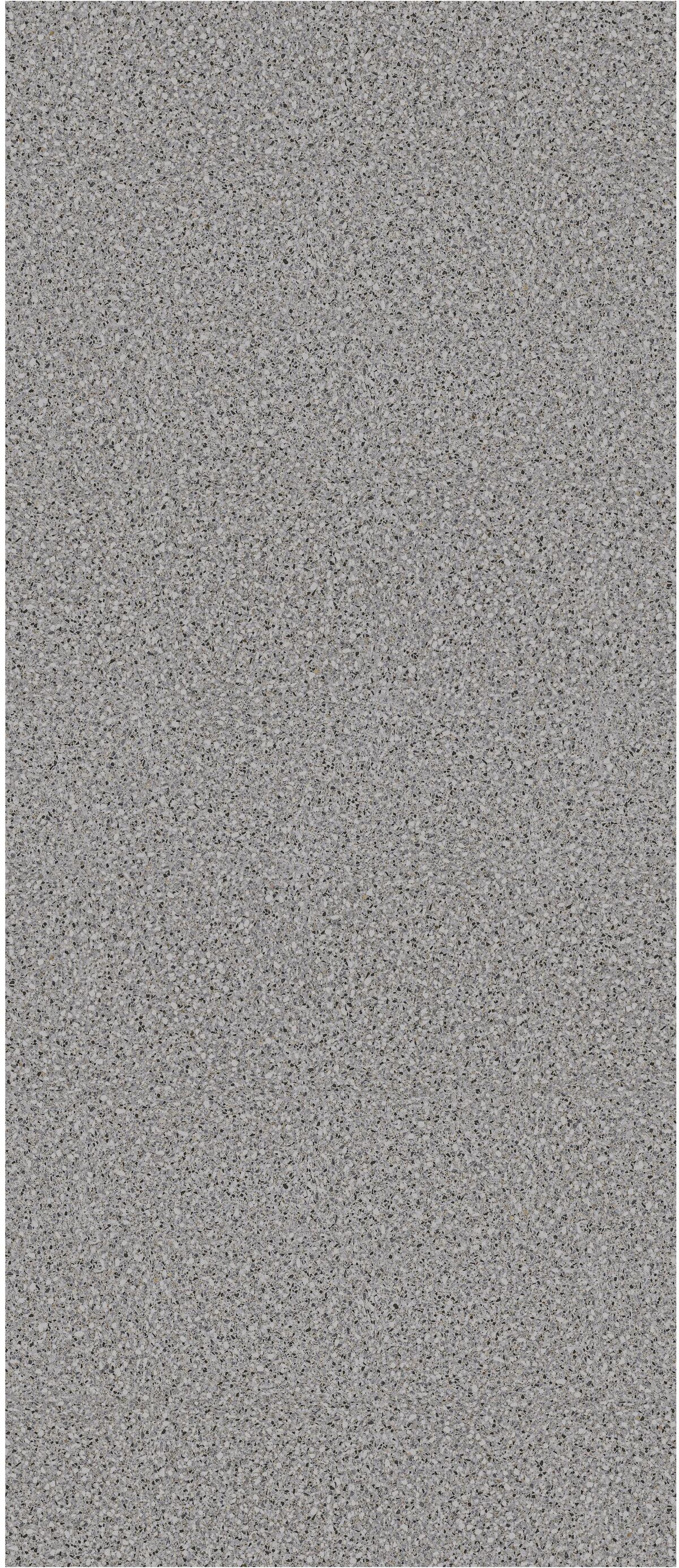

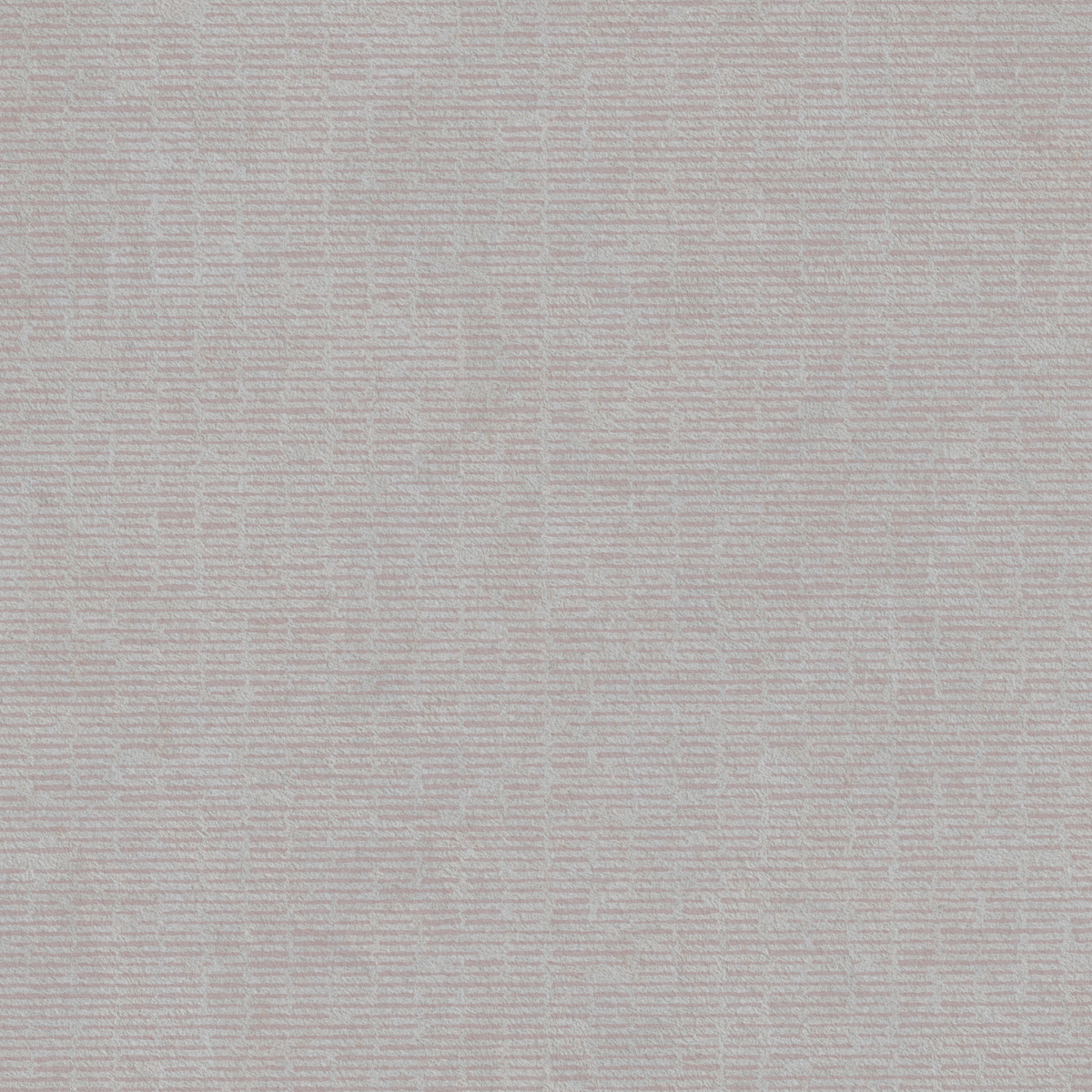

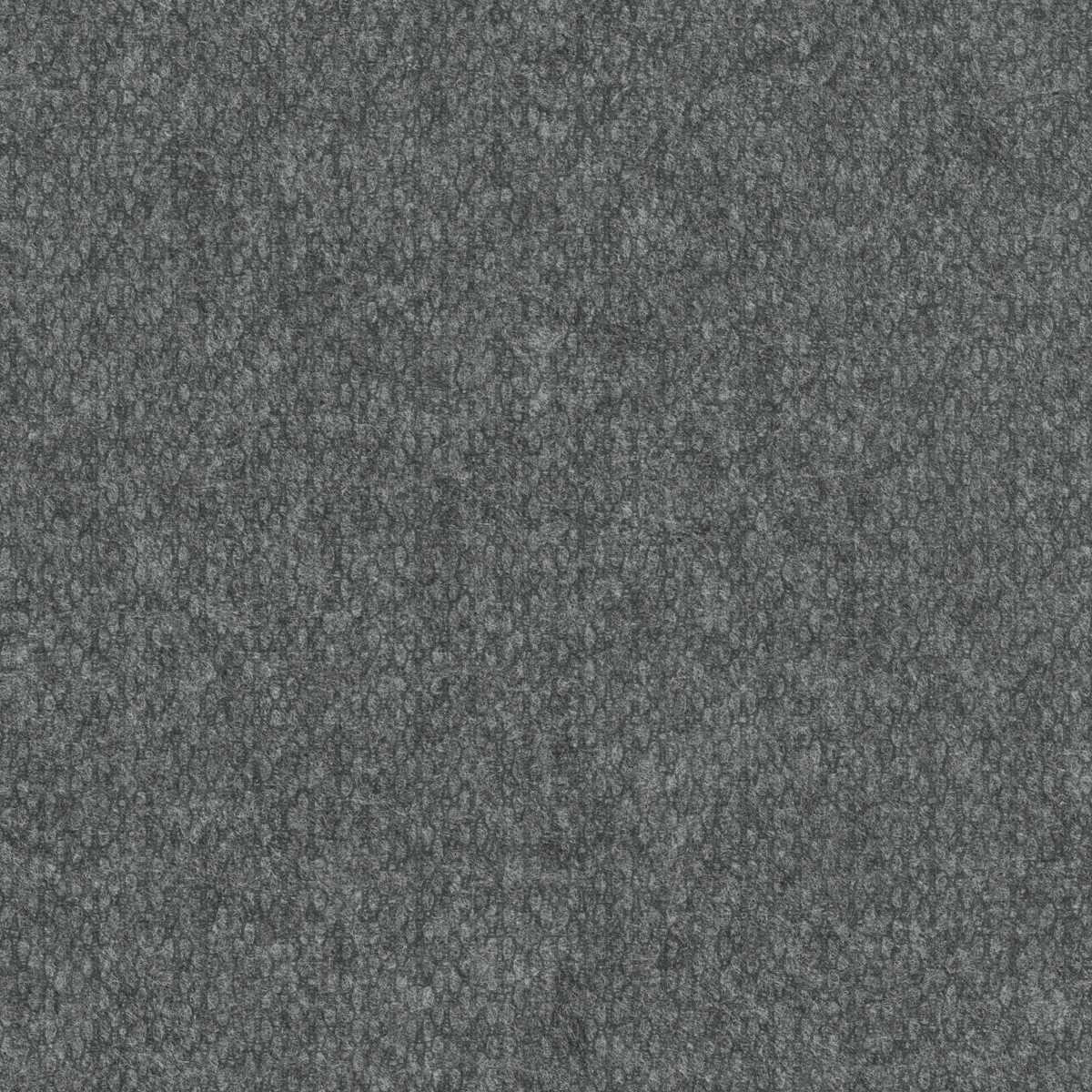

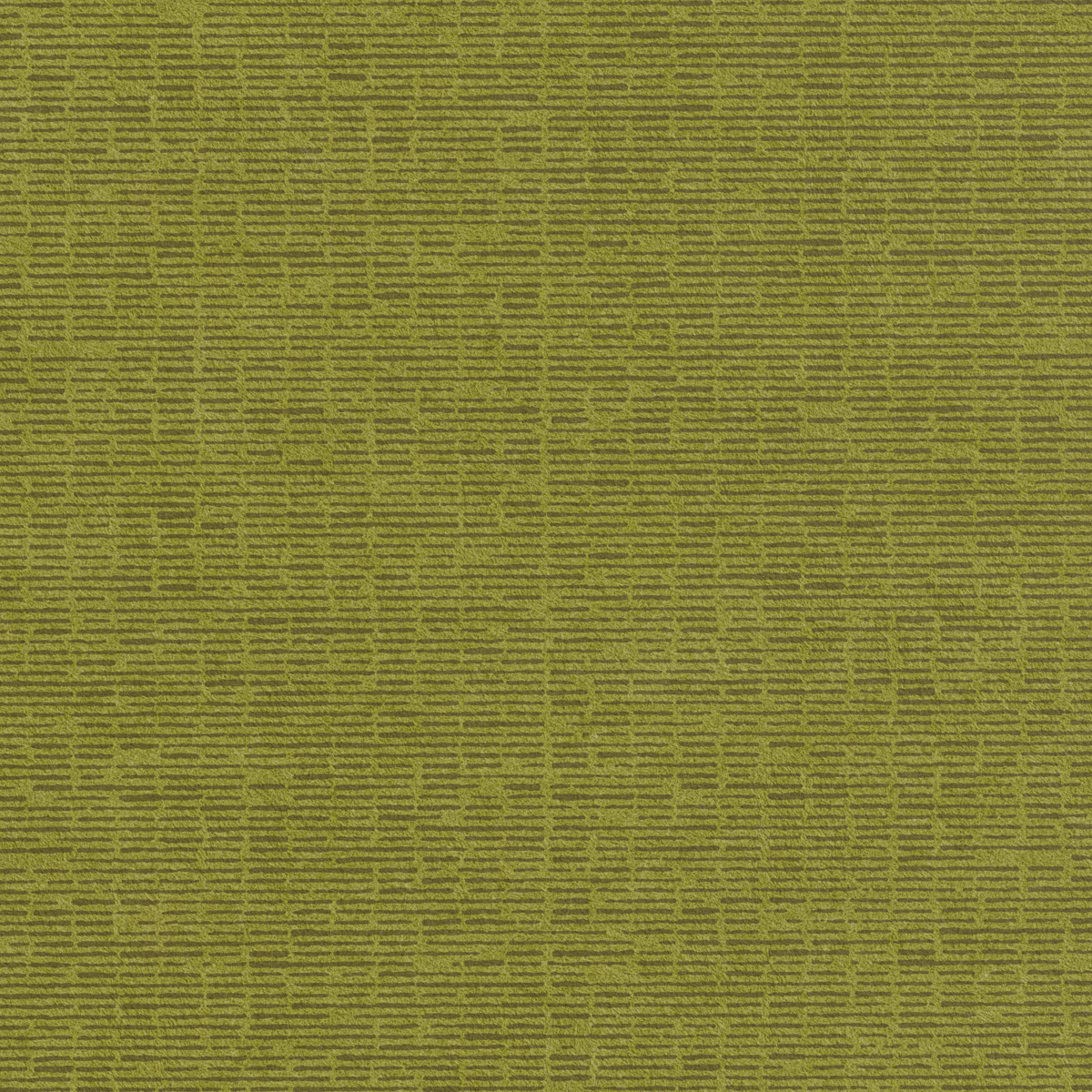

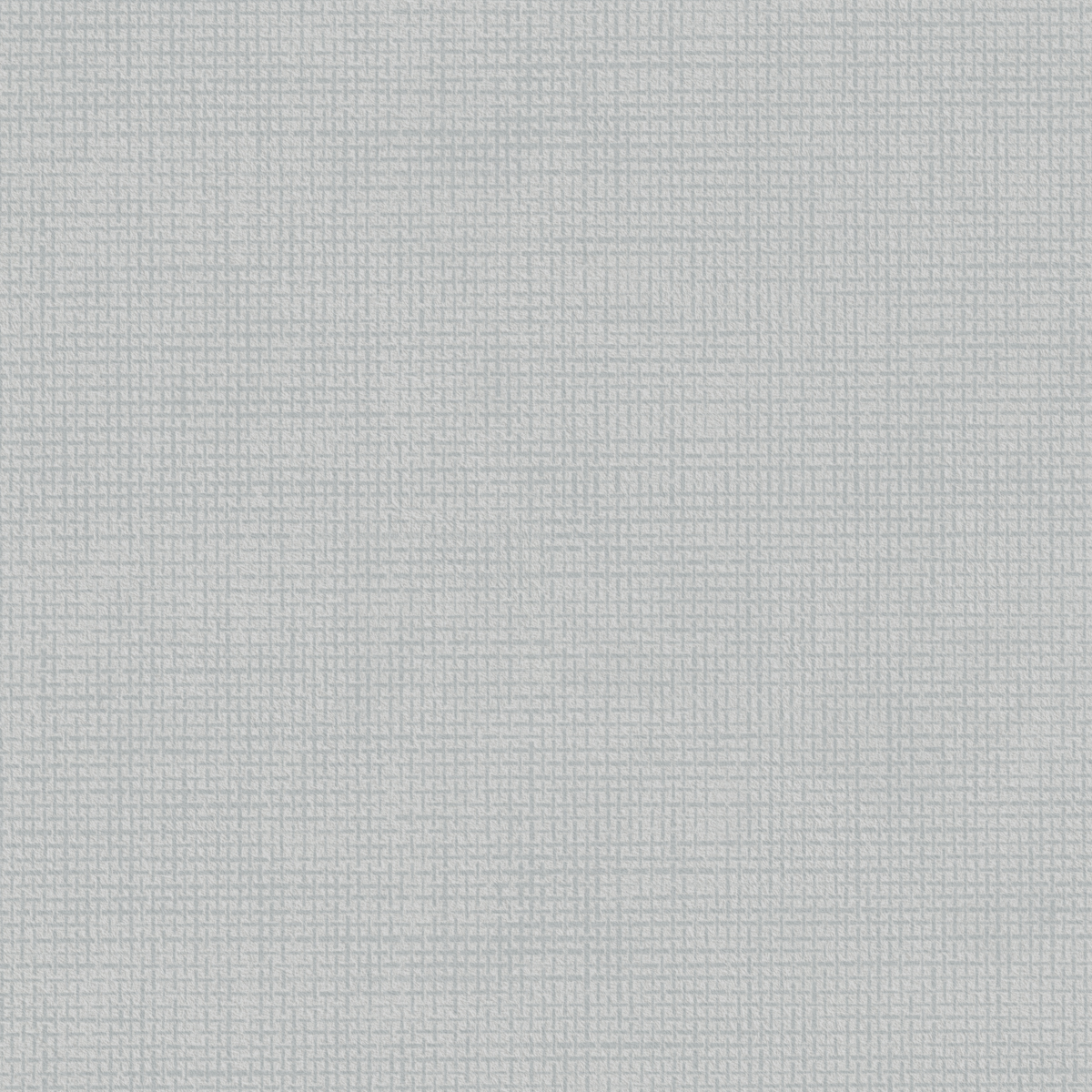

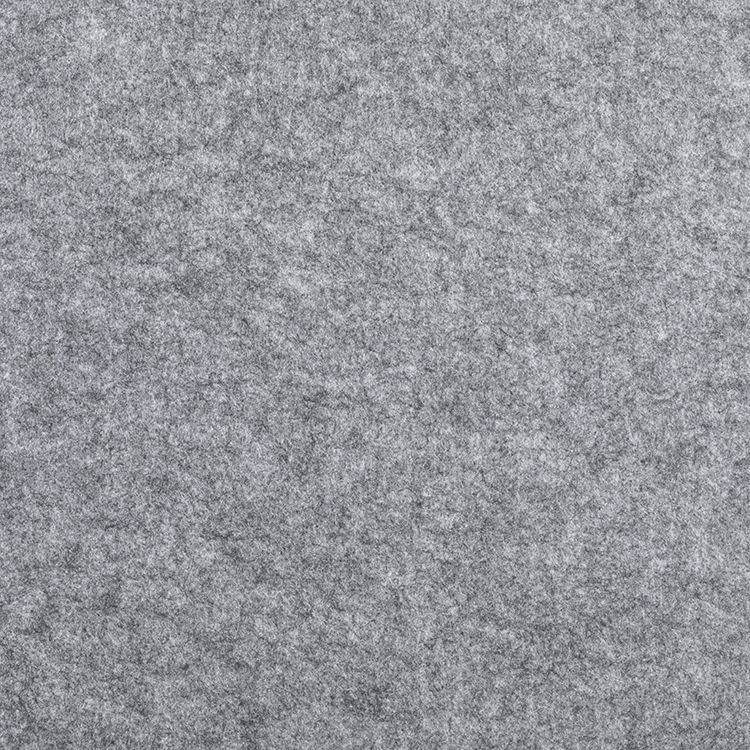

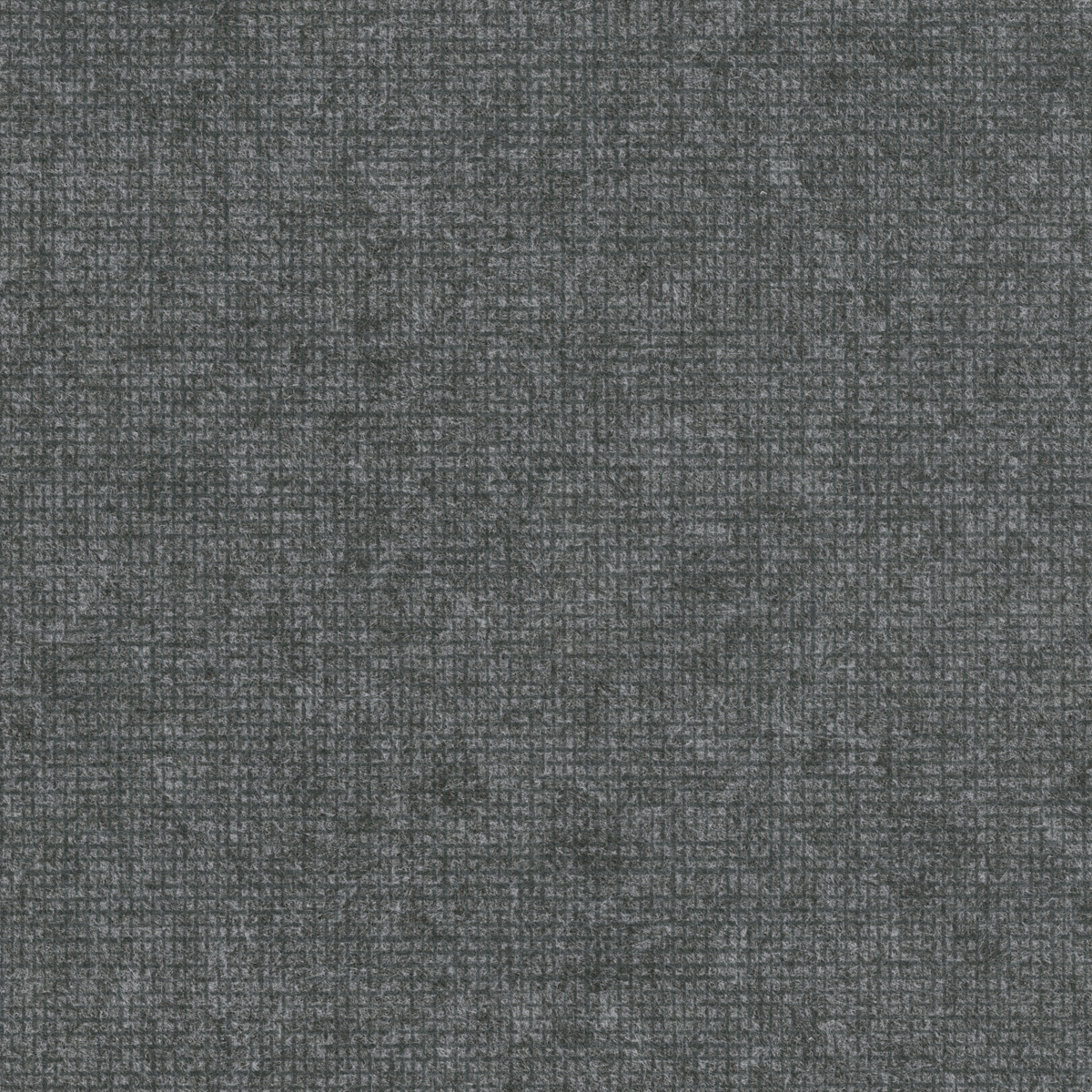

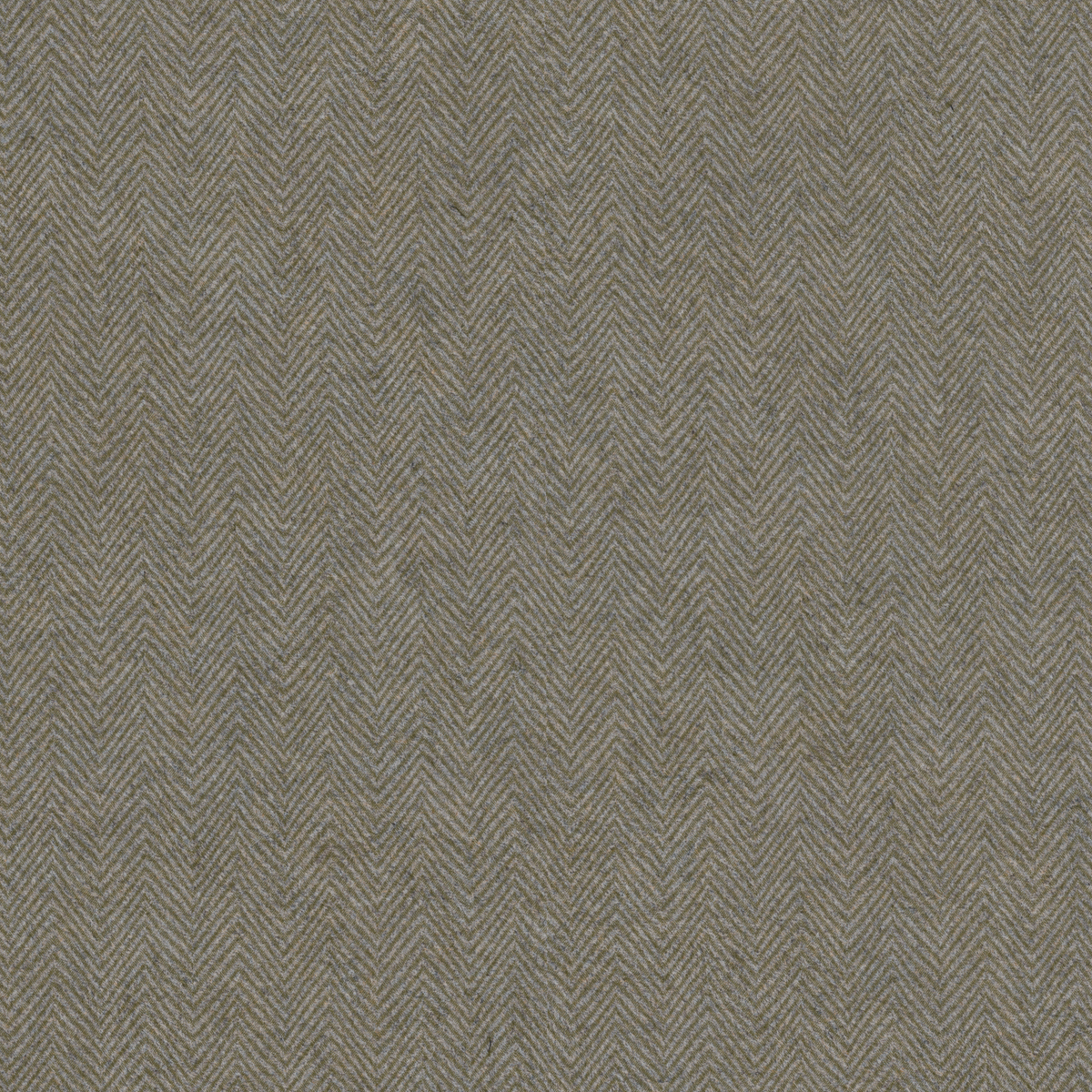

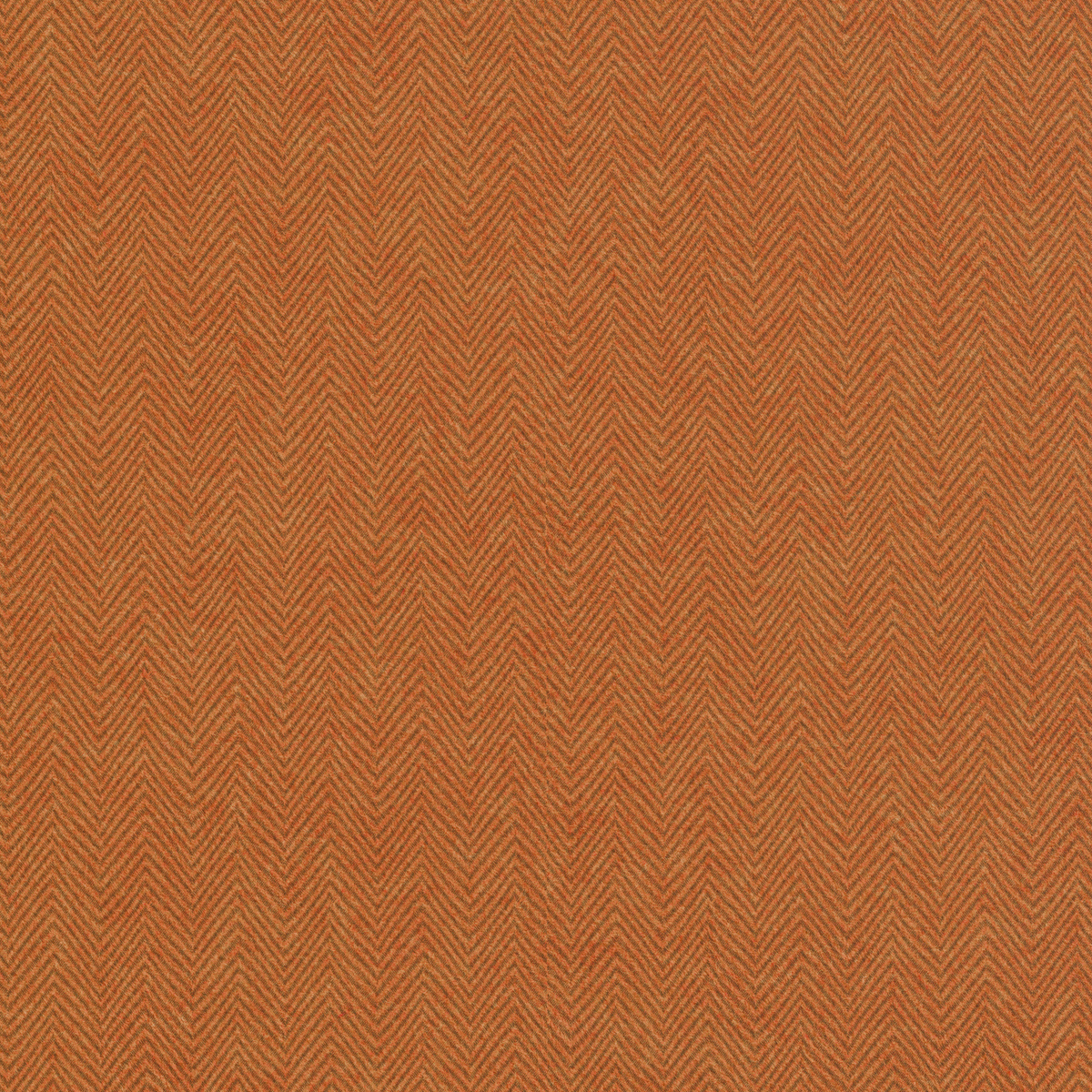

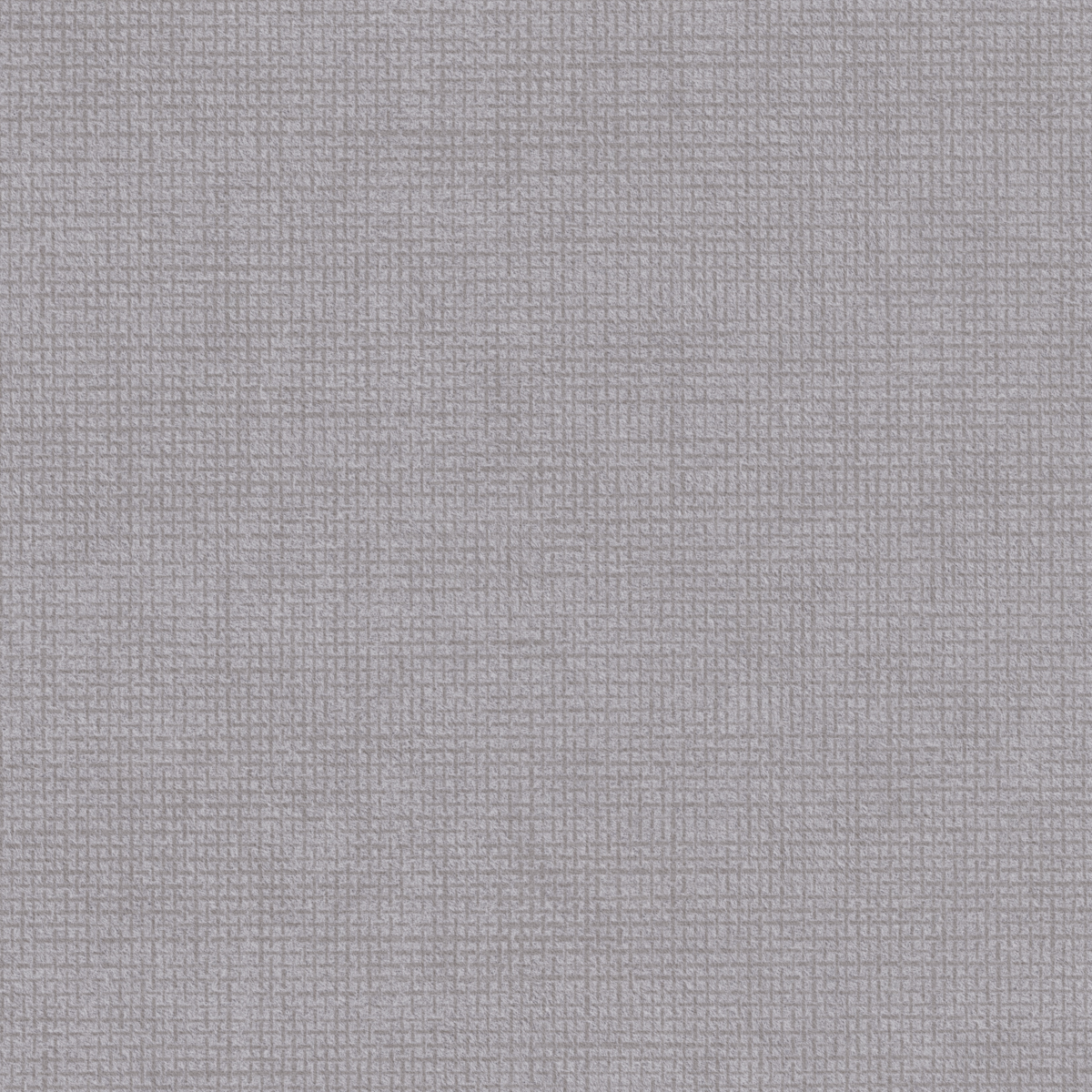

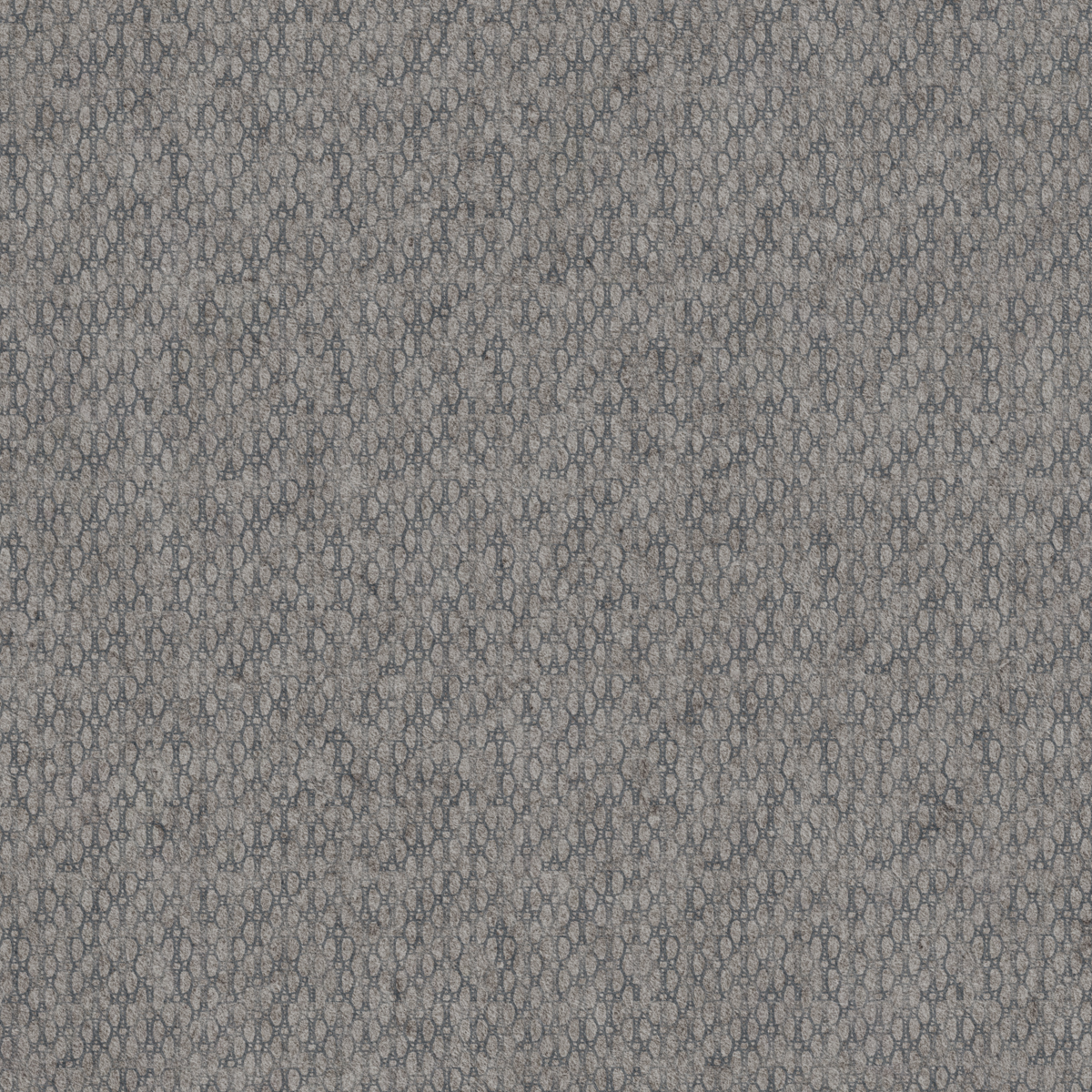

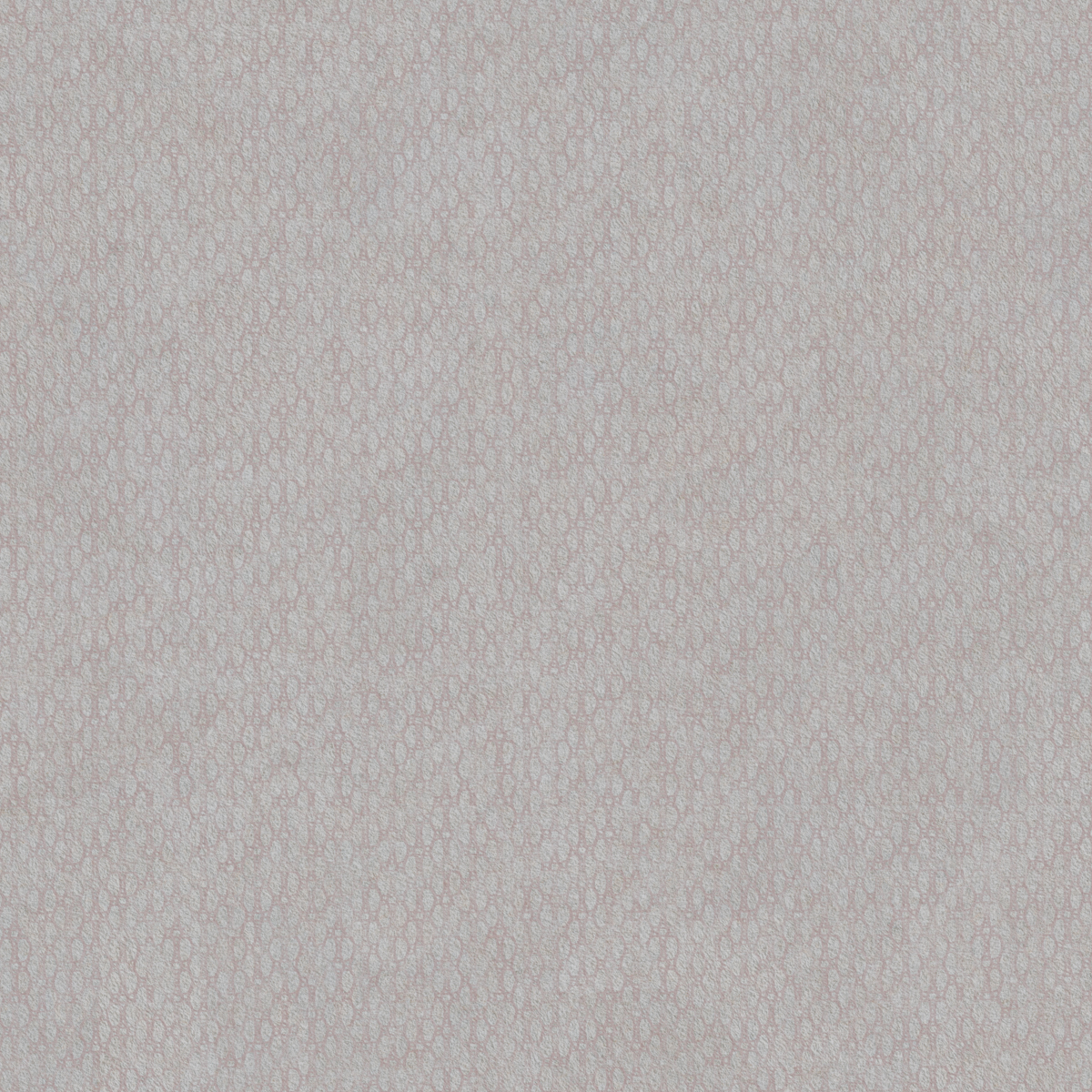

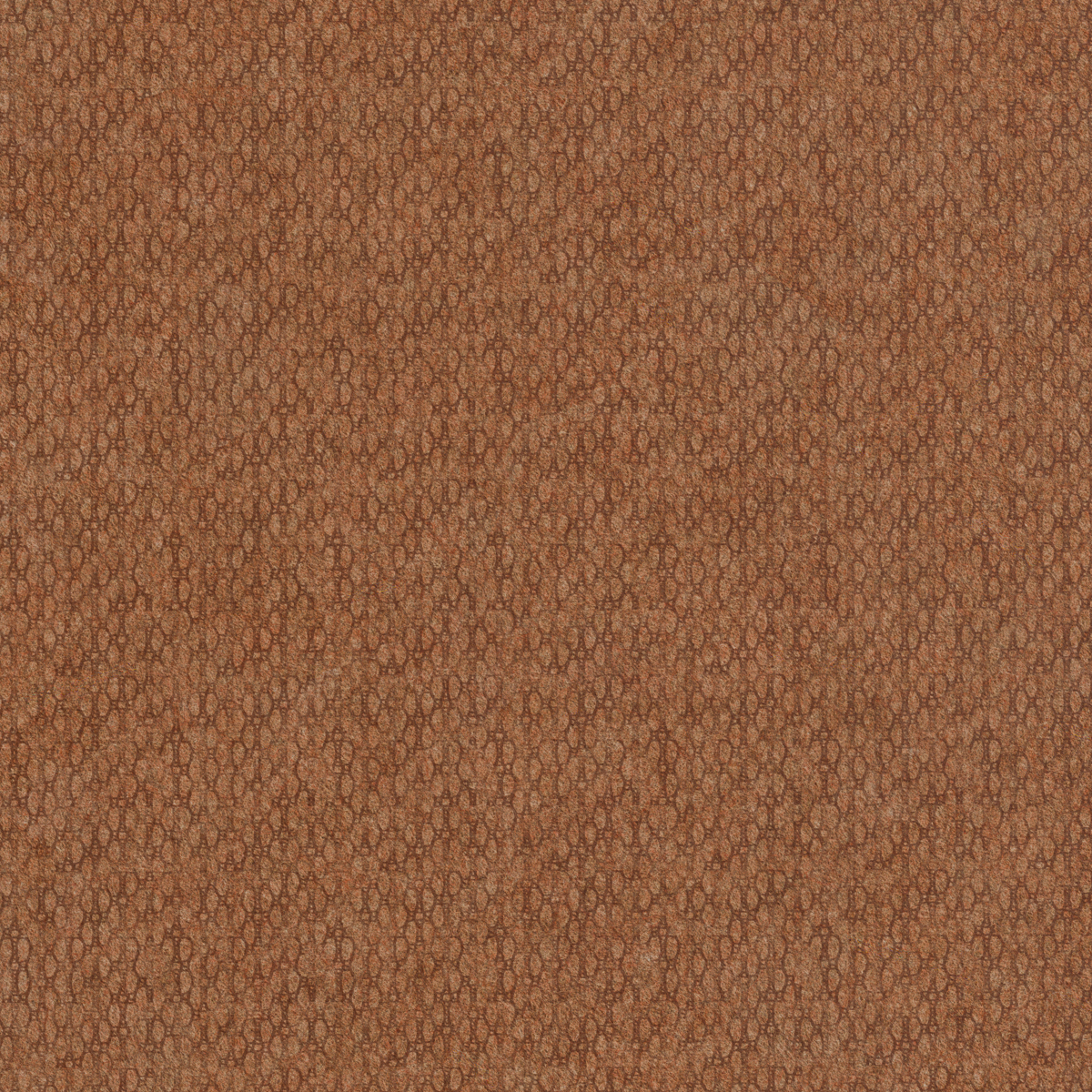

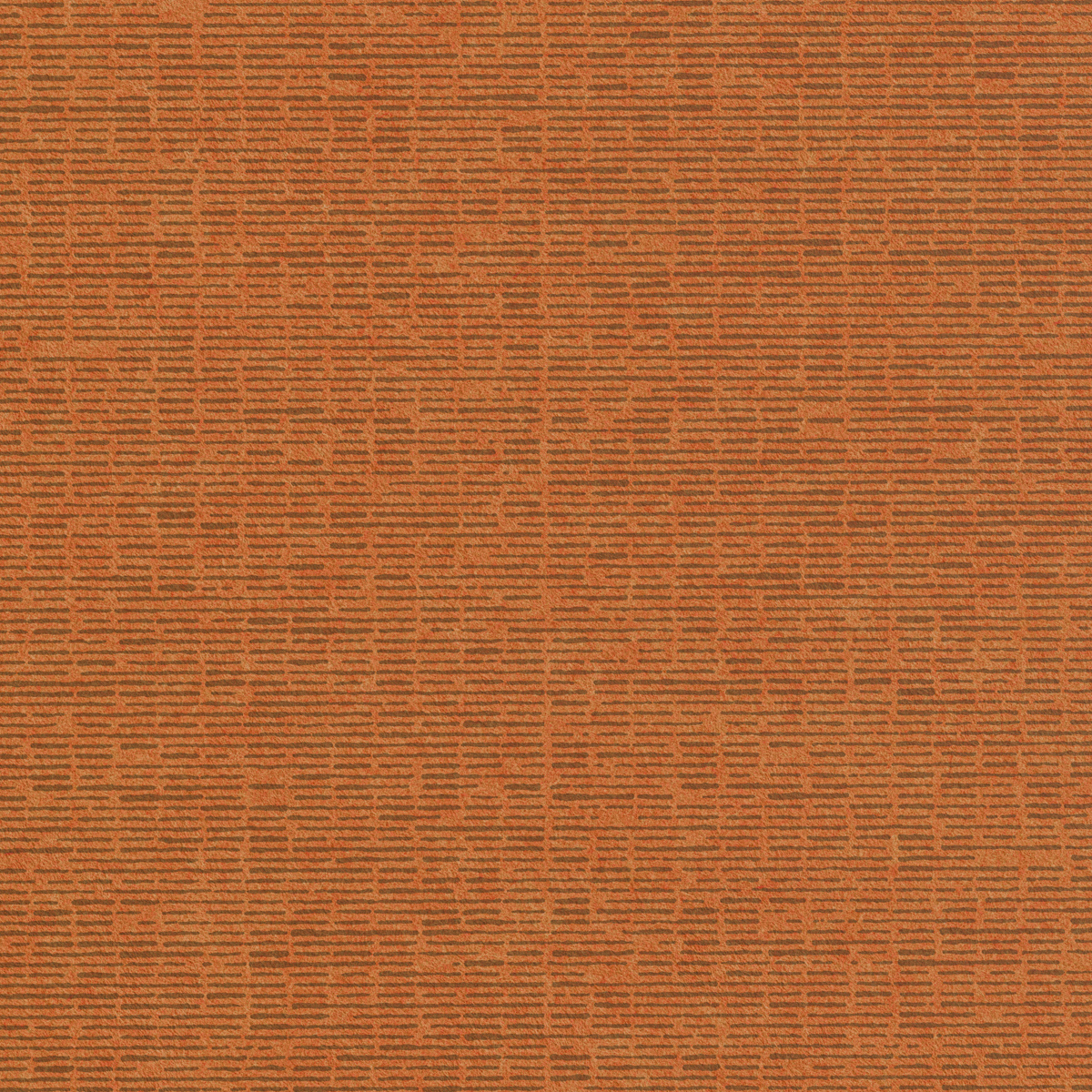

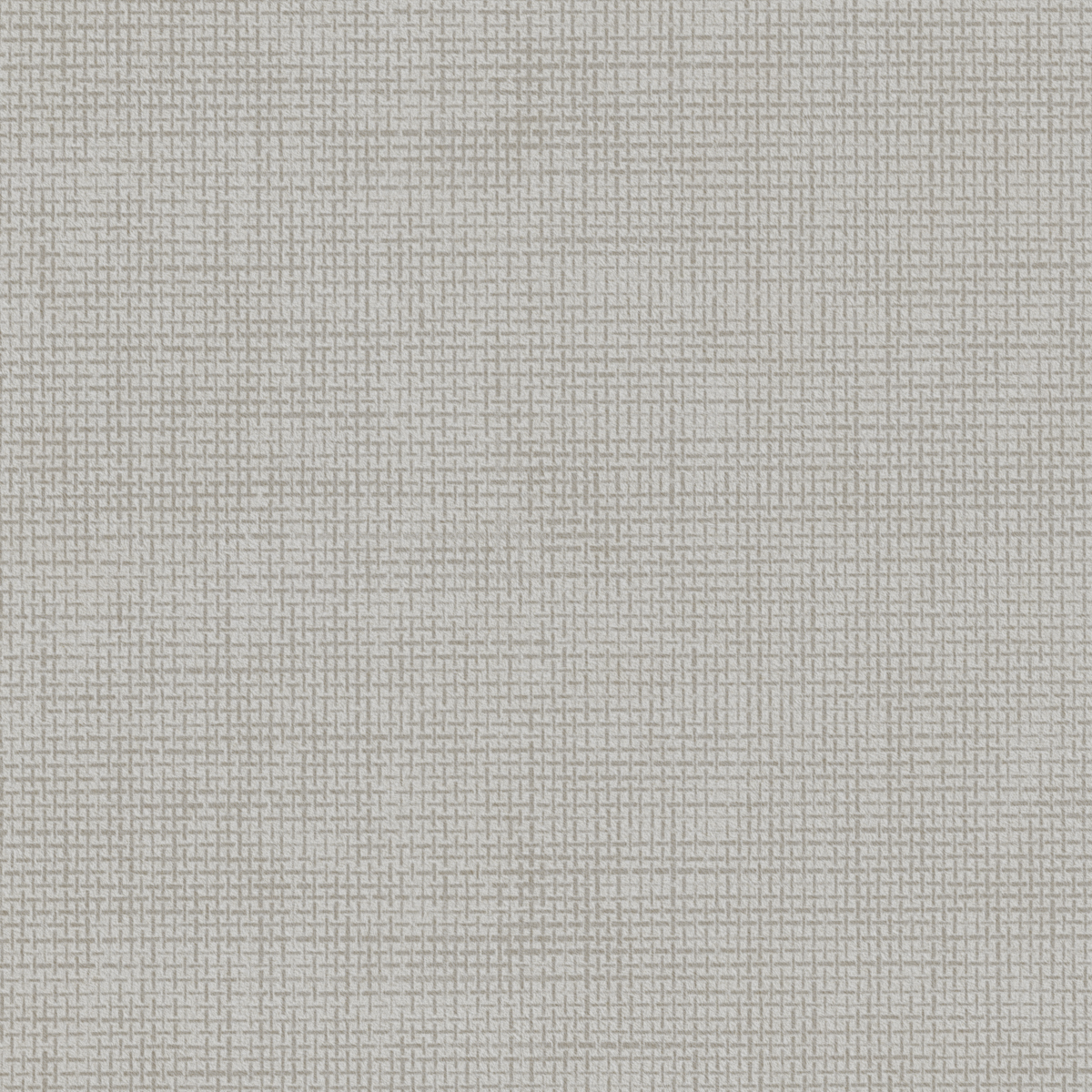

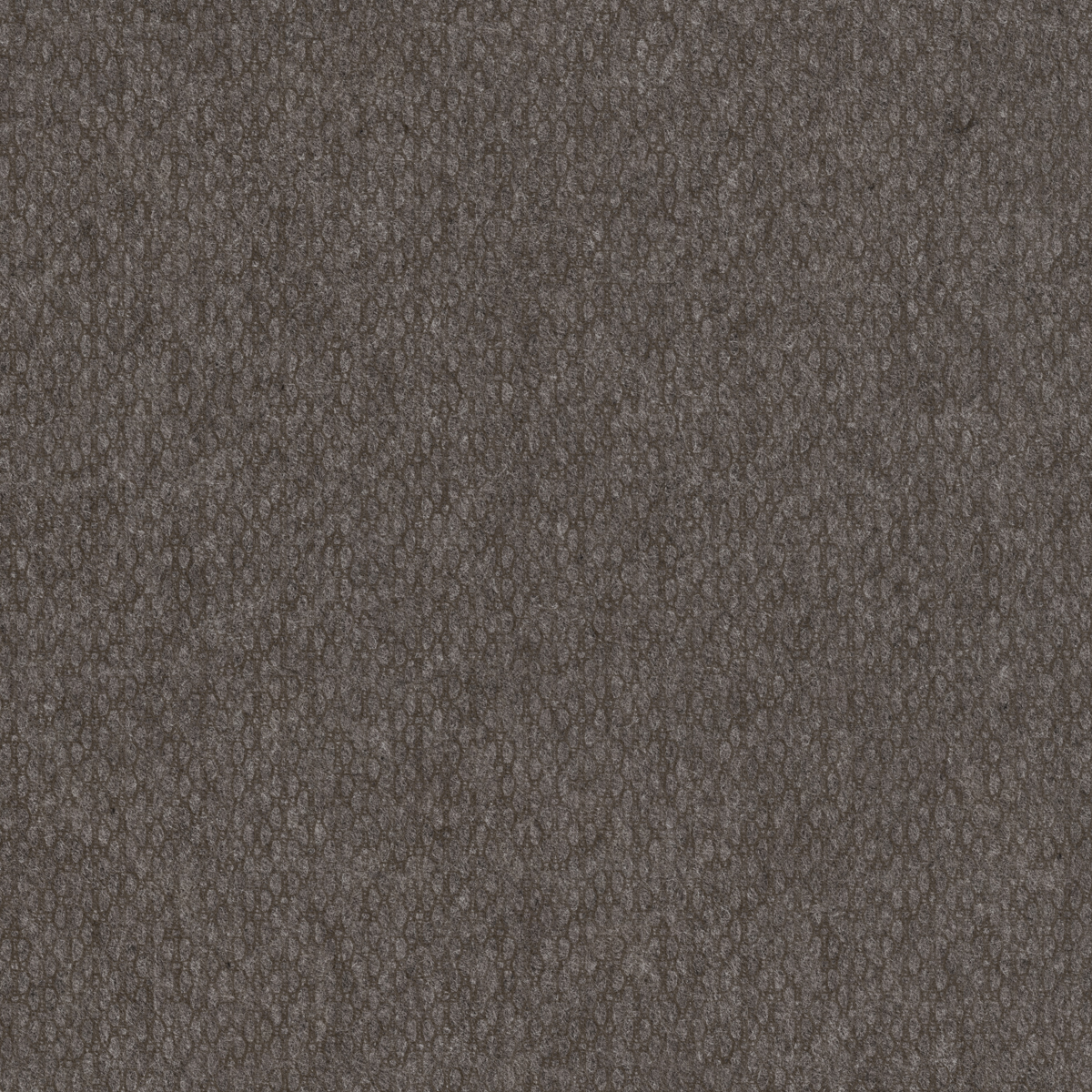

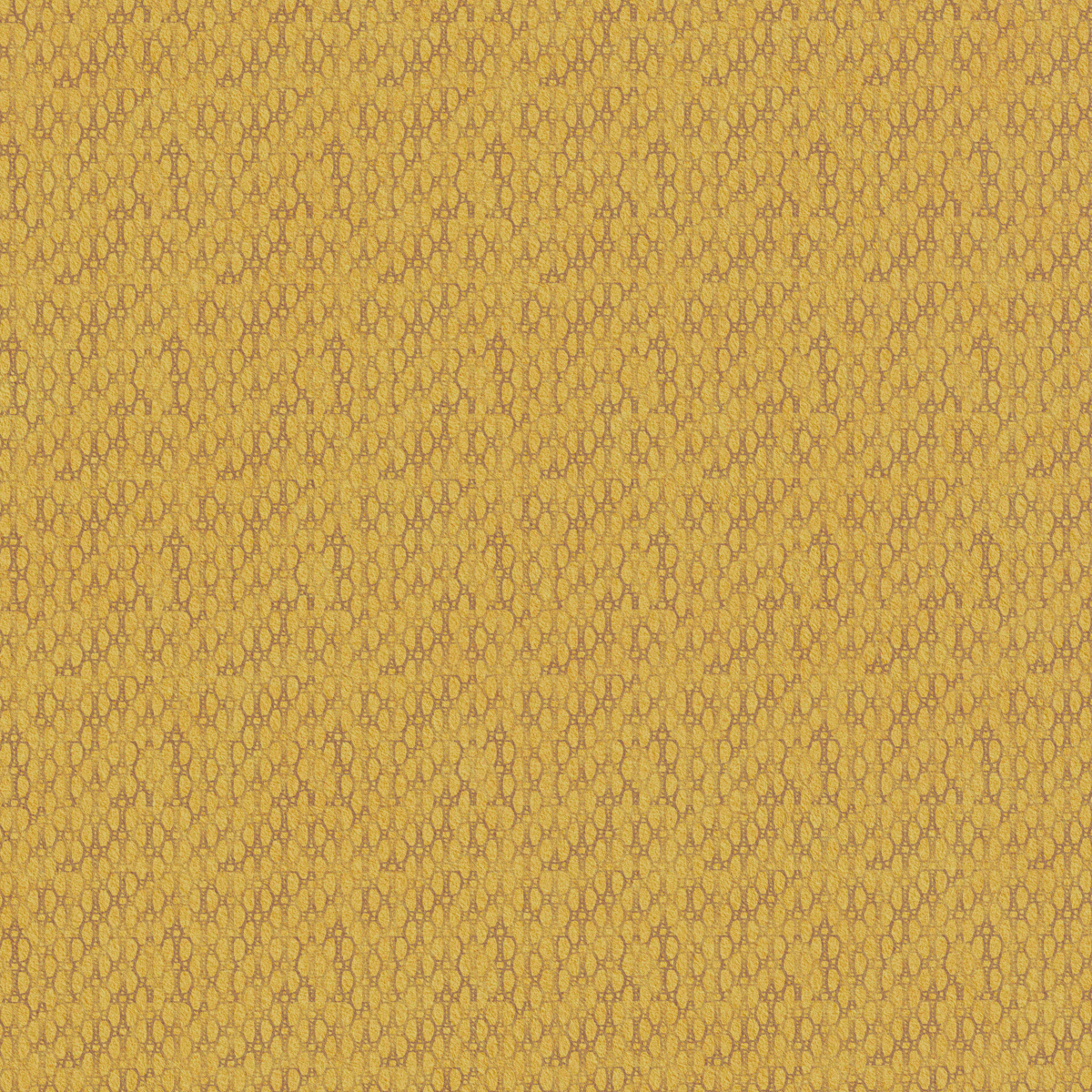

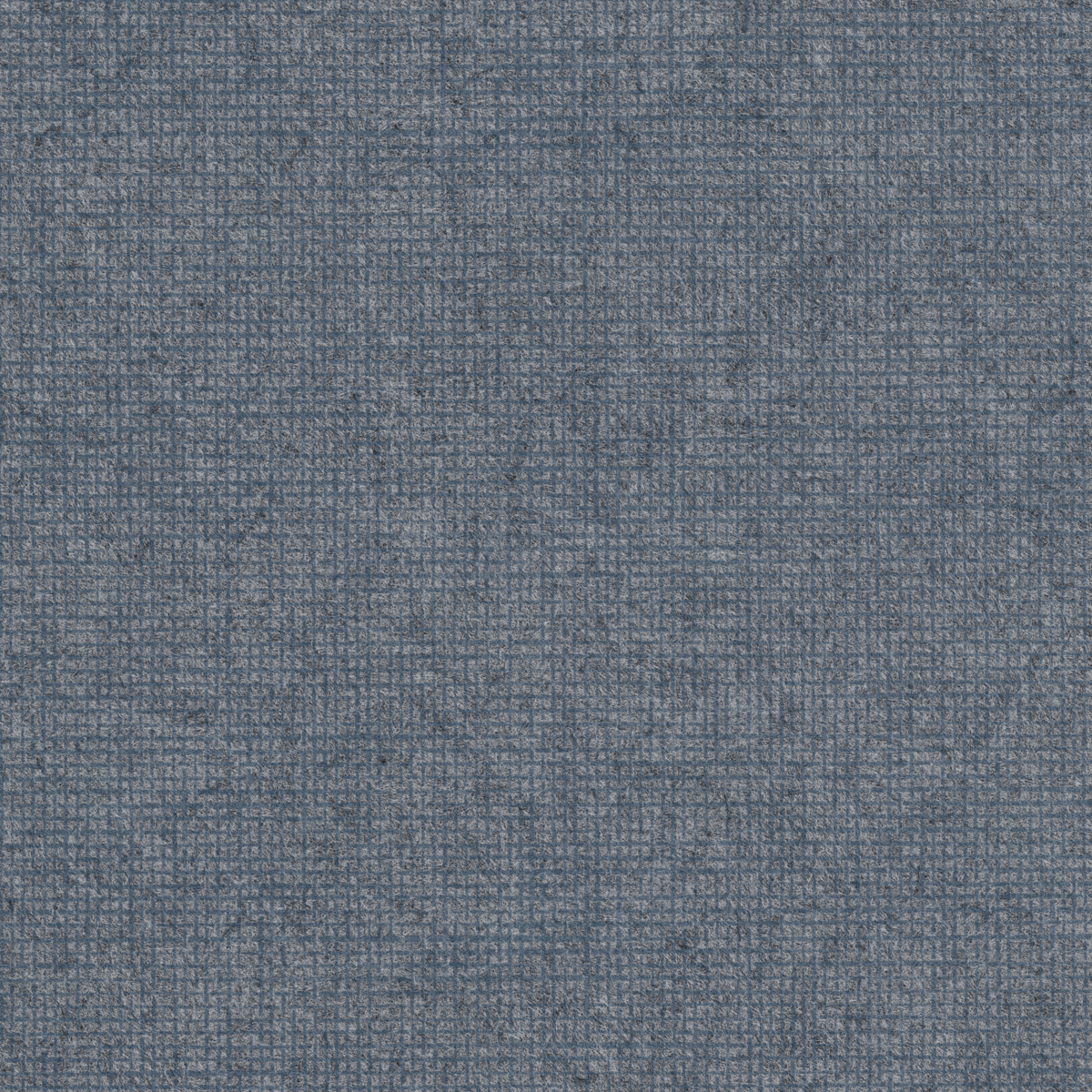

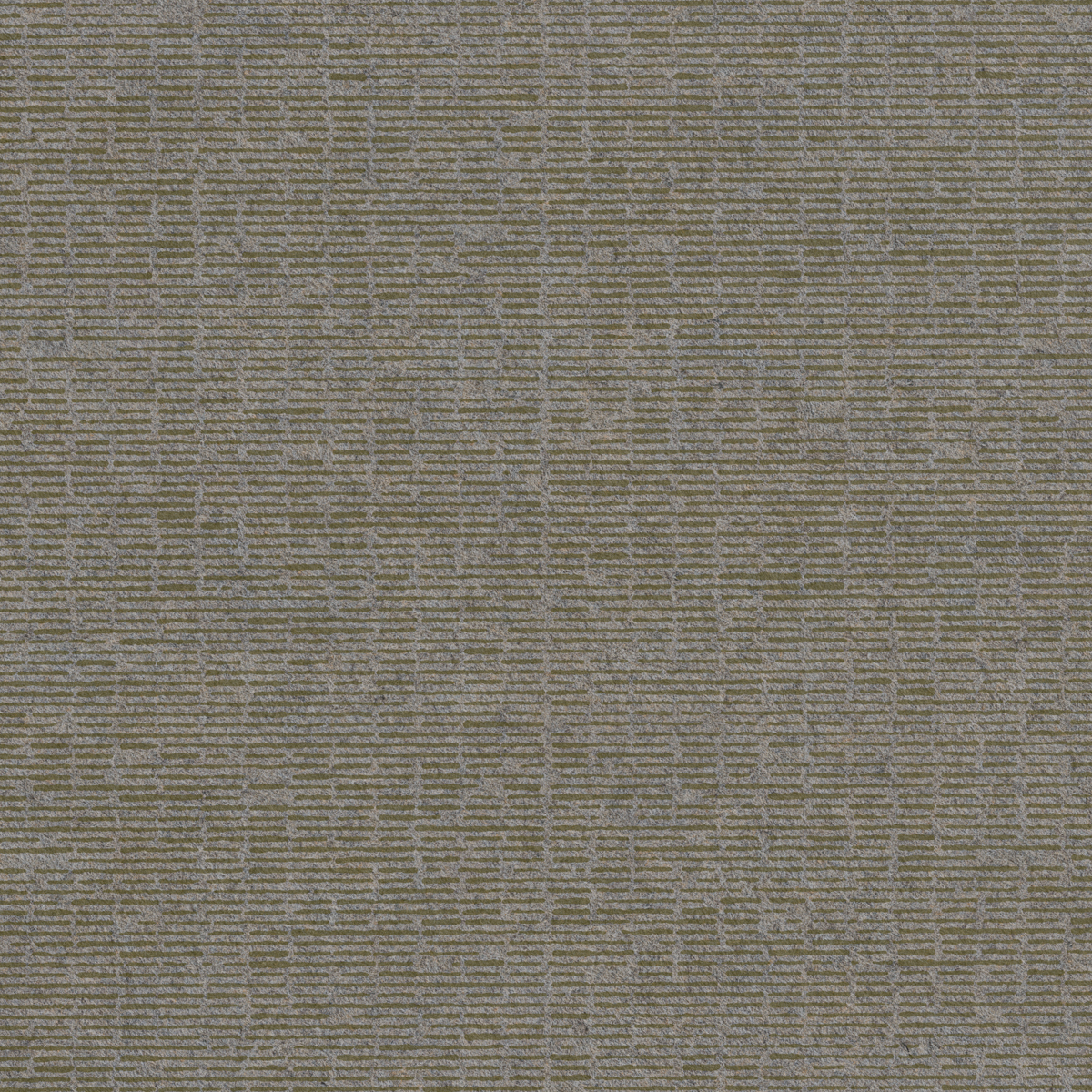

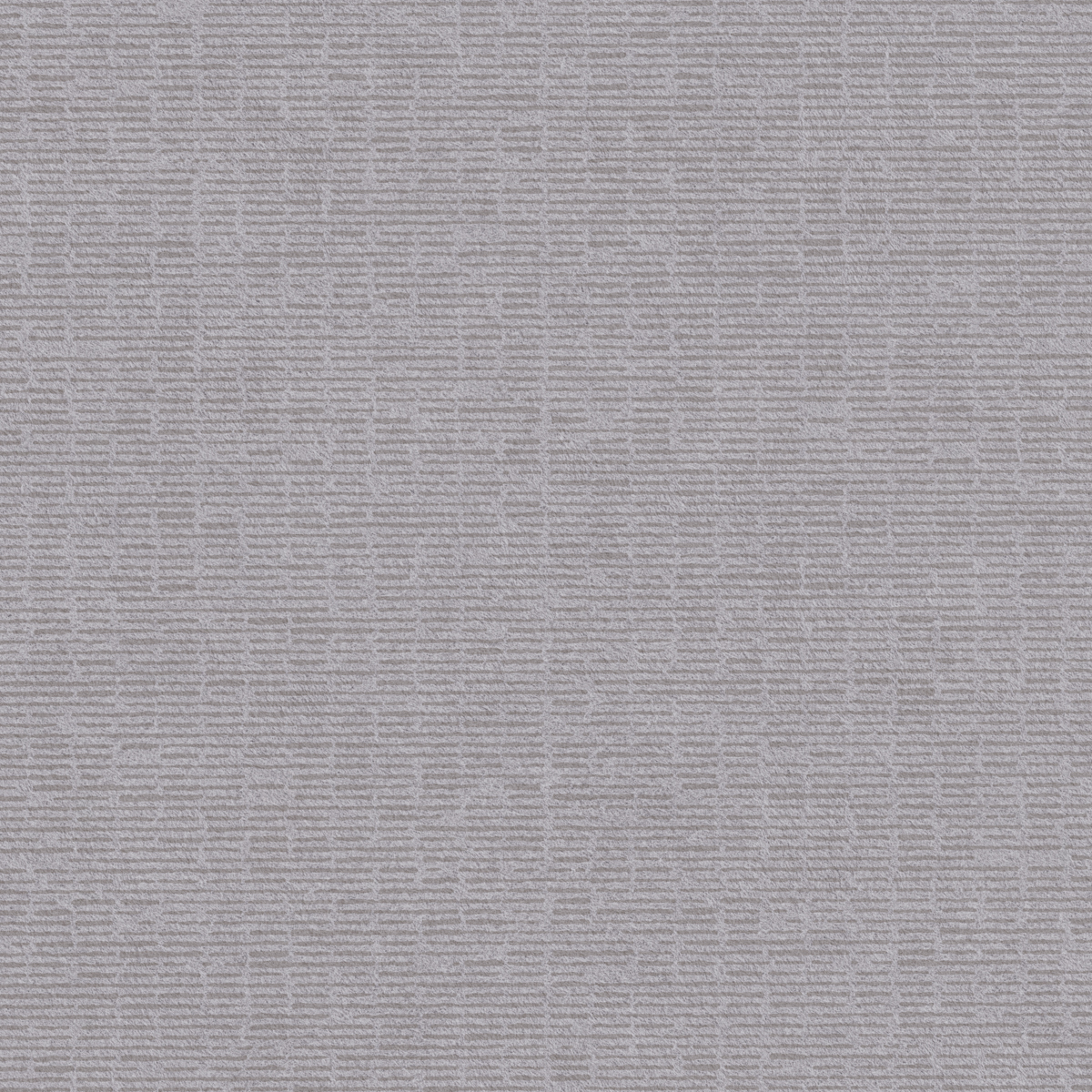

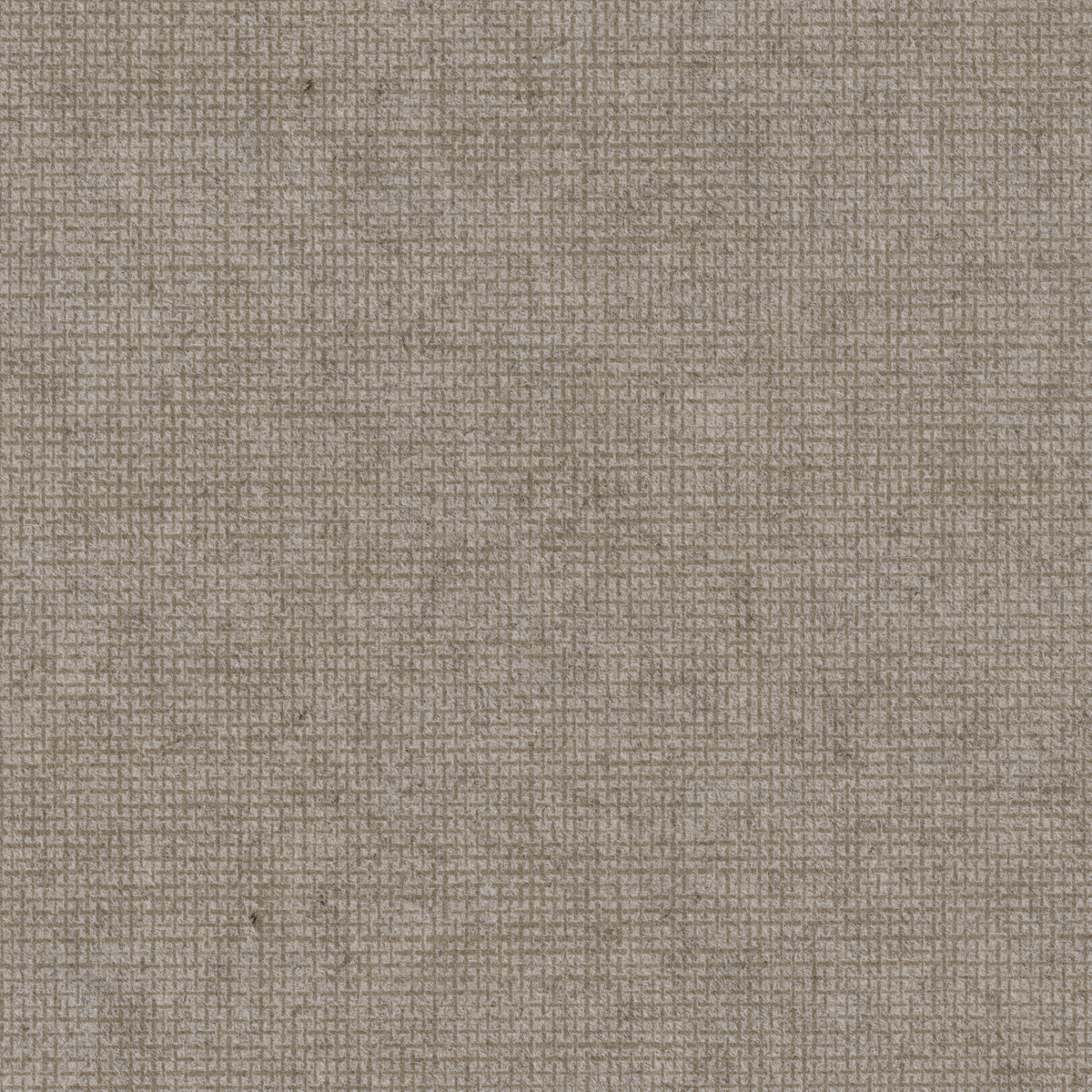

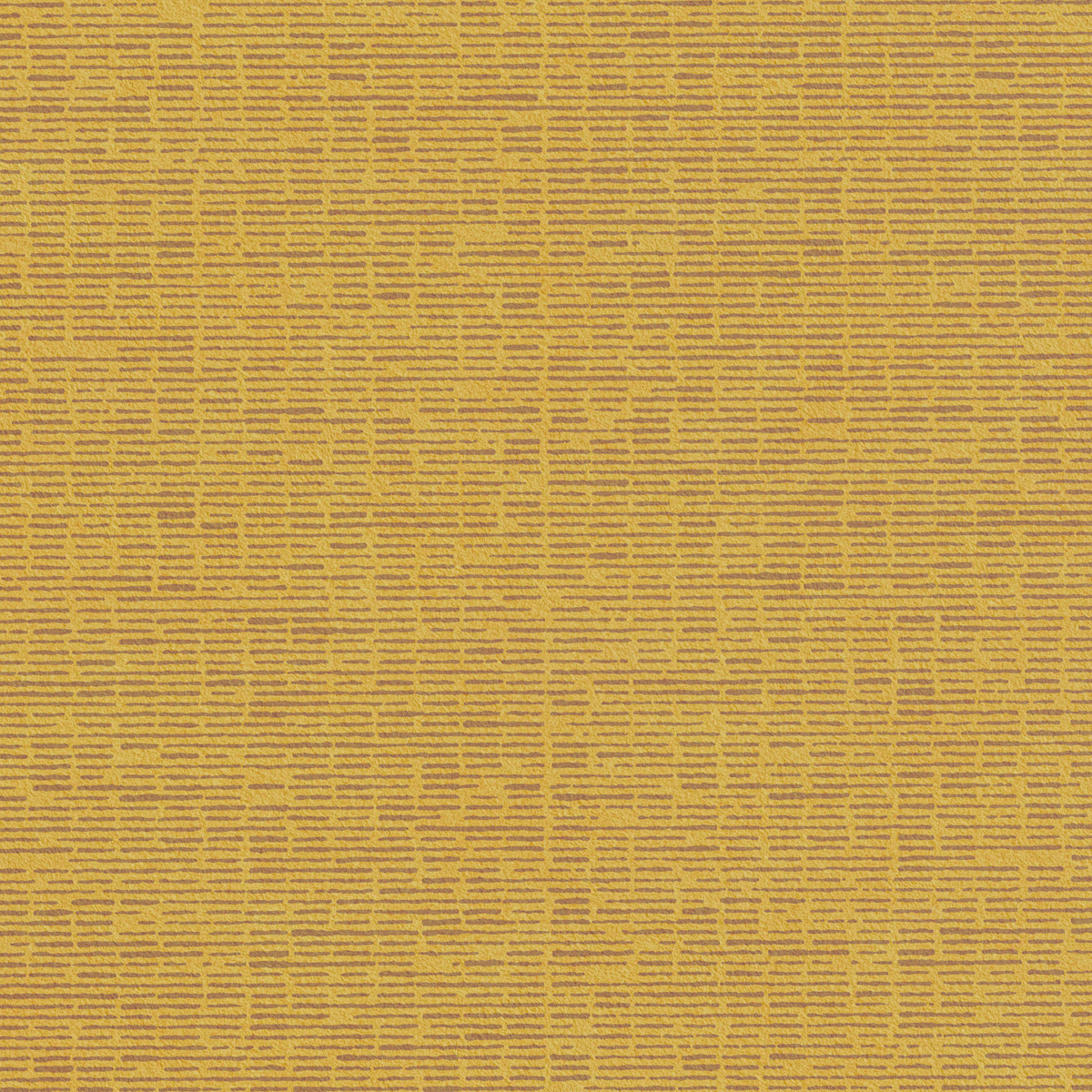

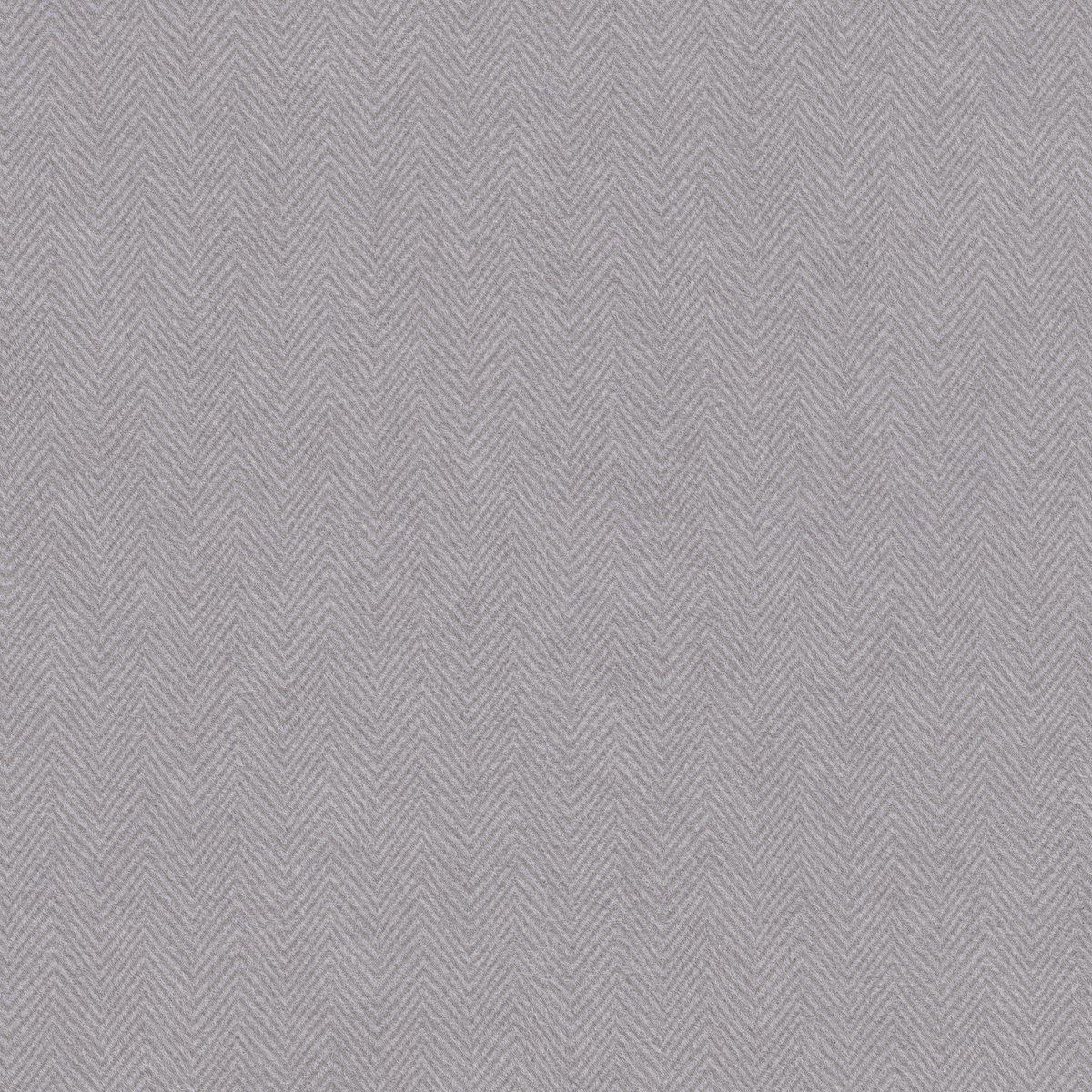

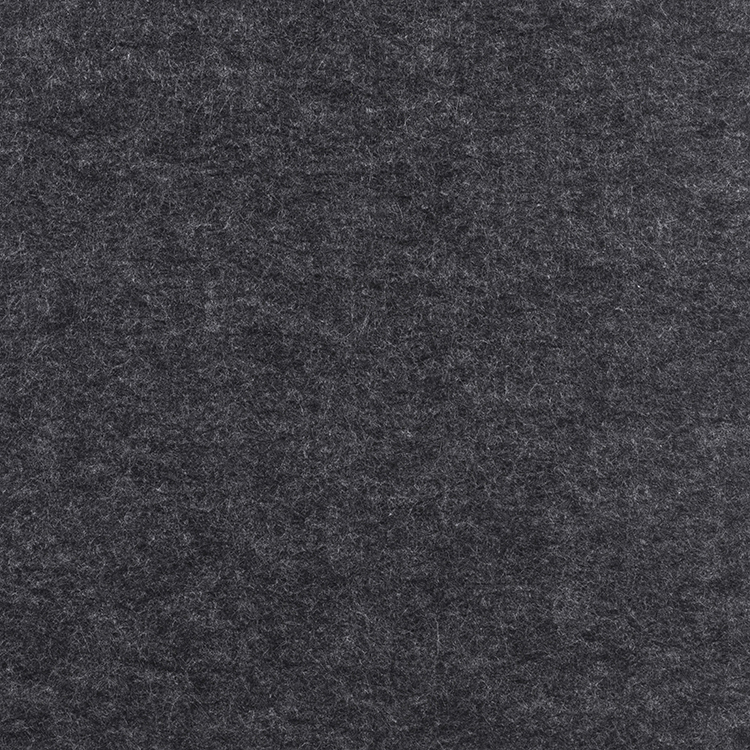

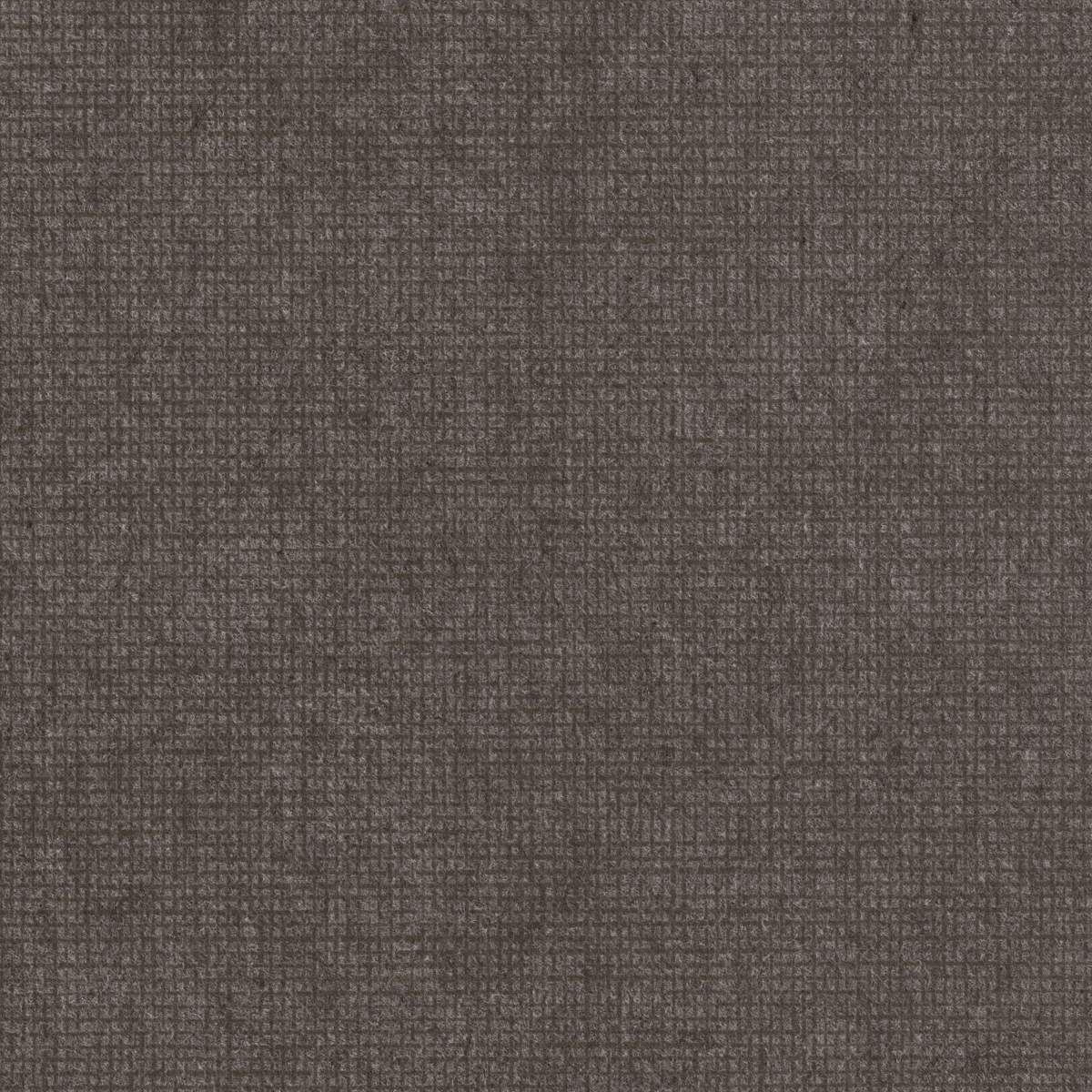

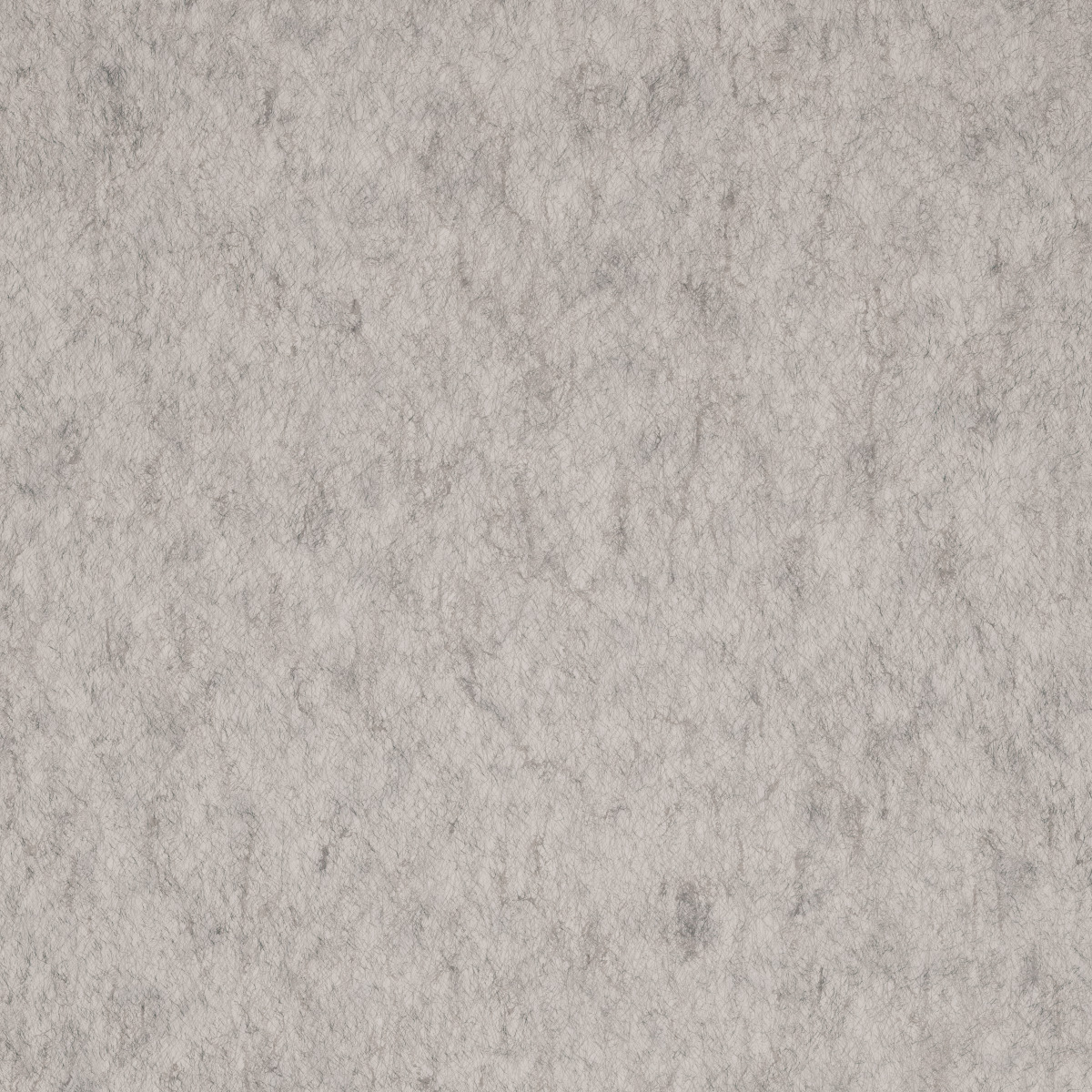

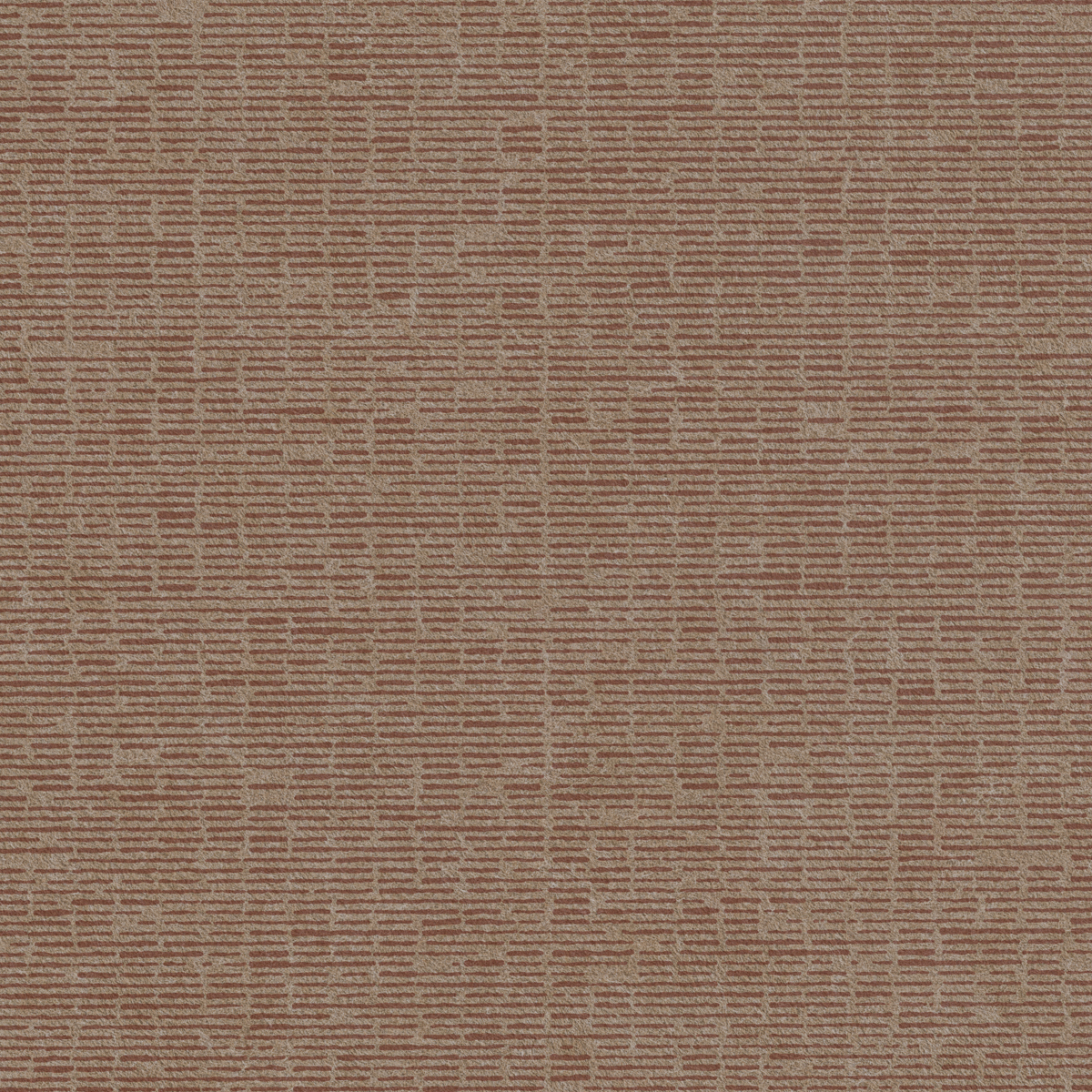

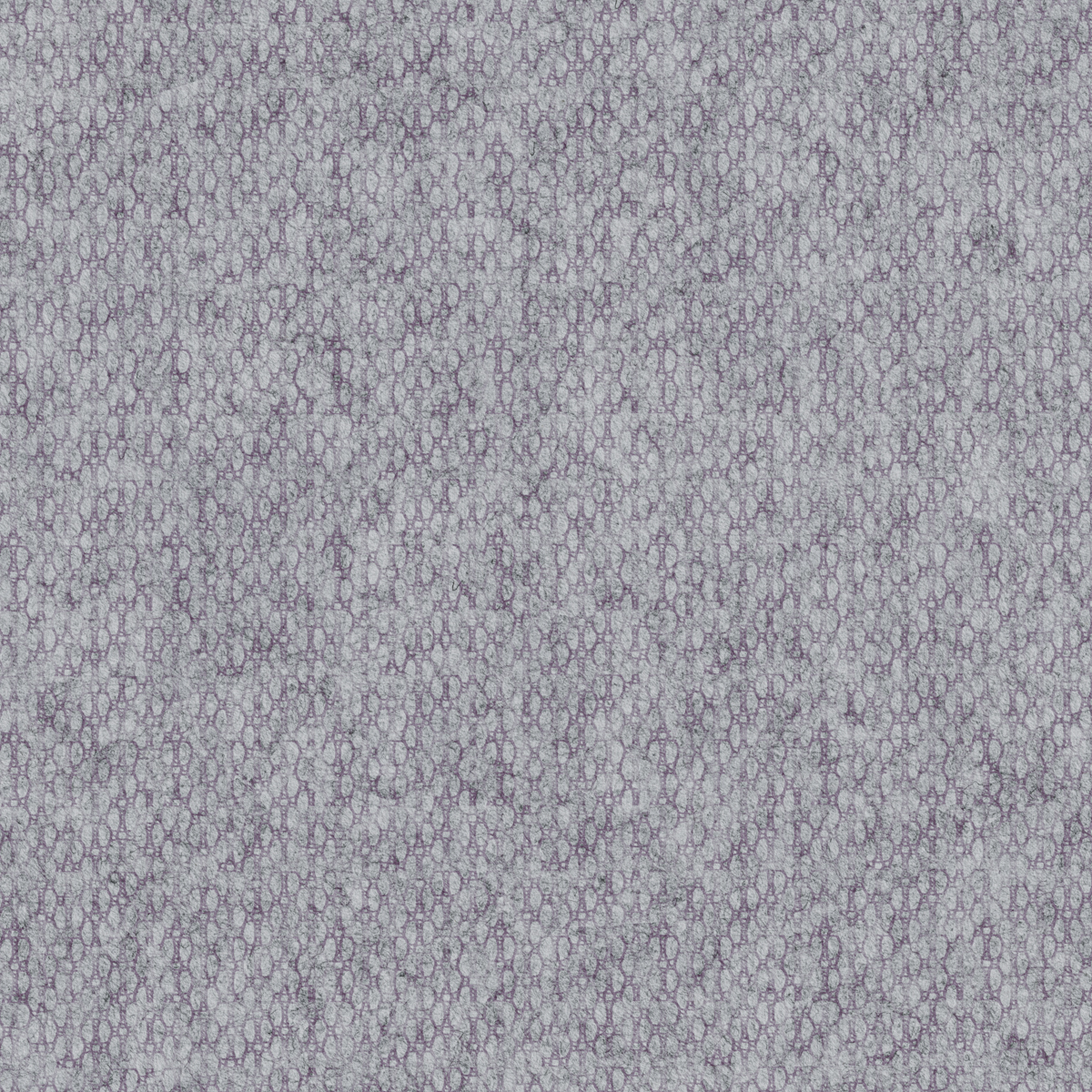

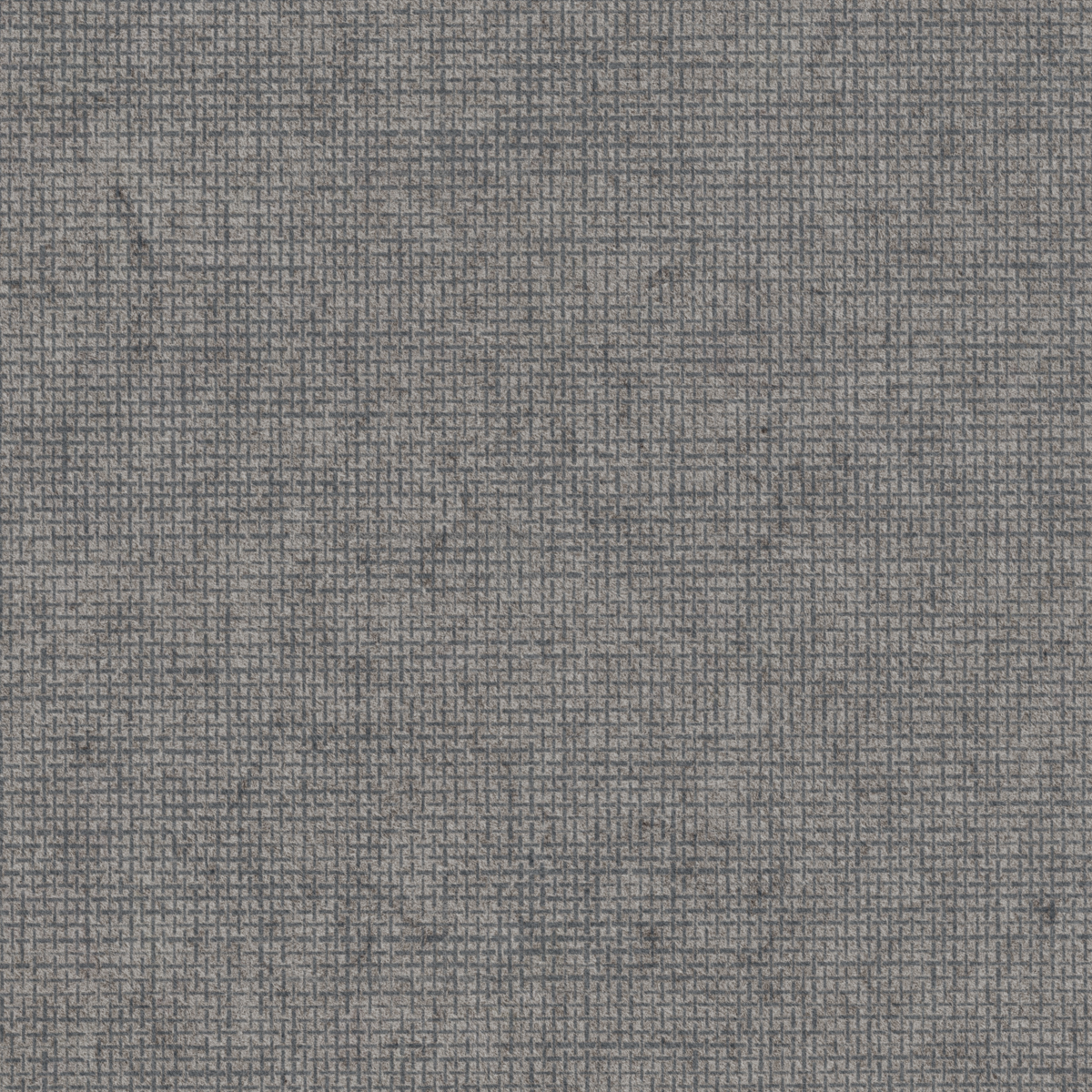

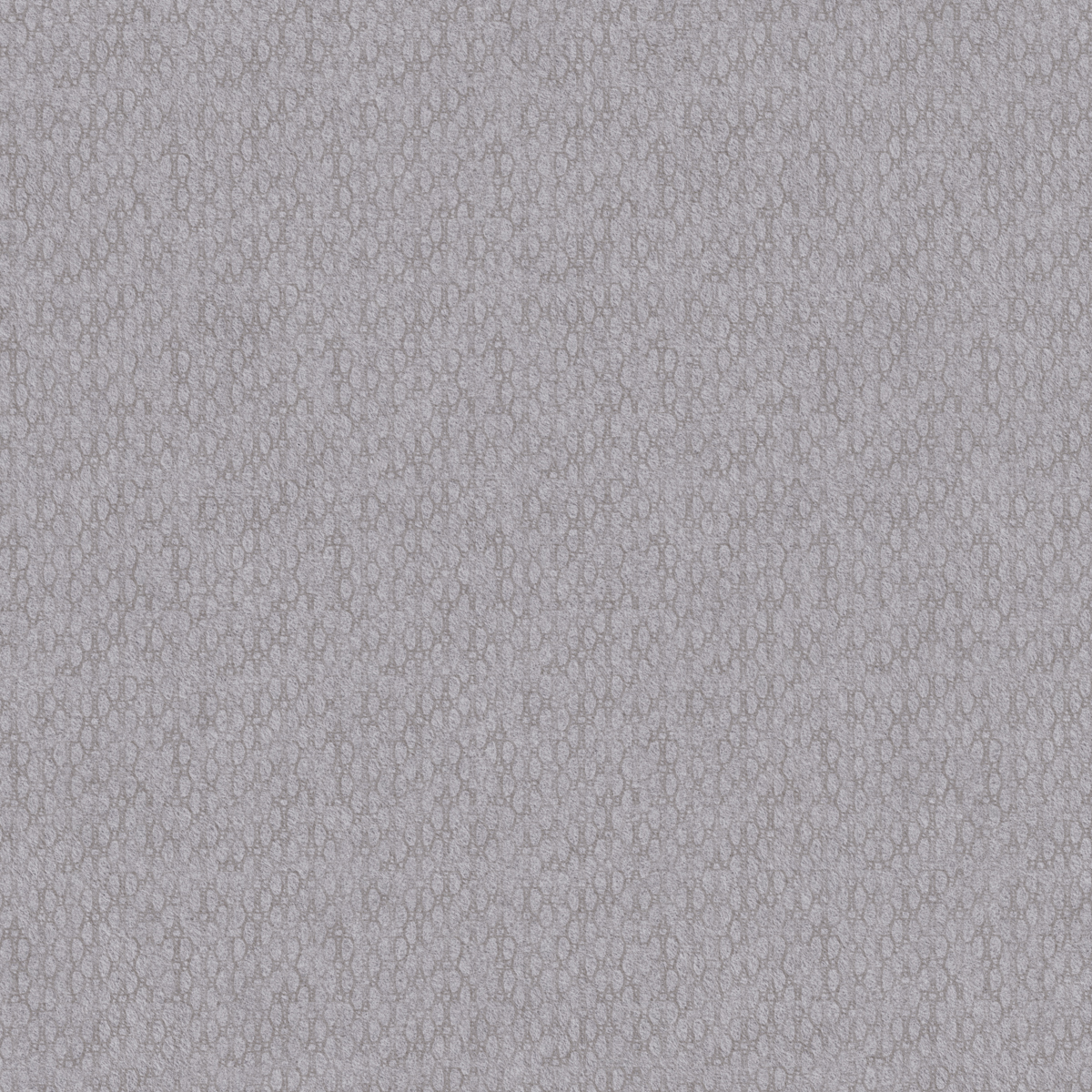

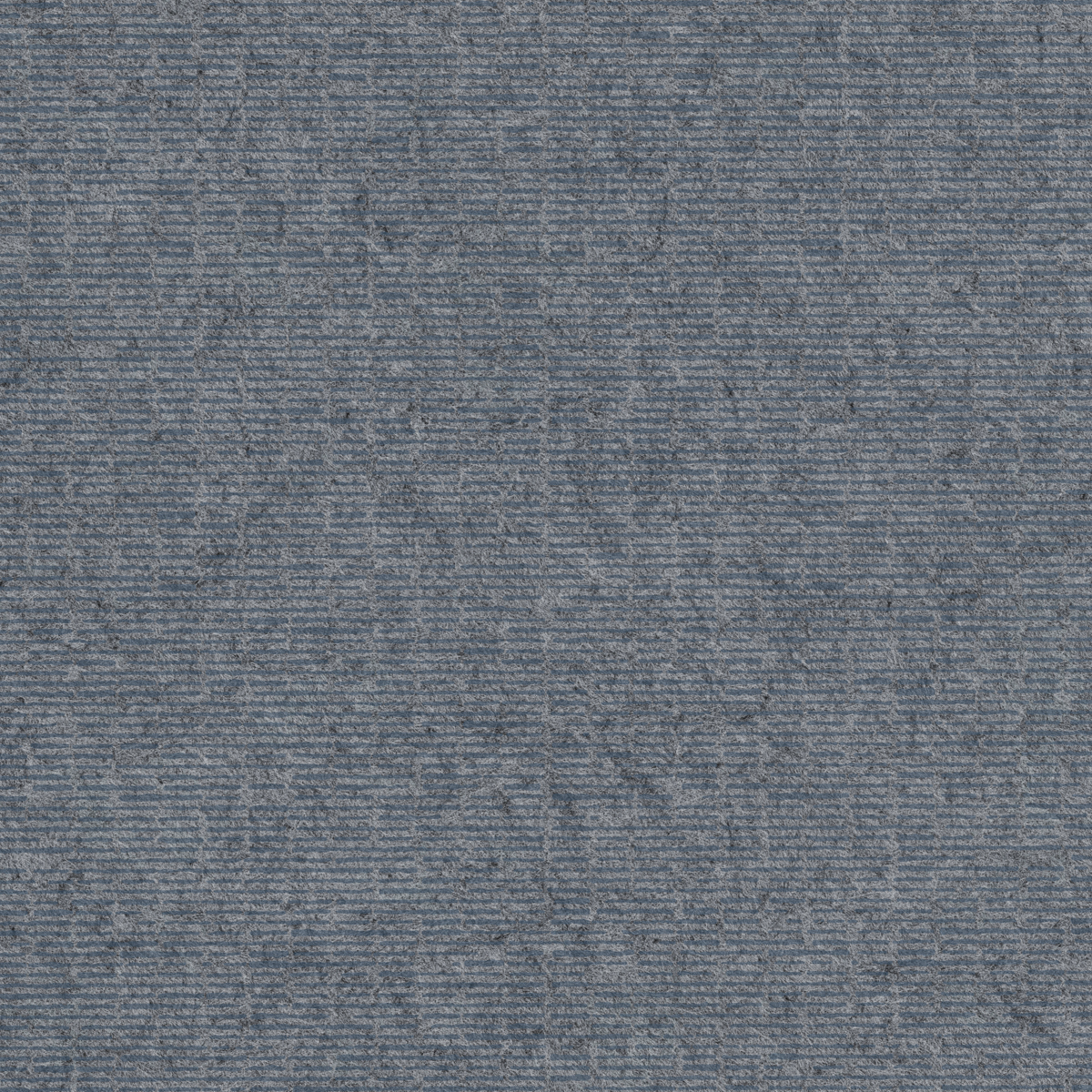

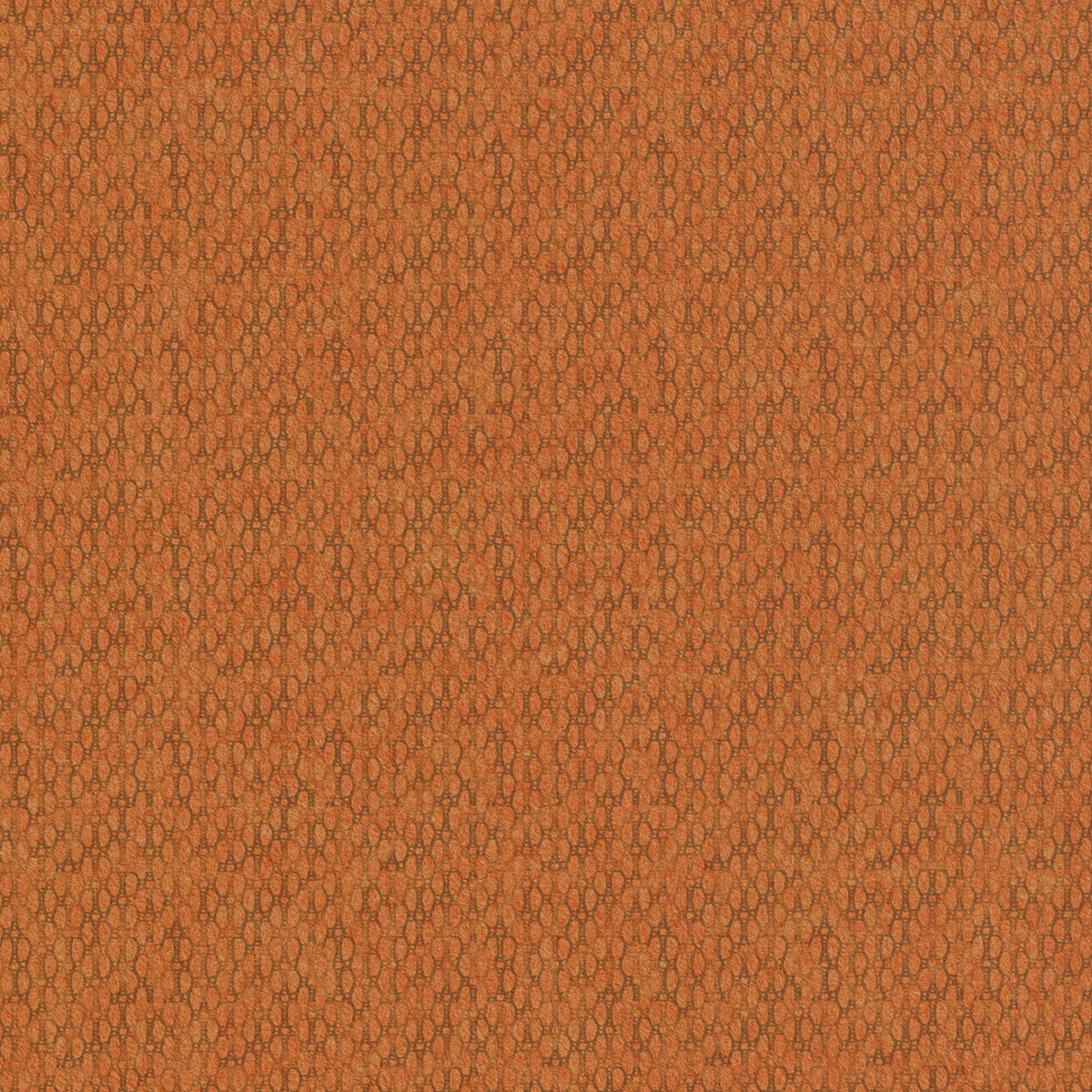

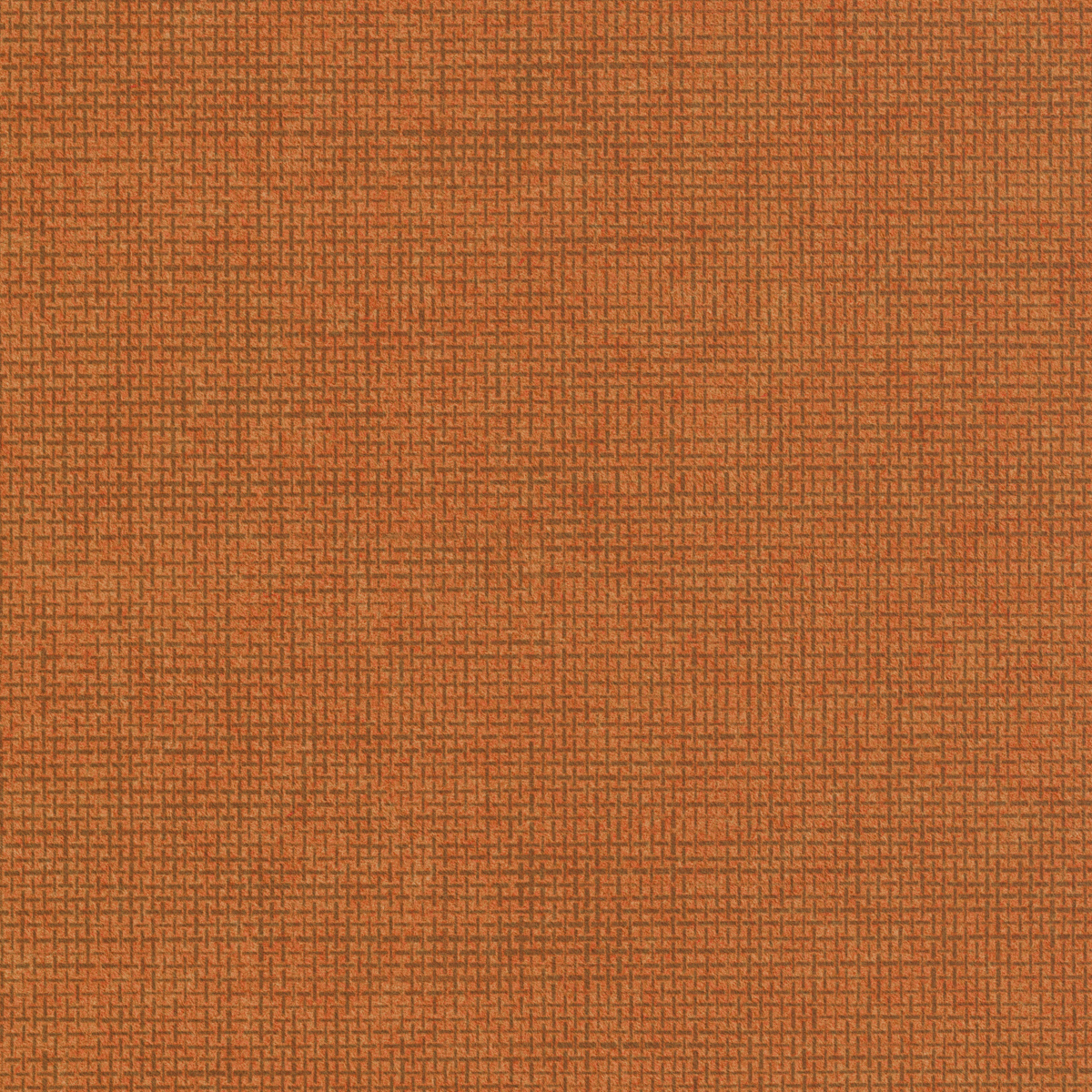

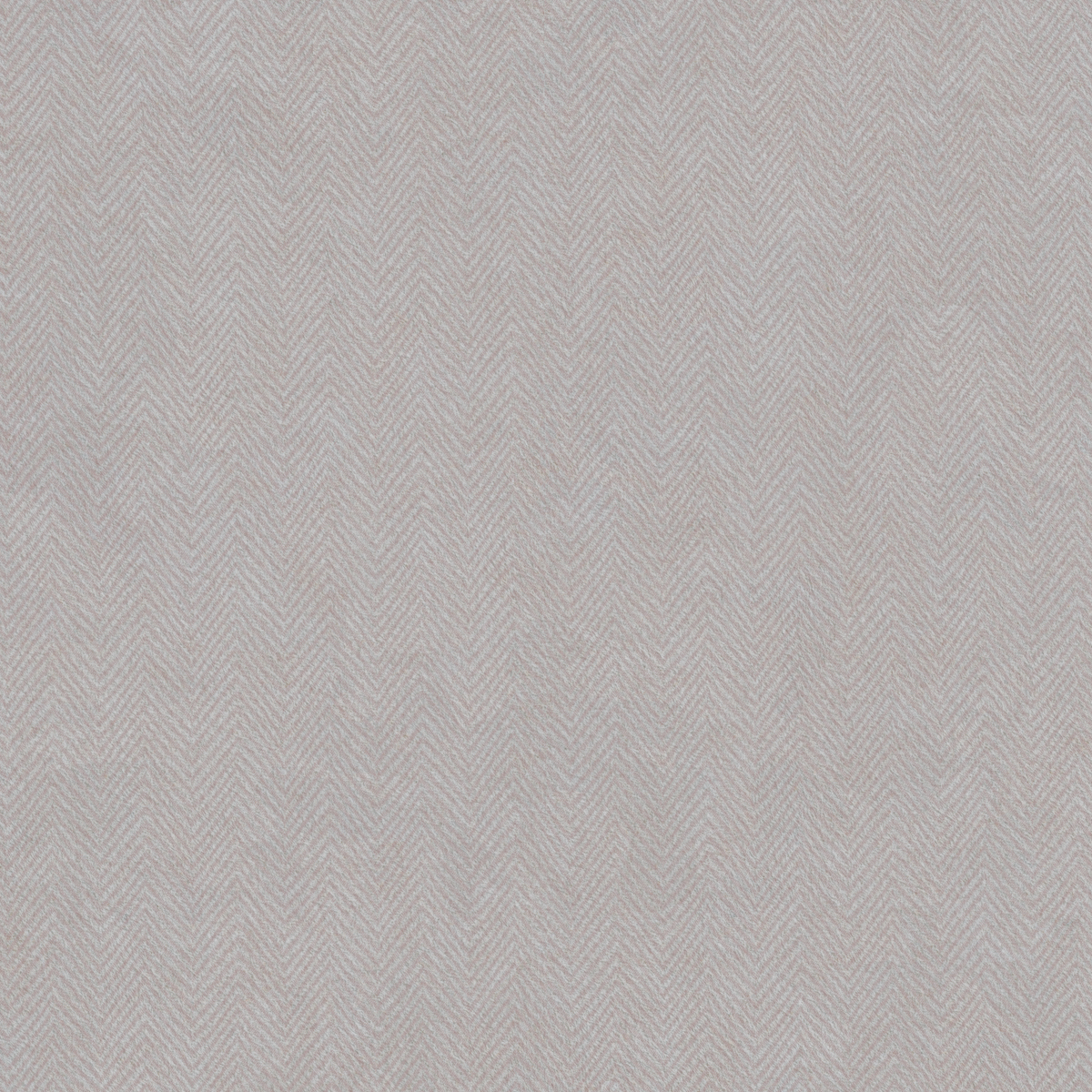

COLORS: 20 standard colors
ACOUSTIC RATING: 0.45-0.90 NRC
SIZE / THICKNESS
4’ x 9’ x ½” / 1220mm x 2745mm x 12mm
SURFACE FINISH: Matte
WEIGHT: 0.5 lb / ft² / 2.4 kg - 4.8 kg / m²
COLORS: 20 standard colors
APPLICATION: Indoor areas only
FABRICATION: Utility knife or CNC with oscillating blade
INSTALLATION: Adhere to substrate with silicon based construction adhesive. Attach with screws, Z-clips, nails, stand-offs, aluminum trim or millwork
FIRE RATING: In accordance with ASTM-E84, Zintra® Acoustic ½” Sheets achieve a Class A Fire Rating
COLORFASTNESS TO LIGHT: In accordance with AATCC 16.3 option 3 the color change at 20 AFU was 4.5
FABRICATION: Utility knife or CNC with oscillating blade
INSTALLATION: Adhere to substrate with silicon based construction adhesive. Attach with screws, Z-clips, nails, stand-offs, aluminum trim or millwork
FIRE RATING: In accordance with ASTM-E84, Zintra® Acoustic ½” Sheets achieve a Class A Fire Rating
COLORFASTNESS TO LIGHT: In accordance with AATCC 16.3 option 3 the color change at 20 AFU was 4.5
DOCUMENTS
- Cost effective sound absorbing solution ranging between 0.45-0.90 NRC
- 9’ long sheets ideal for joint-free floor to ceiling applications
- Broad range of neutral and bright colors
- Suitable for multiple applications – walls, ceilings, screens, partitions, millwork
- Easily fabricated and installed
- Color is uniform through entire thickness
- Tackable
