SPECIFICATIONS
CONTENT: 100% Polyester
ACOUSTIC RATING: 0.90 NRC
BAFFLE DEPTH: 5 ½” / 140mm or 10” / 254mm, Gorge Depth 12” / 305mm or 18” / 457mm
STANDARD SIZE: 4’ x 4’ / 1220mm x 1220mm & 4’ x 9’ / 1220mm x 2745mm
Gorge 4’ x 4’ / 1220mm x 1220mm & 4’ x 6’ / 1220mm x 1830mm
SPACING OPTIONS: 4.7”, 8”, or 12” Spacing on center
PACKAGE INCLUDES: Notched aluminum frame cross runners
Aluminum frame connectors & end caps.
Complete hanging hardware including 5’/ 1525 mm of aircraft wire and adjustable fastener.
Other lengths of aircraft wire are available for an additional charge
See Clouds Specification for detail.
ACOUSTIC RATING: 0.90 NRC
BAFFLE DEPTH: 5 ½” / 140mm or 10” / 254mm, Gorge Depth 12” / 305mm or 18” / 457mm
STANDARD SIZE: 4’ x 4’ / 1220mm x 1220mm & 4’ x 9’ / 1220mm x 2745mm
Gorge 4’ x 4’ / 1220mm x 1220mm & 4’ x 6’ / 1220mm x 1830mm
SPACING OPTIONS: 4.7”, 8”, or 12” Spacing on center
PACKAGE INCLUDES: Notched aluminum frame cross runners
Aluminum frame connectors & end caps.
Complete hanging hardware including 5’/ 1525 mm of aircraft wire and adjustable fastener.
Other lengths of aircraft wire are available for an additional charge
See Clouds Specification for detail.
HARDWARE COLORS: Frame – Clear Satin Aluminum or Black.
End-Caps – Black or White.
BAFFLE COLORS: 20 standard colors
BAFFLE THICKNESS: ½” / 12mm
INSTALLATION: Install pre-cut Zintra® Acoustic ½’ lengths on to frame.
Install frame direct to ceiling substrate or hang via aircraft wire (provided).
FIRE RATING: In accordance with ASTM-E84, Zintra® Acoustic ½” Panels achieve a Class A Fire Rating
CARE INSTRUCTIONS: Vacuum to remove dust
Remove spills immediately using a clean damp cloth or with soap and water.
Carpet and fabric cleaners can be used – always test an inconspicuous area first.
Stain repellant coating available for additional protection.
End-Caps – Black or White.
BAFFLE COLORS: 20 standard colors
BAFFLE THICKNESS: ½” / 12mm
INSTALLATION: Install pre-cut Zintra® Acoustic ½’ lengths on to frame.
Install frame direct to ceiling substrate or hang via aircraft wire (provided).
FIRE RATING: In accordance with ASTM-E84, Zintra® Acoustic ½” Panels achieve a Class A Fire Rating
CARE INSTRUCTIONS: Vacuum to remove dust
Remove spills immediately using a clean damp cloth or with soap and water.
Carpet and fabric cleaners can be used – always test an inconspicuous area first.
Stain repellant coating available for additional protection.
DOCUMENTS

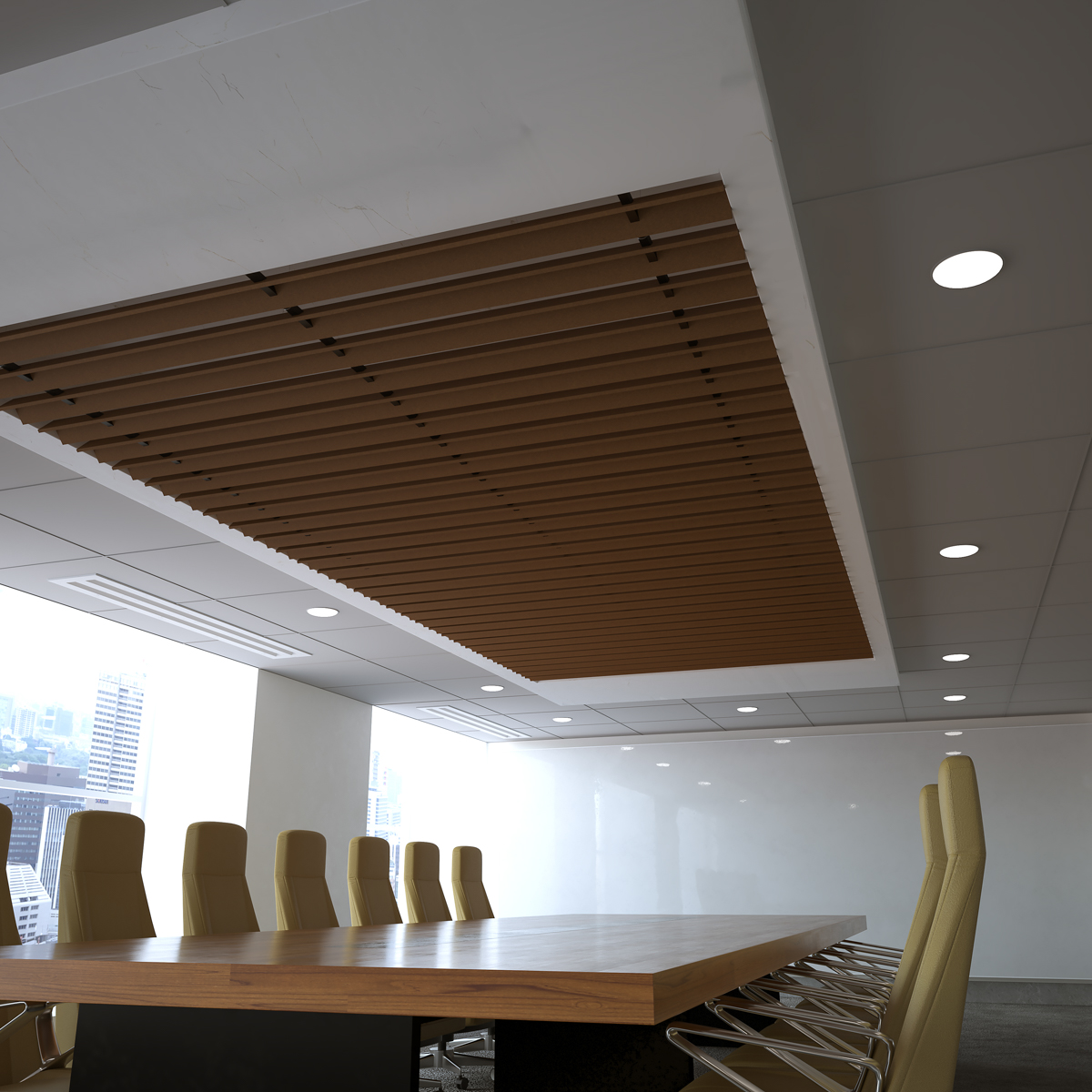

- Comes complete with hardware to install Zintra® Acoustic ½” baffles
- NRC = 0.9
- Customizable size, baffle spacing and baffle depth
- Creates a unique texture and aesthetic for ceilings
- Create custom designs and shapes
- Flat packed for cost effective transport
