SPECIFICATIONS
CONTENT: 100% Polyester
ACOUSTIC RATING: 0.45-0.90 NRC
PANEL SIZE / THICKNESS
2' x 2' x 1" / 610mm x 610mm x 24mm
2' x 4' x 1" / 610mm x 1220mm x 24mm
4' x 9' x 1" / 1220mm x 2745mm x 24mm
PATTERN ONLY: ½" (12mm) thick
SURFACE FINISH: Matte
WEIGHT: 0.5 lb / ft² / 2.4 kg - 4.8 kg / m² (depending on design)
COLORS: 20 standard colors
ACOUSTIC RATING: 0.45-0.90 NRC
PANEL SIZE / THICKNESS
2' x 2' x 1" / 610mm x 610mm x 24mm
2' x 4' x 1" / 610mm x 1220mm x 24mm
4' x 9' x 1" / 1220mm x 2745mm x 24mm
PATTERN ONLY: ½" (12mm) thick
SURFACE FINISH: Matte
WEIGHT: 0.5 lb / ft² / 2.4 kg - 4.8 kg / m² (depending on design)
COLORS: 20 standard colors
APPLICATION: Indoor areas only
FABRICATION: Utility knife, CNC with oscillating blade, jig saw, or table saw. To be used for cutting around obsticles only. Panel sizing should be handled by the production facility.
FIRE RATING: In accordance with ASTM-E84, Zintra® Acoustic ½" and Zintra Pattern on Zintra achieve a Class A Fire Rating
FABRICATION: Utility knife, CNC with oscillating blade, jig saw, or table saw. To be used for cutting around obsticles only. Panel sizing should be handled by the production facility.
FIRE RATING: In accordance with ASTM-E84, Zintra® Acoustic ½" and Zintra Pattern on Zintra achieve a Class A Fire Rating
DOCUMENTS
Find style, texture, contrast and depth with the added benefit of sound absorption and sound refraction to create a harmonious environment.
- NRC = 0.45 - 0.95 depending on design and installation method
- Use as pattern layer only or the pattern layer with Zintra® Acoustic ½” backing
- Easy installation using Z-clips, adhesive or other mechanical mounting methods
- Tone-on-tone or two tone color combinations
- Ability to easily customize design for specific project requirements

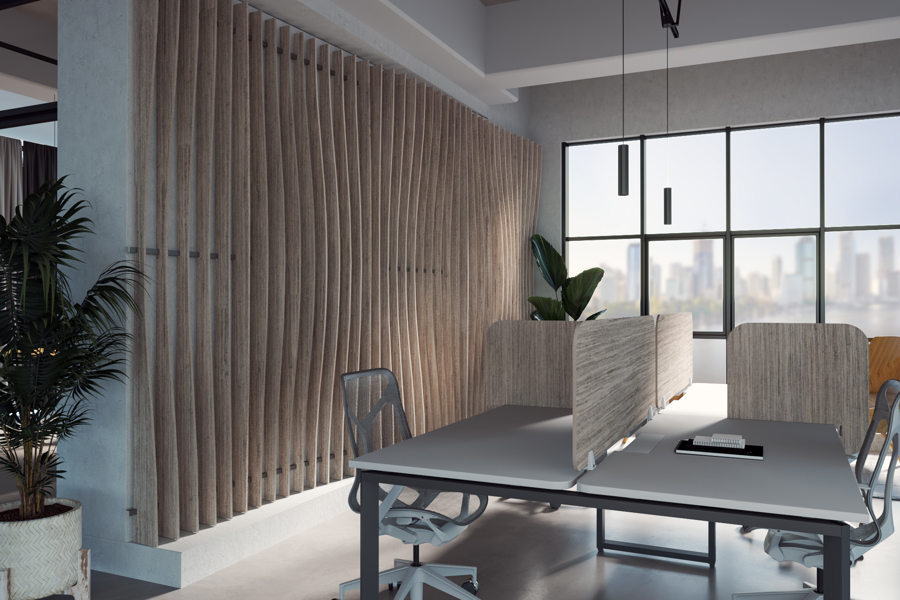

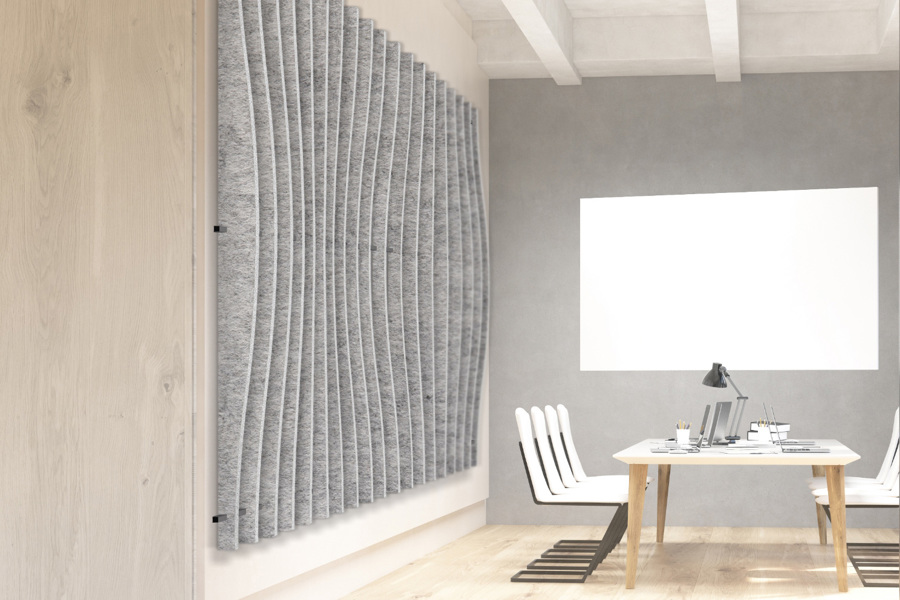

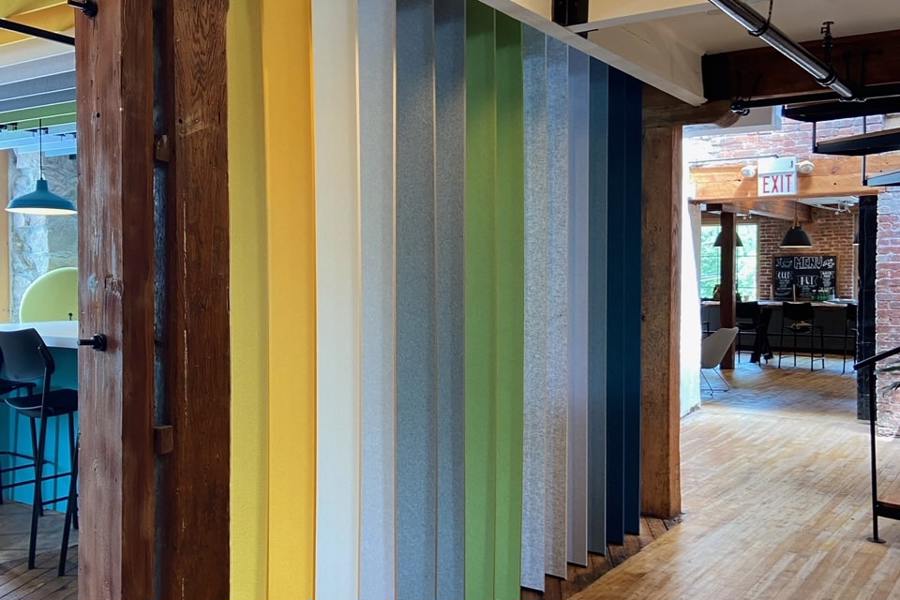

- Apply directly to walls or ceilings or use as room dividers
